Loop Protection
Please note that Loop Protection cannot be used in conjunction with ERPS or STP/RSTP/MSTP on
the same switch.

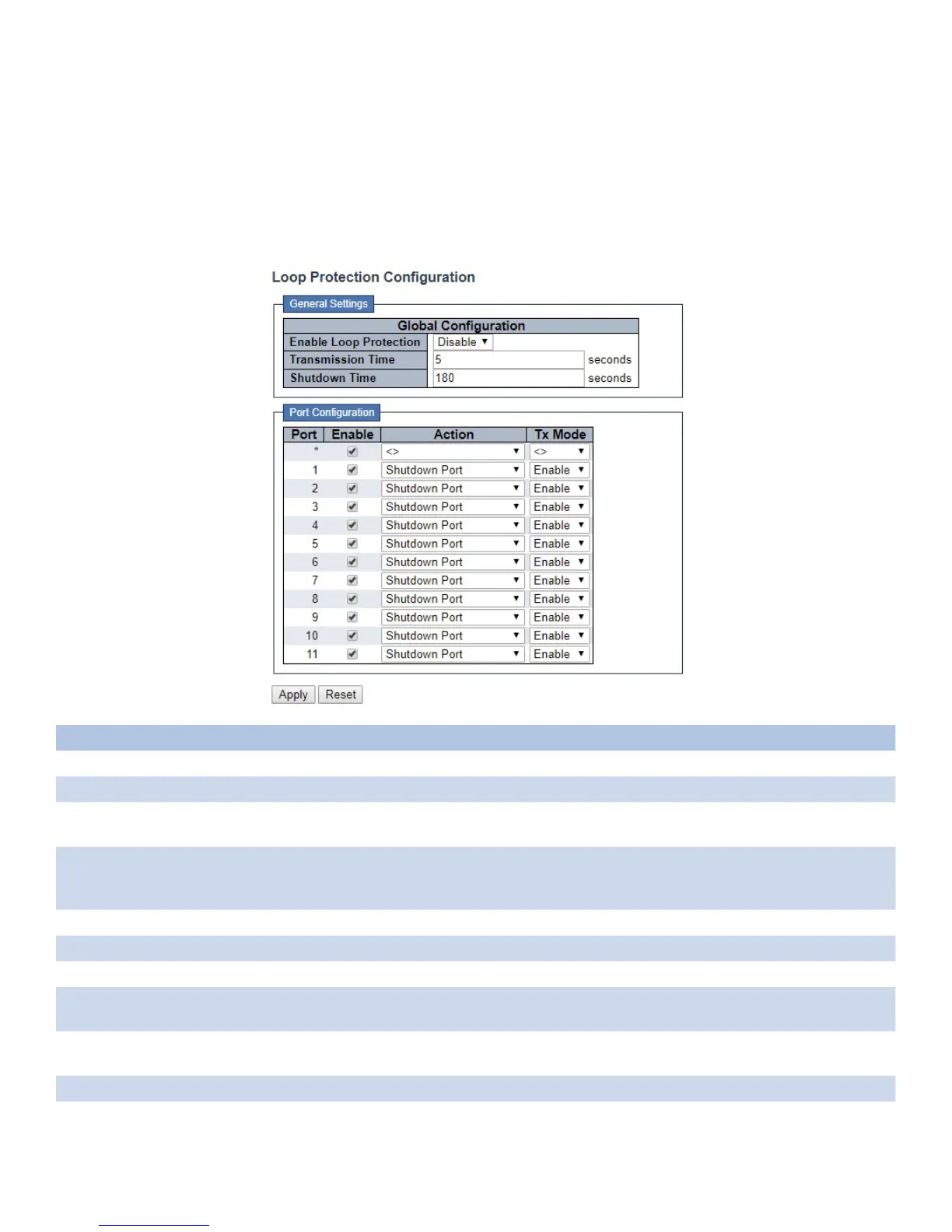

This page allows the user to inspect the current Loop Protection configurations and possibly
change them as well.
Object Description
General Settings
Enable Loop Protection Controls whether loop protections is enabled (as a whole).
Transmission Time The interval between each loop protection PDU sent on each port, valid values are 1 to 10
seconds.
Shutdown Time The period (in seconds) for which a port will be kept disabled in the event of a loop is
detected (and the port action shuts down the port). Valid values are 0 to 604800 seconds (7
days). A value of zero will keep a port disabled (until next device restart).
Port Configuration
Port The switch port number of the port.
Enable Controls whether loop protection is enabled on this switch port.
Action Configures the action performed when a loop is detected on a port. Valid values are
Shutdown Port, Shutdown Port and Log or Log Only.
Tx Mode Controls whether the port is actively generating loop protection PDU’s, or whether it is just
passively looking for looped PDU’s.
Apply Click to apply changes.
