LLDP
LLDP

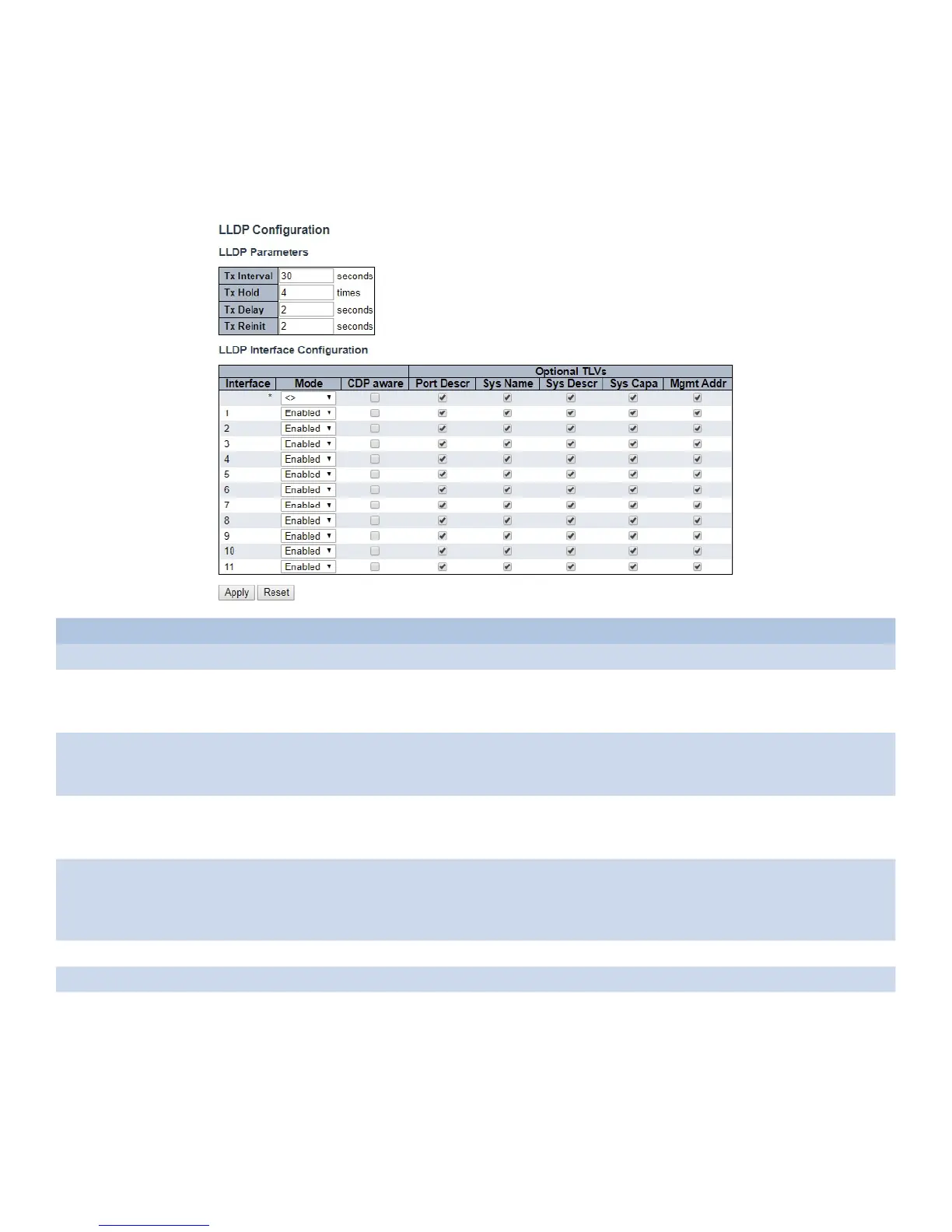

This page allows the user to inspect and configure the current LLDP port setting.
Object Description
LLDP Parameters
Tx Interval The switch periodically transmits LLDP frames to its neighbors for having the network discovery
information up-to-date. The interval between each LLDP frame is determined by the Tx Interval
value. Valid values are restricted to 5 - 32768 seconds.
Tx Hold Each LLDP frame contains information about how long the information in the LLDP frame shall
be considered valid. The LLDP information valid period is set to Tx Hold multiplied by Tx Interval
seconds. Valid values are restricted to 2 - 10 times.
Tx Delay If some configuration is changed (e.g. the IP address) a new LLDP frame is transmitted, but the time
between the LLDP frames will always be at least the value of Tx Delay seconds. Tx Delay cannot be
larger than 1/4 of the Tx Interval value. Valid values are restricted to 1 - 8192 seconds.
Tx Reinit When a port is disabled, LLDP is disabled or the switch is rebooted, an LLDP shutdown frame is
transmitted to the neighboring units, signaling that the LLDP information isn’t valid anymore. Tx
Reinit controls the amount of seconds between the shutdown frame and a new LLDP initialization.
Valid values are restricted to 1 - 10 seconds.
LLDP Port Parameters
Interface The switch port number of the logical LLDP port.
