INS_CNGE3FE8MS[POE][HO] Rev. 11.7.17 PAGE 26
INSTRUCTION MANUAL CNGE3FE8MS[POE][HO]
TECH SUPPORT: 1.888.678.9427

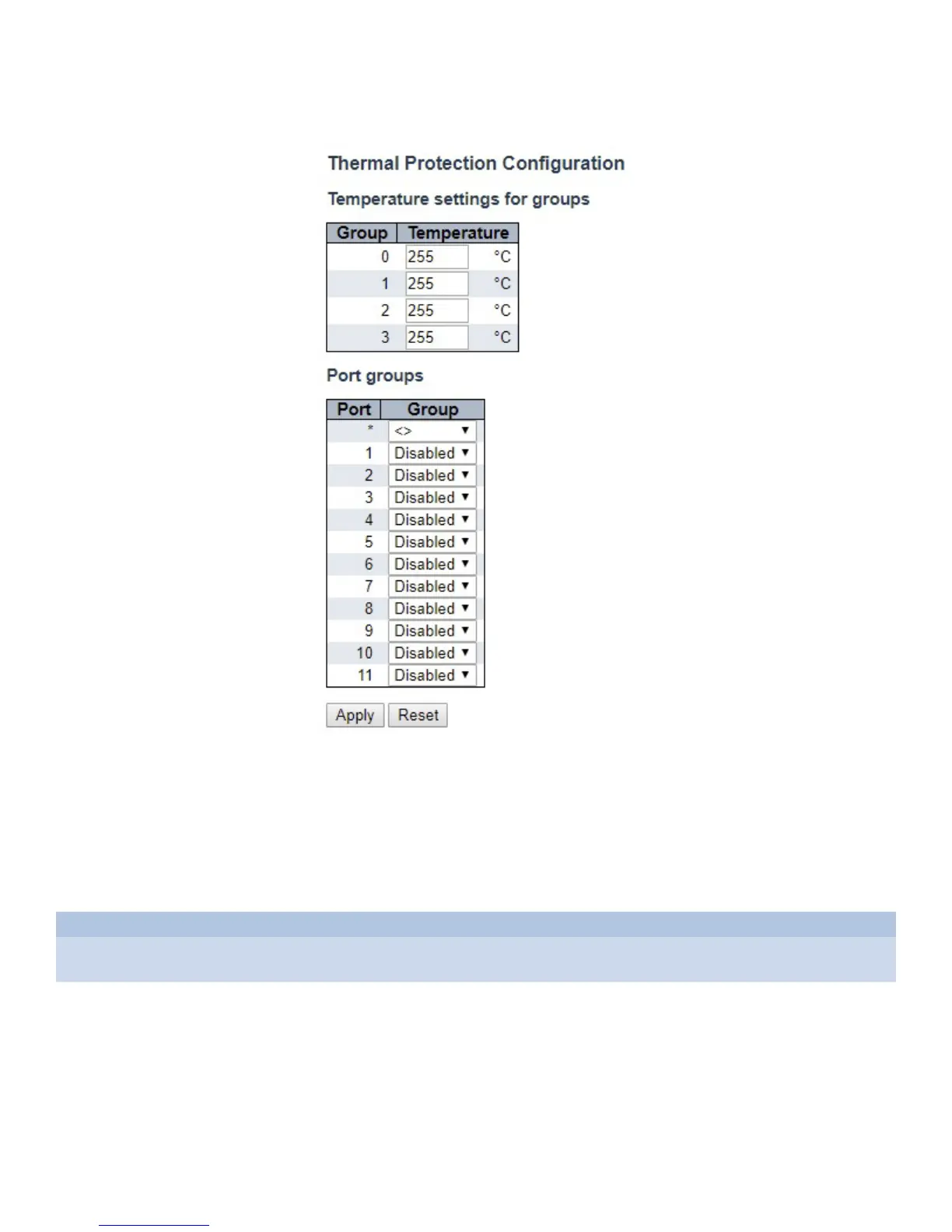

Thermal Protection
This page allows the user to inspect and configure the current setting for controlling thermal
protection. Thermal protection is used to protect the chip from getting overheated.
When the temperature exceeds the configured thermal protection temperature, ports will be
turned off in order to decrease the power consumption. It is possible to arrange the ports with
different groups. Each group can be given a temperature at which the corresponding ports shall
be turned off.
Object Description
Temperature The temperature at which the ports with the corresponding group will be turned off.
Temperatures between 0 and 255 C are supported.
Group The group the port belongs to. 4 groups are supported.
