Spanning Tree
Bridge Status

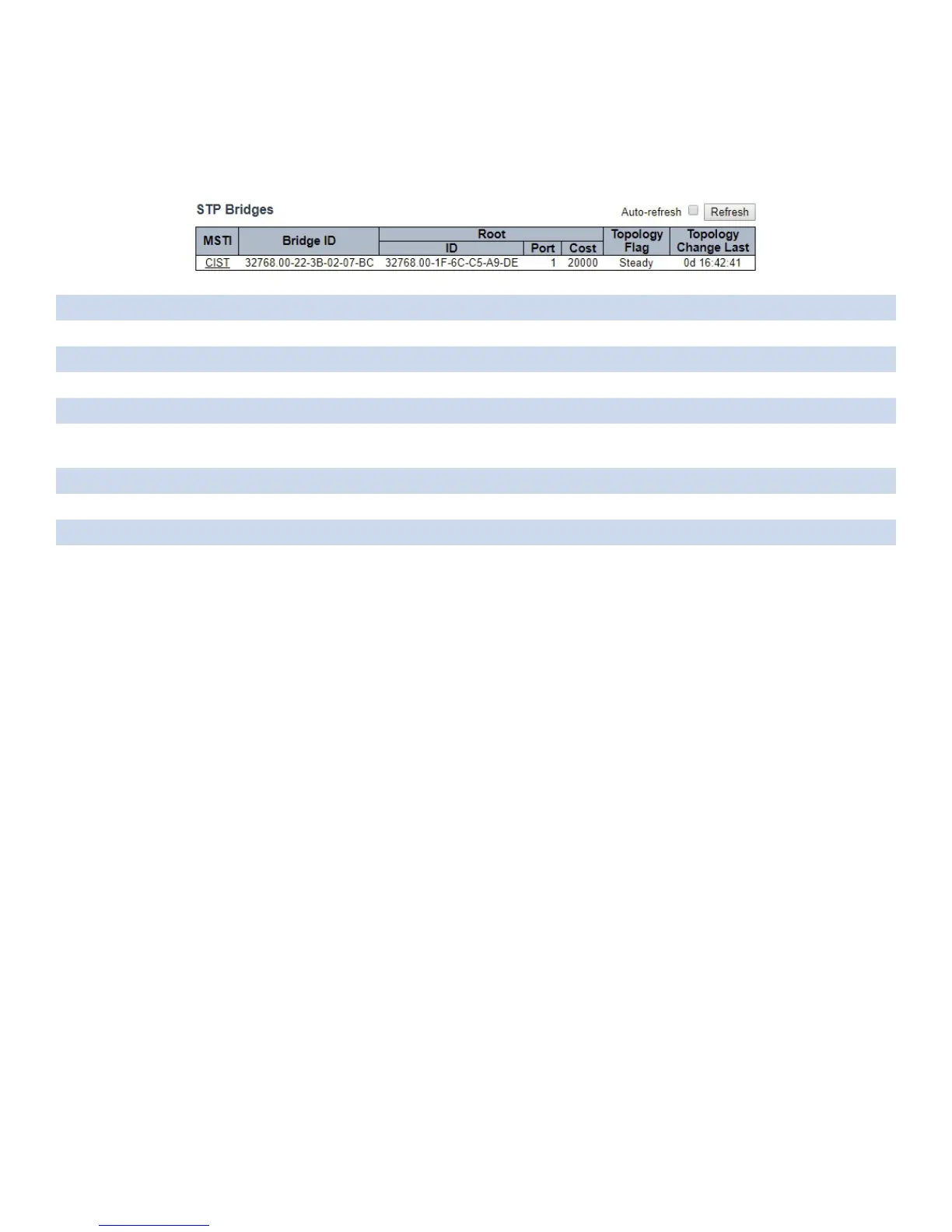

This page provides a status overview of all STP bridge instances.
Object Description
MSTI The Bridge Instance. This is also a link to the STP Detailed Bridge Status.
Bridge ID The Bridge ID of this Bridge instance.
Root ID The Bridge ID of the currently elected root bridge.
Root Port The switch port currently assigned the root port role.
Root Cost Root Path Cost. For the Root Bridge it is zero. For all other Bridges, it is the sum of the Port
Path Costs on the least cost path to the Root Bridge.
Topology Flag The current state of the Topology Change Flag of this Bridge instance.
Topology Change Last The time since last Topology Change occurred.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the displayed table starting from the input fields.
