INS_CNGE3FE8MS[POE][HO] Rev. 11.7.17 PAGE 183
INSTRUCTION MANUAL CNGE3FE8MS[POE][HO]
TECH SUPPORT: 1.888.678.9427

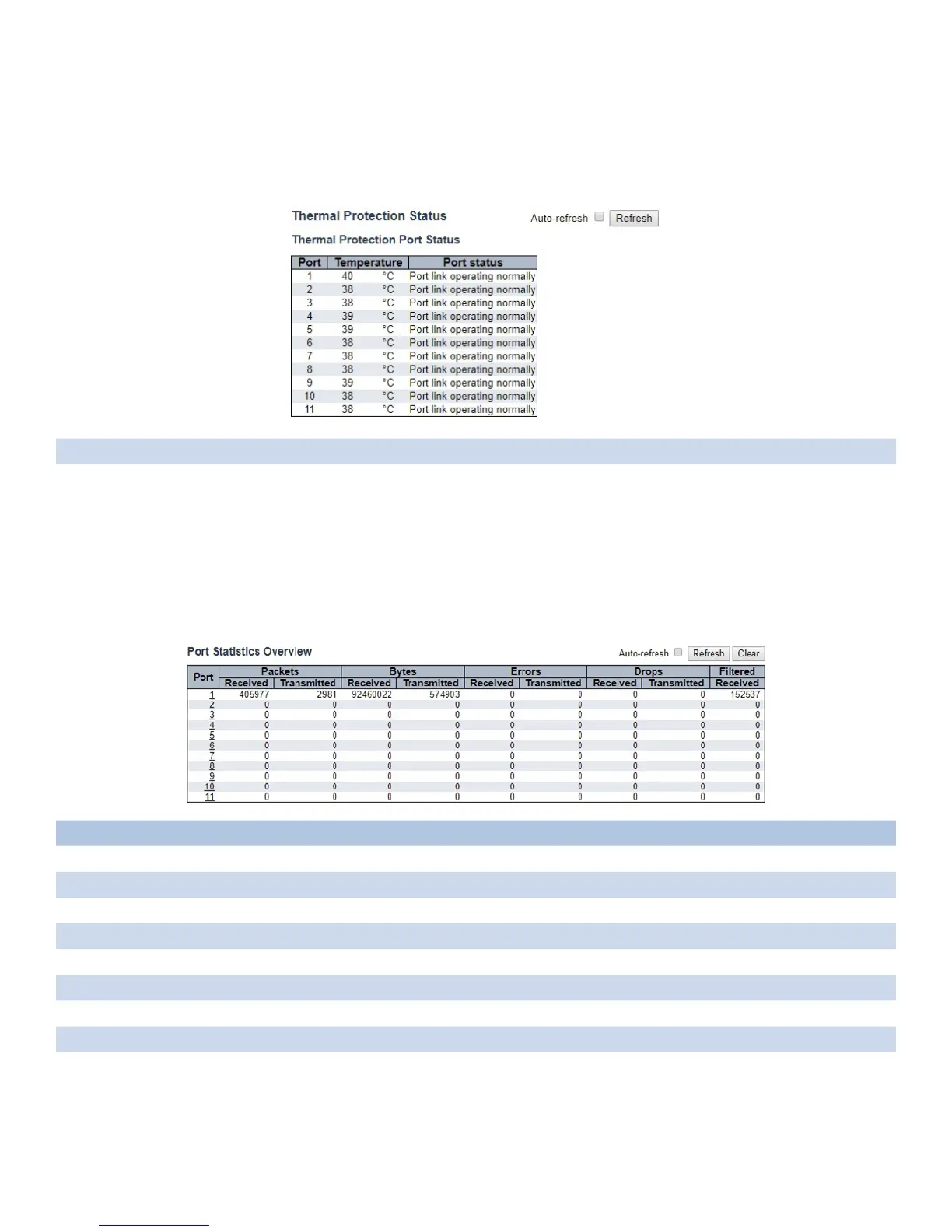

Thermal Protection
This page shows thermal status of the switch. The thermal settings are configured in Configuration
¦ Thermal Protection
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh screen without Auto_refresh.
Ports
Traffic Overview
This page provides an overview of general traffic statistics for all switch ports.
Object Description
Port The logical port for the settings contained in the same row.
Packet The number of received and transmitted packets per port.
Bytes The number of received and transmitted bytes per port.
Errors The number of frames received in error and the number of incomplete transmissions per port.
Drops The number of frames discarded due to ingress or egress congestion.
Filtered The number of received frames filtered by the forwarding process.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the page.
Clear Click to clear the counters for all ports.
