VLAN Translation
Port to Group Configuration

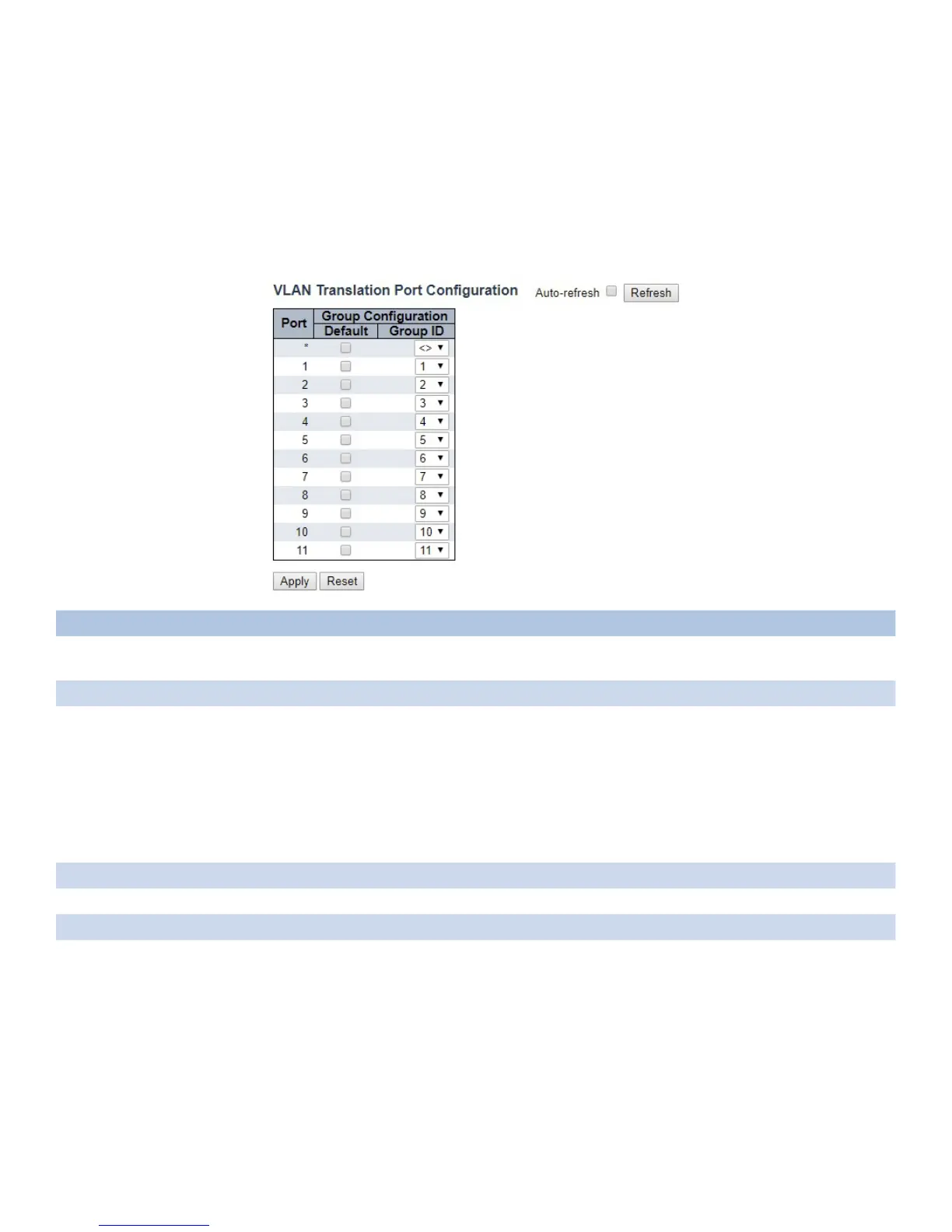

This page allows you to configure switch Ports to use a given VLAN Translation Mapping Group.
This will enable all VLAN Translation mappings of that group (if any) on the selected switch port.
The settings relate to the currently selected stack unit, as reflected by the page header.
Object Description
Port The Port column shows the list of ports for which you can configure the VLAN Translation Mapping
Group.
Default To set the switch port to use the default VLAN Translation Group click the checkbox. Click “Apply”.
Group ID The VLAN Translation mappings are organized into Groups, identified by the Group ID. This way a
port is configured to use a number of VLAN Translation mappings easily by simply configuring it
to use a given group. Then number of possible groups in a switch is equal to the number of ports
present in this switch. A port can be configured to use any of the groups, but only one at any given
time. Multiple ports can be configured to use the same group. A valid Group ID is an integer value
from 1 to 1111.
Note: By default, each port is set to use the group with Group ID equal to the port number. For
example, port #1 is by default set to use group with GID = 1.
Auto-refresh Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
Refresh Click to refresh the page immediately.
Apply Click to apply changes.
Reset Click to undo any changes made locally and revert to the previously saved values.
