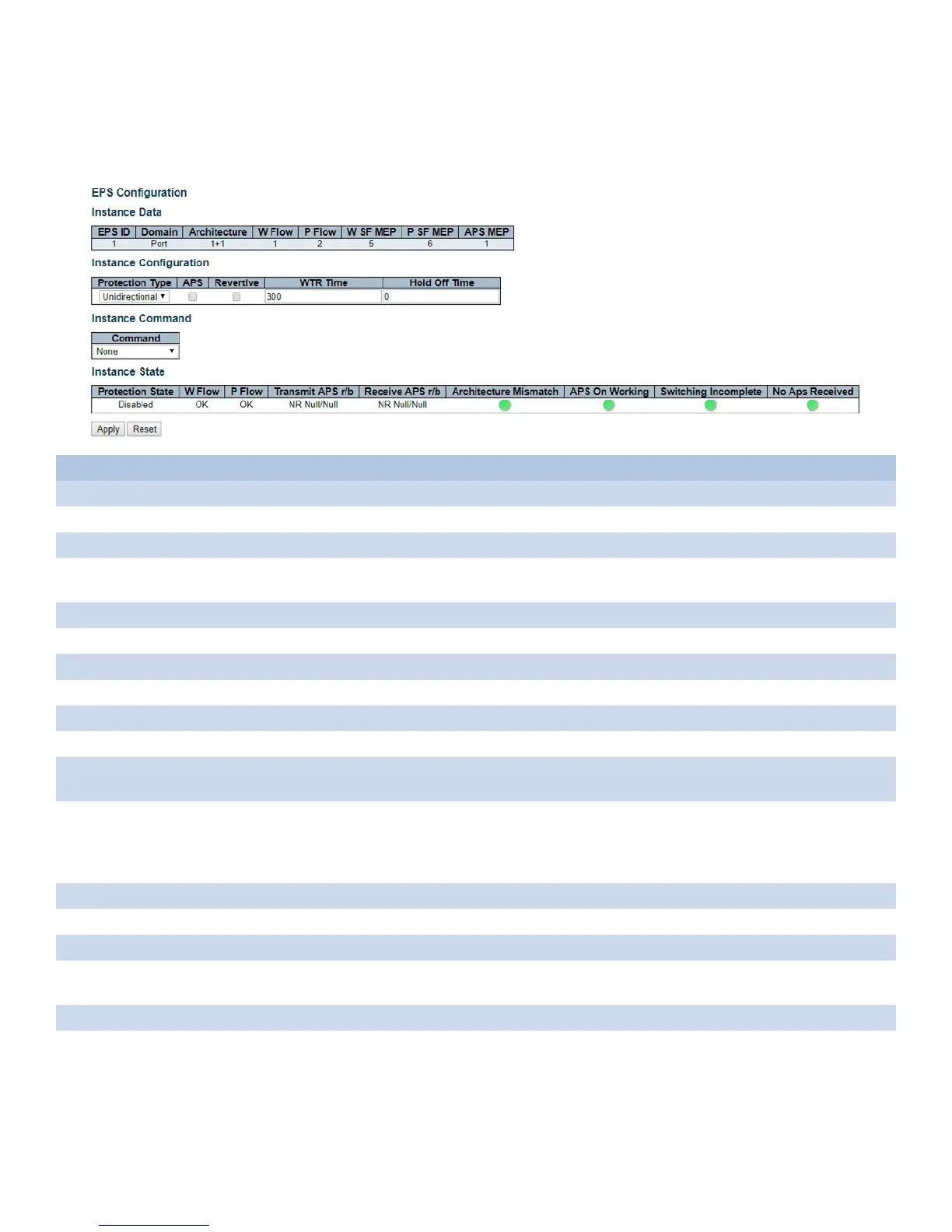

Ethernet Protection Switch Configuration
This page allows the user to inspect and configure the current EPS Instance.
Object Description
Instance Data
EPS ID The ID of the EPS. Click on the ID of an EPS to enter the configuration page.
Domain Port: This will create a EPS in the Port Domain. ‘W/P Flow’ is a Port.
Architecture 1+1: This will create a 1+1 EPS.
1:1: This will create a 1:1 EPS.
W Flow The working flow for the EPS - See ‘Domain’.
P Flow The protecting flow for the EPS - See ‘Domain’.
W SF MEP The working Signal Fail reporting MEP.
P SF MEP The protecting Signal Fail reporting MEP.
APS MEP The APS PDU handling MEP.
Instance Configuration
Configured Red: This EPS is only created and has not yet been configured - is not active.
Green: This EPS is configured - is active.
Protection Type Unidirectional: EPS in the two ends can select traffic from different working/protecting flow. This
is only possible in case of 1+1.
Bidirectional: EPS in the two ends is selecting traffic from the same working/protecting flow. This
requires APS enabled. This is mandatory for 1:1
APS The Automatic Protection Switching protocol can be enabled/disabled. This is mandatory for 1:1.
Revertive The revertive switching to working flow can be enabled/disabled.
WTR Time The Wait To Restore timing value to be used in revertive switching. Range is 1 to 720 seconds.
Hold Off Time The timing value to be used to make persistent check on Signal Fail before switching. This is in
100 ms. and the max value is 100 (10 sec).
Instance Command
