GVRP
Global Configuration

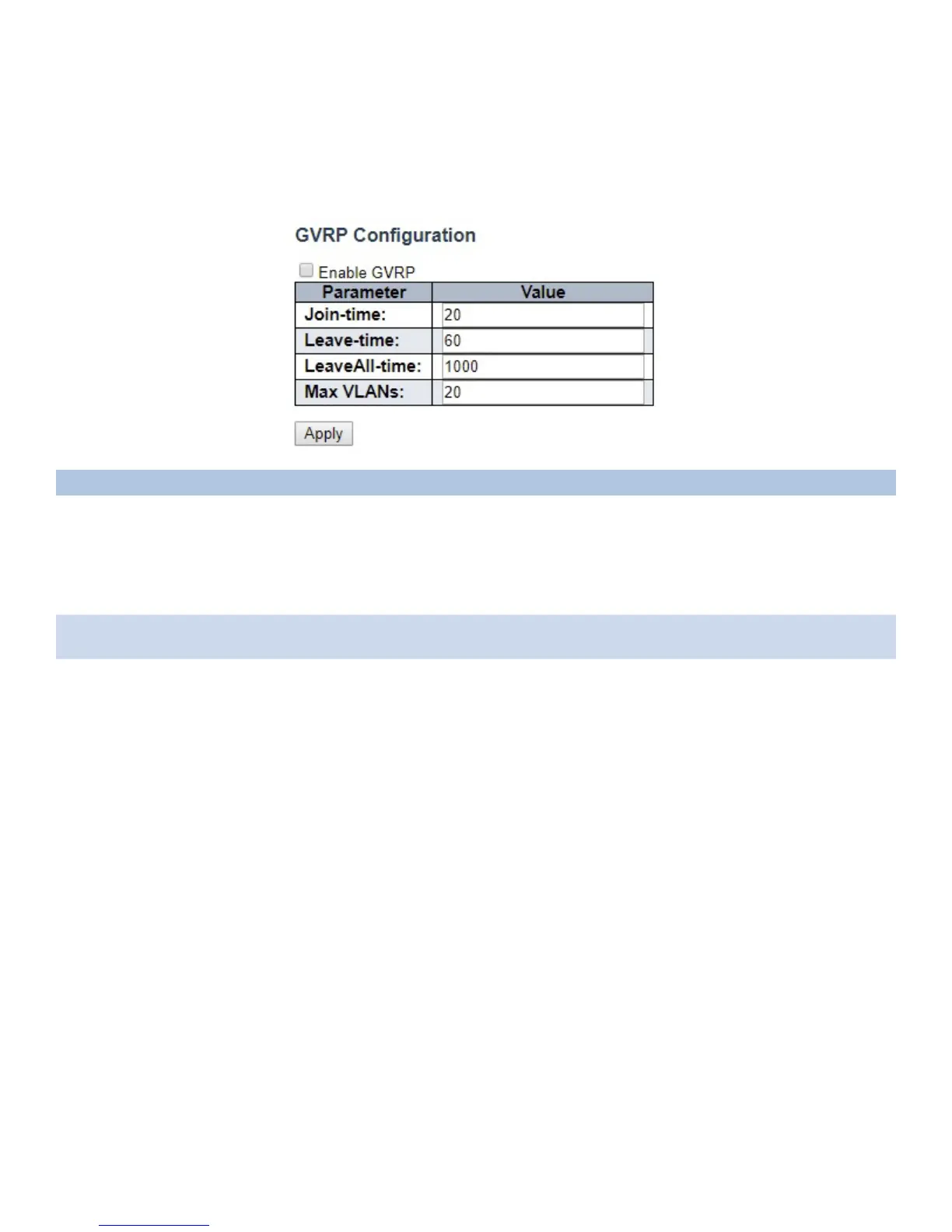

This page allows you to configure the basic GVRP Configuration settings for all switch ports.
Object Description
GVRP Protocol
timers
Join-time is a value in the range 1-20 in the units of centi seconds, i.e. in units of one hundredth of a
second. The default is 20.
Leave-time is a value in the range 60-300 in the units of centi seconds, i.e. in units of one hundredth
of a second. The default is 60.
Leave All-time is a value in the range 1000-5000 in the units of centi seconds, i.e. in units of one
hundredth of a second. The default is 1000.
Max number of
VLANs
When GVRP is enabled a maximum number of VLANs supported by GVRP is specified. By default
this number is 20. This number can only be changed when GVRP is turned off.
Apply Click to apply changes.
