Port Statistics

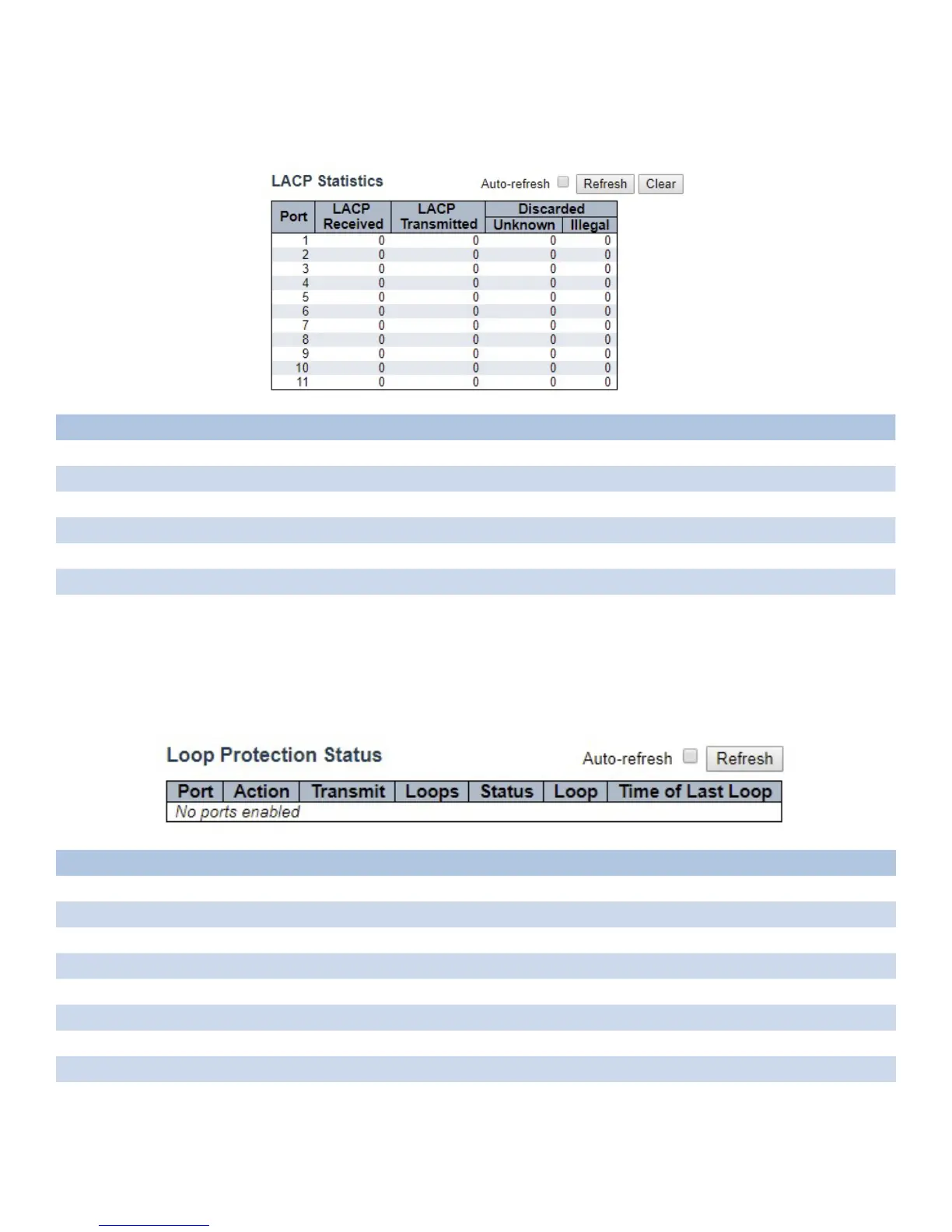

This page provides an overview for LACP statistics for all ports.
Object Description
Port The switch port number.
LACP Received Shows how many LACP frames have been received at each port.
LACP Transmitted Shows how many LACP frames have been sent from each port.
Discarded Shows how many unknown or illegal LACP frames have been discarded at each port.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the displayed table starting from the input fields.
Clear Click to Clear the counters for all ports.
Loop Protection
This page displays the loop protection port status the ports of the switch.
Object Description
Port The switch port number of the logical port.
Action The currently configured port action.
Transmit The currently configured port transmit mode.
Loops The number of loops detected on this port.
Status The current loop protection status of the port.
Loop Whether a loop is currently detected on the port.
Time of Last Loop The time of the last loop event detected.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the displayed table starting from the input fields.
To Next Page
