Port shaping

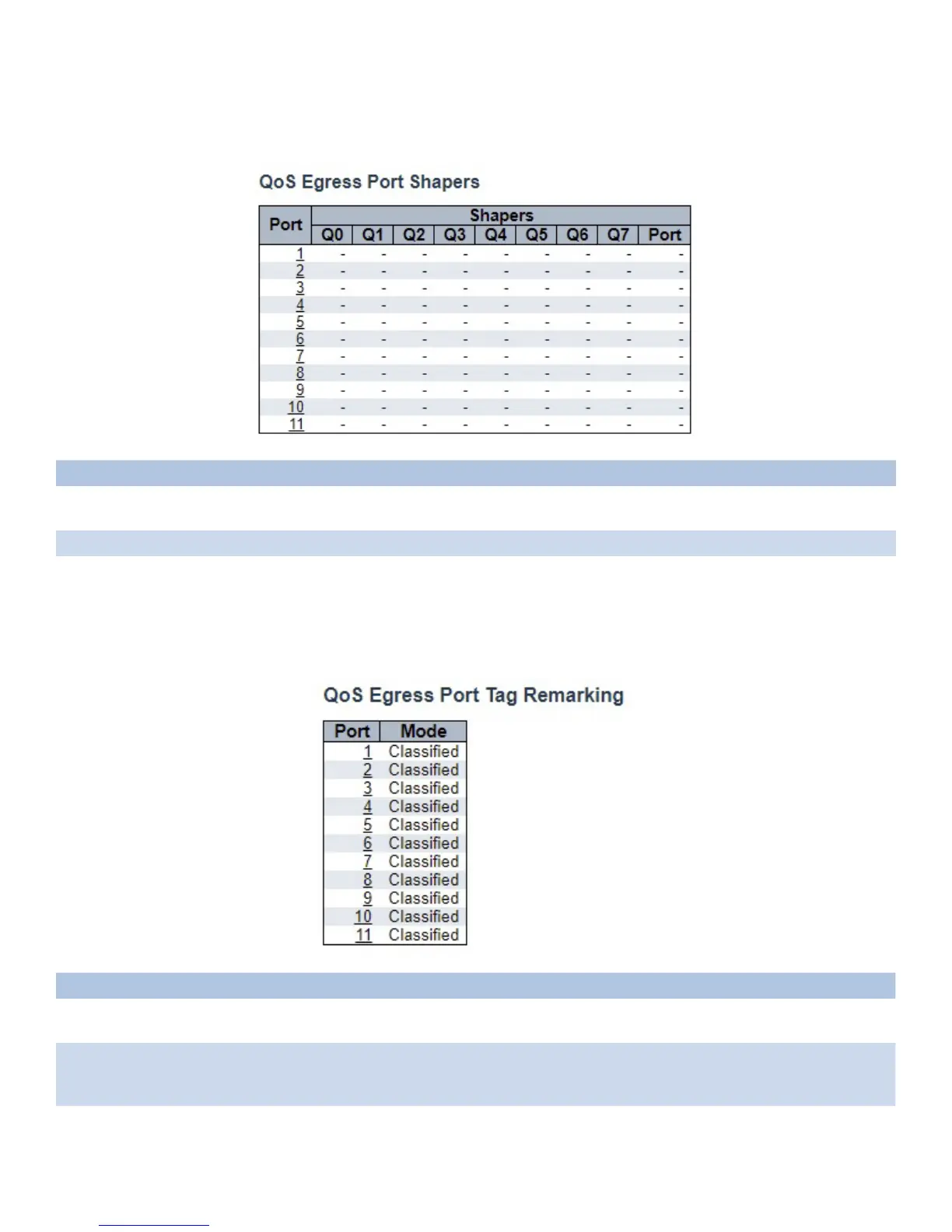

This page provides an overview of QoS Egress Port Shapers for all switch ports.
Object Description
Port The logical port for the settings contained in the same row. Click on the port number in order to
configure the shapers.
Qn Shows “disabled” or actual queue shaper rate - e.g. “800 Mbps”.
Port # Shows “disabled” or actual port shaper rate - e.g. “800 Mbps”.
Port Tag Remarking
This page provides an overview of QoS Egress Port Tag Remarking for all switch ports.
Object Description
Port The logical port for the settings contained in the same row. Click on the port number in order to
configure tag remarking.
Mode Shows the tag remarking mode for this port. Classified: Use classified PCP/DEI values.
Default: Use default PCP/DEI values.
Mapped: Use mapped versions of QoS class and DP level.
