QoS Control List

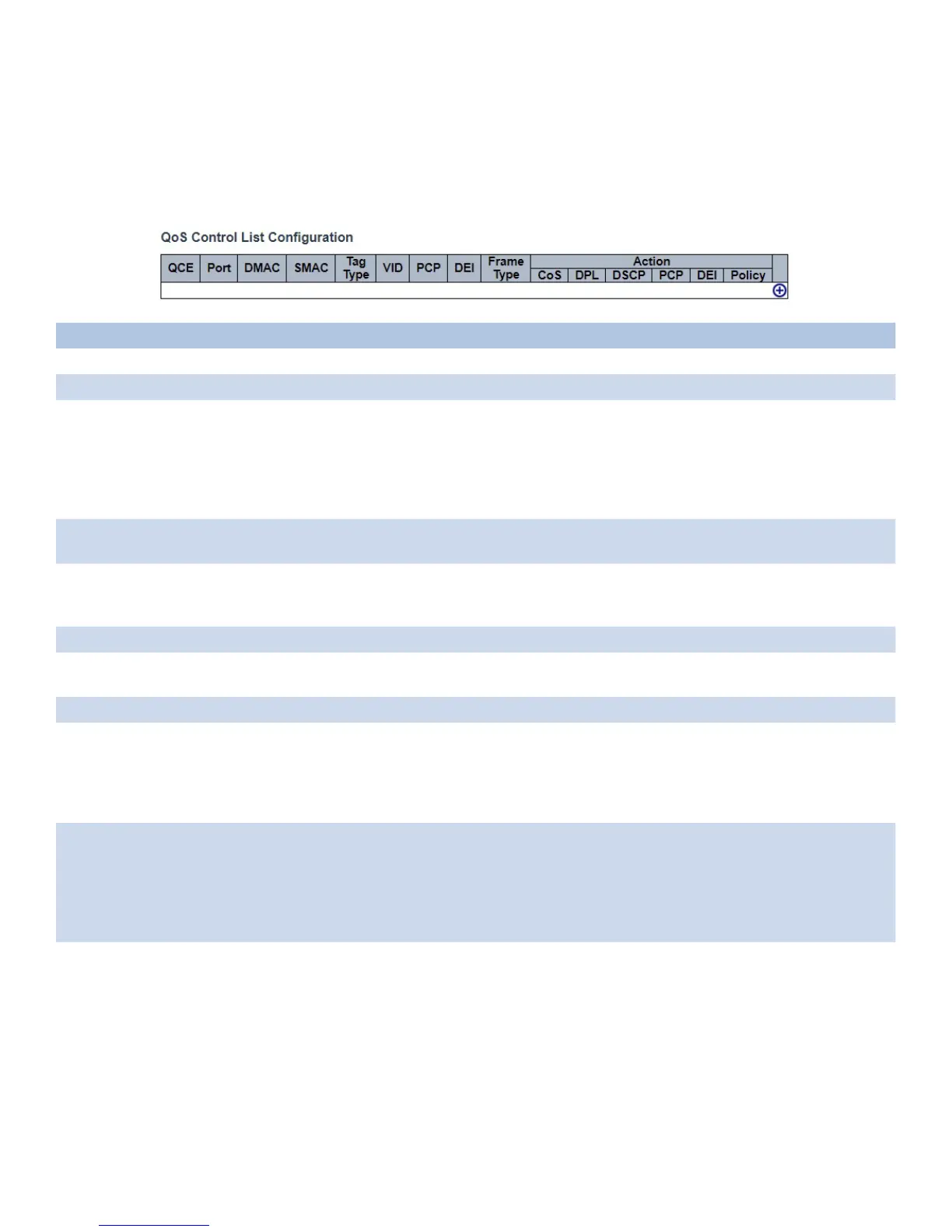

This page shows the QoS Control List(QCL), which is made up of the QCEs. Each row describes a
QCE that is defined. The maximum number of QCEs is 256 on each switch.
Click on the lowest plus sign to add a new QCE to the list.
Object Description
QCE Indicates the QCE id.
Port Indicates the list of ports configured with the QCE.
DMAC Indicates the destination MAC address. Possible values are:
Any: Match any DMAC.
Unicast: Match unicast DMAC.
Multicast: Match multicast DMAC.
Broadcast: Match broadcast DMAC.
The default value is ‘Any’.
SMAC Match specific source MAC address or ‘Any’.
If a port is configured to match on DMAC/DIP, this field indicates the DMAC.
Tag Type Indicates tag type. Possible values are: Any: Match tagged and untagged frames. Untagged: Match
untagged frames. Tagged: Match tagged frames.
The default value is ‘Any’.
VID Indicates (VLAN ID), either a specific VID or range of VIDs. VID can be in the range 1-4095 or ‘Any’
PCP Priority Code Point: Valid values of PCP are specific(0, 1, 2, 3, 4, 5, 6, 7) or range(0-1, 2-3, 4-5, 6-7, 0-3,
4-7) or ‘Any’.
DEI Drop Eligible Indicator: Valid value of DEI is 0, 1 or ‘Any’.
Frame Type Indicates the type of frame. Possible values are: Any: Match any frame type.
Ethernet: Match EtherType frames.
LLC: Match (LLC) frames.
SNAP: Match (SNAP) frames.
IPv4: Match IPv4 frames. IPv6: Match IPv6 frames.
Action Indicates the classification action taken on ingress frame if parameters configured are matched with
the frame’s content.
Possible actions are:
CoS: Classify Class of Service.
DPL: Classify Drop Precedence Level.
DSCP: Classify DSCP value.
Modification
Buttons
You can modify each QCE (QoS Control Entry) in the table using the following buttons:
“+”: Inserts a new QCE before the current row
“e”: Edits the QCE.
“Up”: Moves the QCE up the list.
“Down”: Moves the QCE down the list.
“X”: Deletes the QCE.
“+”: The lowest plus sign adds a new entry at the bottom of the QCE listings.
