IP Source Guard

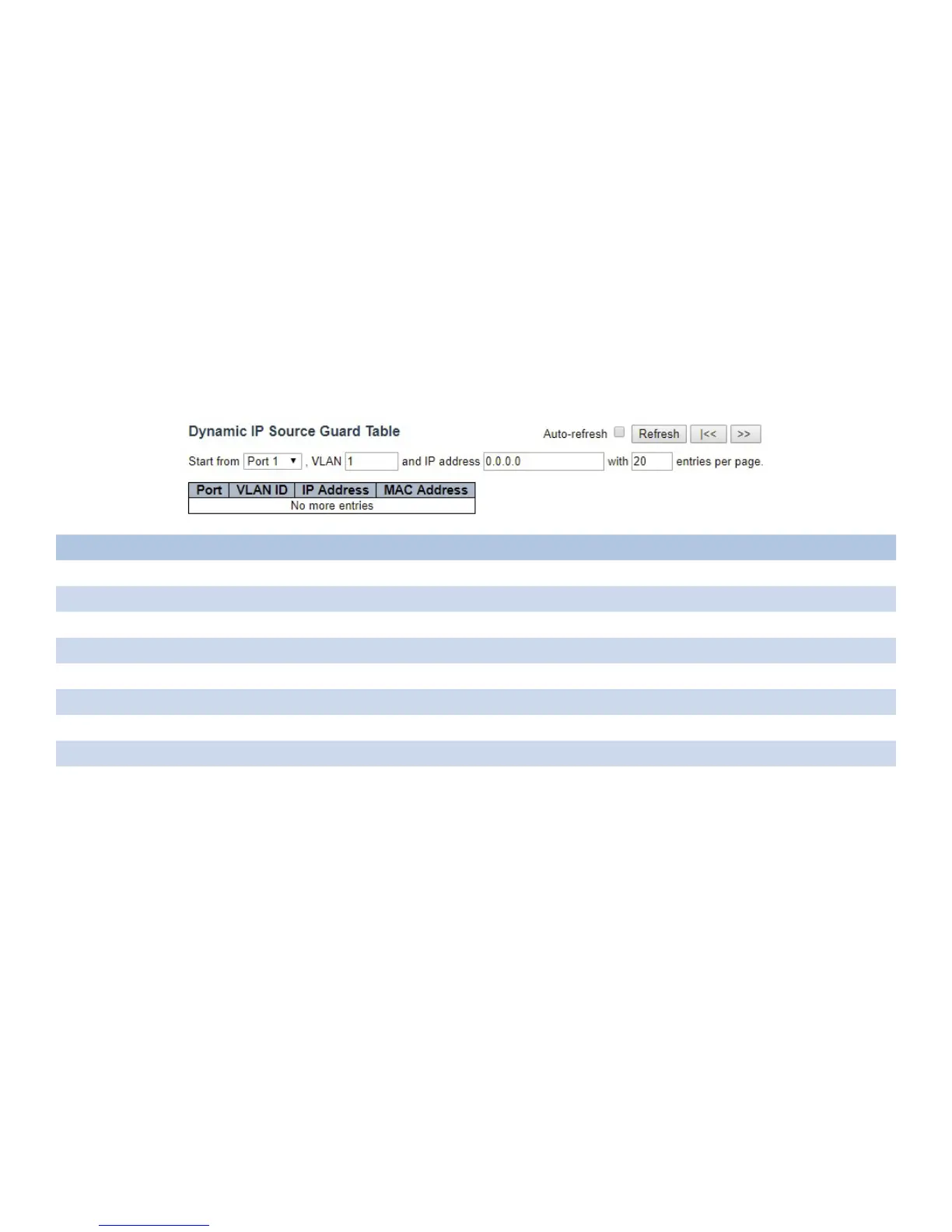

Each page shows up to 99 entries from the Dynamic IP Source Guard table, default being 20,
selected through the “entries per page” input field. When first visited, the web page will show the
first 20 entries from the beginning of the Dynamic IP Source Guard Table.
The “Start from port address”, “VLAN” and “IP address” input fields allow the user to select the
starting point in the Dynamic IP Source Guard Table. Clicking the “Refresh” button will update
the displayed table starting from that or the closest next Dynamic IP Source Guard Table match.
In addition, the two input fields will - upon a “Refresh” button click - assume the value of the first
displayed entry, allowing for continuous refresh with the same start address.
The “>>” will use the last entry of the currently displayed table as a basis for the next lookup.
When the end is reached the text “No more entries” is shown in the displayed table. Use the “<<”
button to start over.
Object Description
Port Switch Port Number for which the entries are displayed.
VLAN ID VLAN-ID in which the IP traffic is permitted.
IP Address User IP address of the entry.
MAC Address Source MAC address.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the displayed table starting from the input fields.
|<< Click to update the table starting from the first entry in the Dynamic IP Source Guard Table.
<< Click to update the table, starting with the entry after the last entry currently displayed.
