Port Status

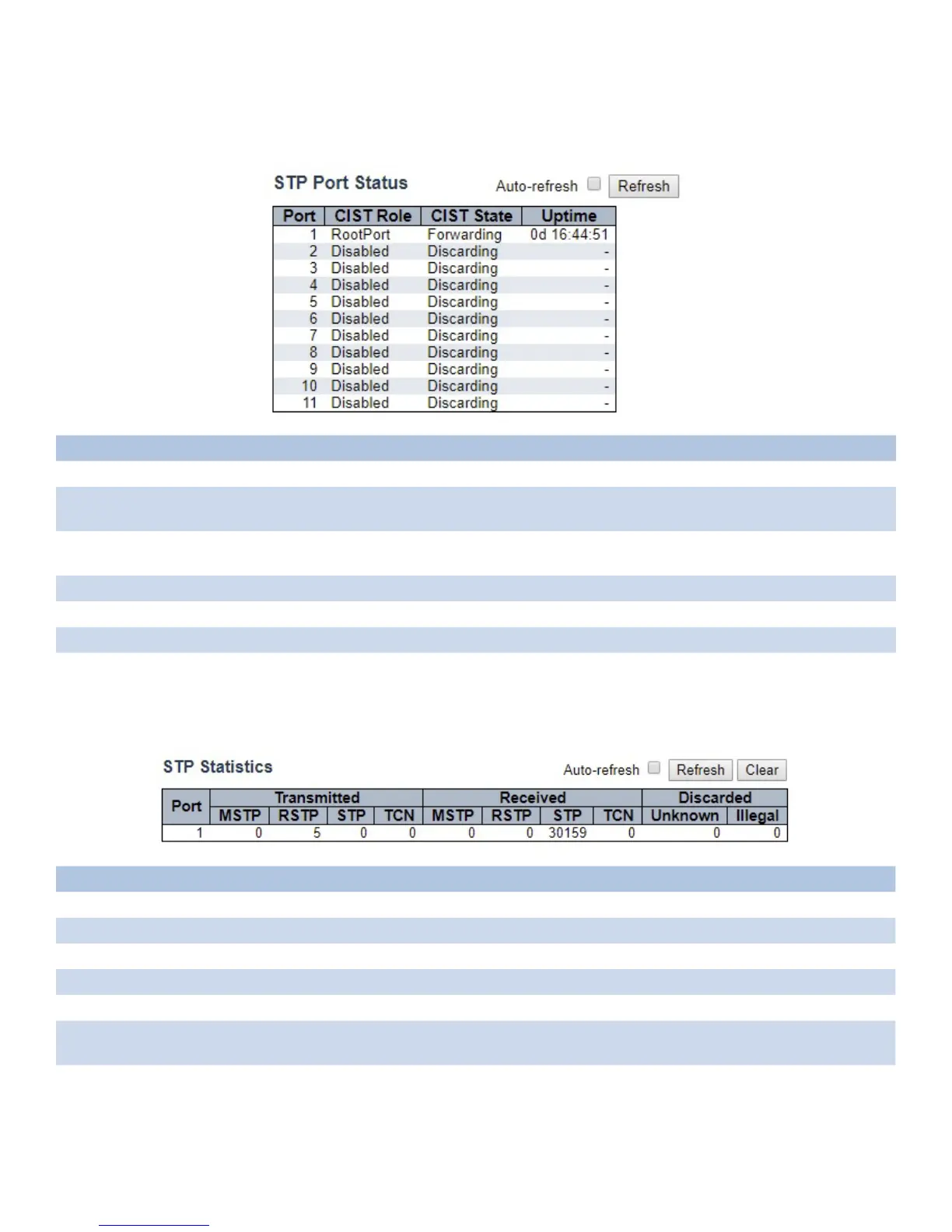

This page displays the STP CIST port status for physical ports of the switch.
Object Description
Port The switch port number of the logical STP port.
CIST Role The current STP port role of the CIST port. The port role can be one of the following values:
AlternatePort BackupPort RootPort DesignatedPort Disabled.
CIST State The current STP port state of the CIST port. The port state can be one of the following values:
Discarding Learning Forwarding.
Uptime The time since the bridge port was last initialized.
Auto_refresh Check to refresh the page automatically every 3 seconds.
Refresh Click to refresh the displayed table starting from the input fields.
Port Statistics
This page displays the STP port statistics counters of bridge ports in the switch.
Object Description
Port The switch port number of the logical STP port.
MSTP The number of MSTP BPDU’s received/transmitted on the port.
RSTP The number of RSTP BPDU’s received/transmitted on the port.
STP The number of legacy STP Configuration BPDU’s received/transmitted on the port.
TCN The number of (legacy) Topology Change Notification BPDU’s received/transmitted on the port.
Discarded
Unknown
The number of unknown Spanning Tree BPDU’s received (and discarded) on the port.
Discarded IllegalThe number of illegal Spanning Tree BPDU’s received (and discarded) on the port.
