Dynamic Table

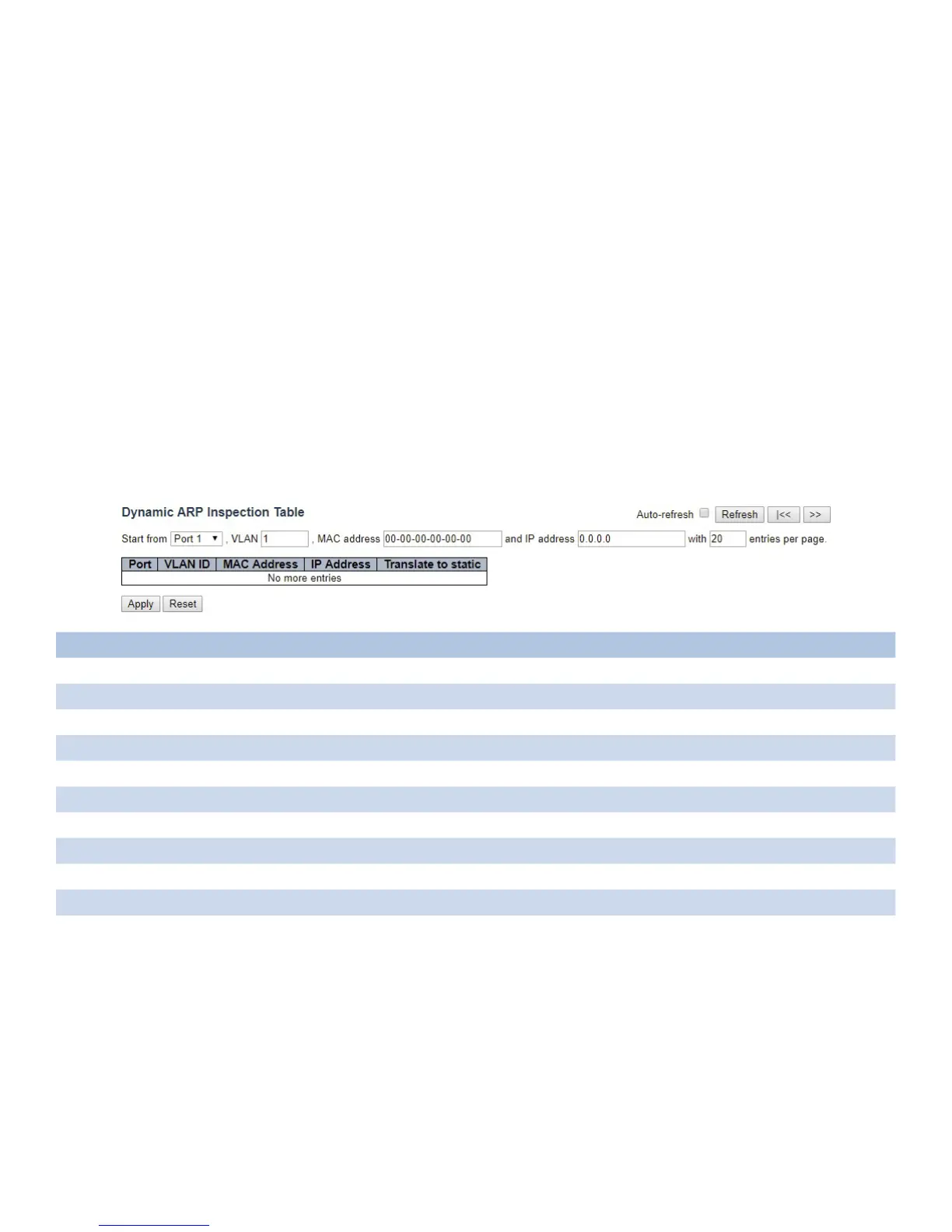

Entries in the Dynamic ARP Inspection Table are shown on this page. The Dynamic ARP Inspection
Table contains up to 256 entries, and is sorted first by port, then by VLAN ID, then by MAC
address, and then by IP address. All dynamic entries are learning from DHCP Snooping
Each page shows up to 99 entries from the Dynamic ARP Inspection table, default being 20,
selected through the “entries per page” input field. When first visited, the web page will show the
first 20 entries from the beginning of the Dynamic ARP Inspection Table.
The “Start from port address”, “VLAN”, “MAC address” and “IP address” input fields allow the user
to select the starting point in the Dynamic ARP Inspection Table. Clicking the "Refresh" button will
update the displayed table starting from that or the closest next Dynamic ARP Inspection Table
match. In addition, the two input fields will - upon a "Refresh" button click - assume the value of
the first displayed entry, allowing for continuous refresh with the same start address.
The ">>" button will use the last entry of the currently displayed table as a basis for the next
lookup. When the end is reached the text “No more entries” is shown in the displayed table. Use
the "|<<" button to start over.
Object Description
Port Switch Port Number for which the entries are displayed.
VLAN ID VLAN-ID in which the ARP traffic is permitted.
MAC Address User MAC address of the entry.
IP Address User IP address of the entry.
Translate to static Select the checkbox to translate the entry to static entry.
Auto_refresh Click to refresh the page automatically every 3 seconds.
Apply Click to apply changes.
Reset Click to revert to previous values.
Refresh Click to refresh the table starting from input fields.
|<< Click to update the table starting from the first entr in the Dynamic ARP Inspection Table.
>> Click to update the table starting with the entry after the last entry currently displayed.
