8-6 Using a Modem
Writer: Karen S. Williams Saved by: Cheryl Love Saved date: 09/03/97 9:44 AM
Part Number: 220709-003 File name: Ch08.doc
To connect an integrated modem to a standard telephone wall jack
in Europe or Asia Pacific (except Japan and Hong Kong):
1. Connect the 25-pin connector on the country-specific
modem cable to the 25-pin connector on the computer
1
.
2. Plug the opposite end of the country-specific modem cable
into a standard telephone wall jack
2
.

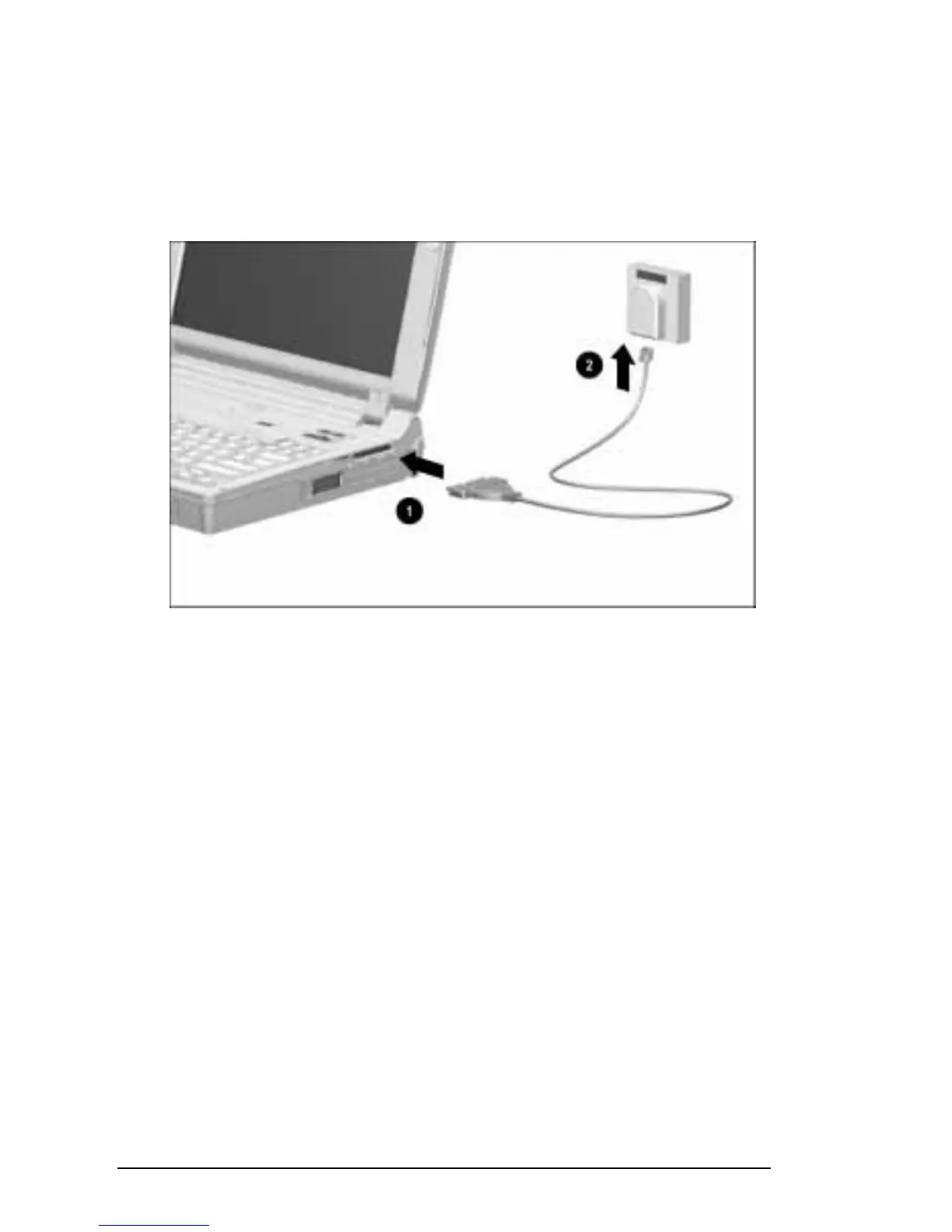

Connecting the Modem to a Telephone Wall Jack in Europe or Asia Pacific (Except
Japan and Hong Kong)
NOTE:
The country-specific modem cable and standard telephone
wall jack that you are using may differ from the cable and
jack shown in this illustration. The sizes and shapes of country-
specific modem cables and standard telephone wall jacks vary
among countries.
