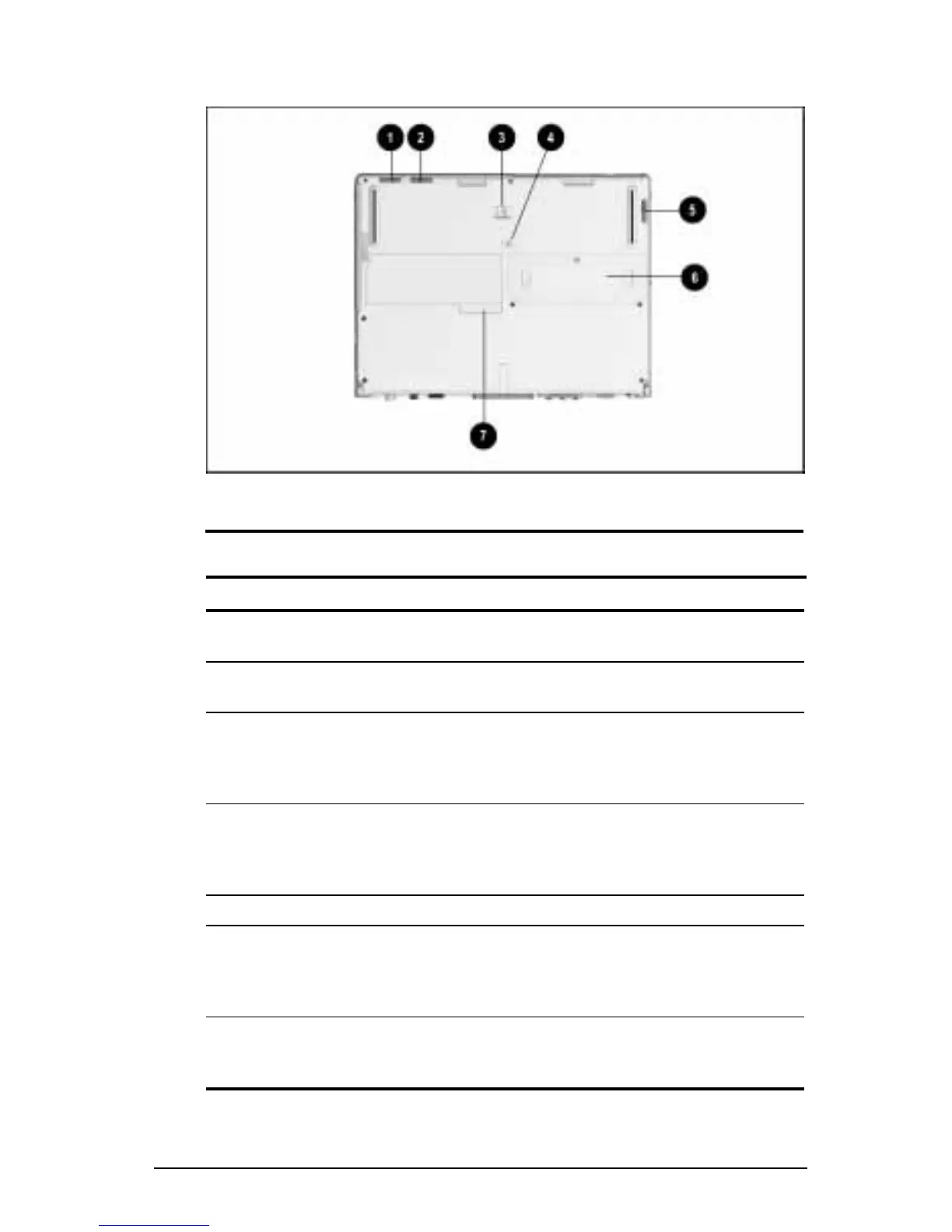

Bottom Components
Bottom Components
Bottom Components
Component Function
1
Battery release latch Releases a battery pack from the
battery bay.
2
Hard drive release latch Releases a removable hard drive
from the hard drive bay.
3
Docking restraint latch recess Helps secure the computer when it
is docked in an optional
ArmadaStation or Armada
MiniStation.
4
Security slot With the single-bay security screw or
dual-bay security screw, secures
devices installed in the MultiBay and
hard drive bay.
5
MultiBay release latch Releases devices from the MultiBay.
6
Memory expansion slot cover Covers the memory expansion
compartment, which contains two
memory expansion slots for memory
expansion boards.
7
Serial number Computer identification number;
needed when you call Compaq
customer support.
