3033-006B Section 6: The Coffee System
Concordia Xpress Technical Support Manual 6-3
2900-300B
Grinders
Operating Voltage: 220Vac 50/60Hz
Beans are gravity fed to the grinders from the bean hoppers.
The blades (burrs) are the components which actually grind the whole
beans to the desired particle size. The upper burr remains stationary as
the lower burr spins and the coffee beans are ground. The burrs are
made up of two identical halves: an upper and lower burr.

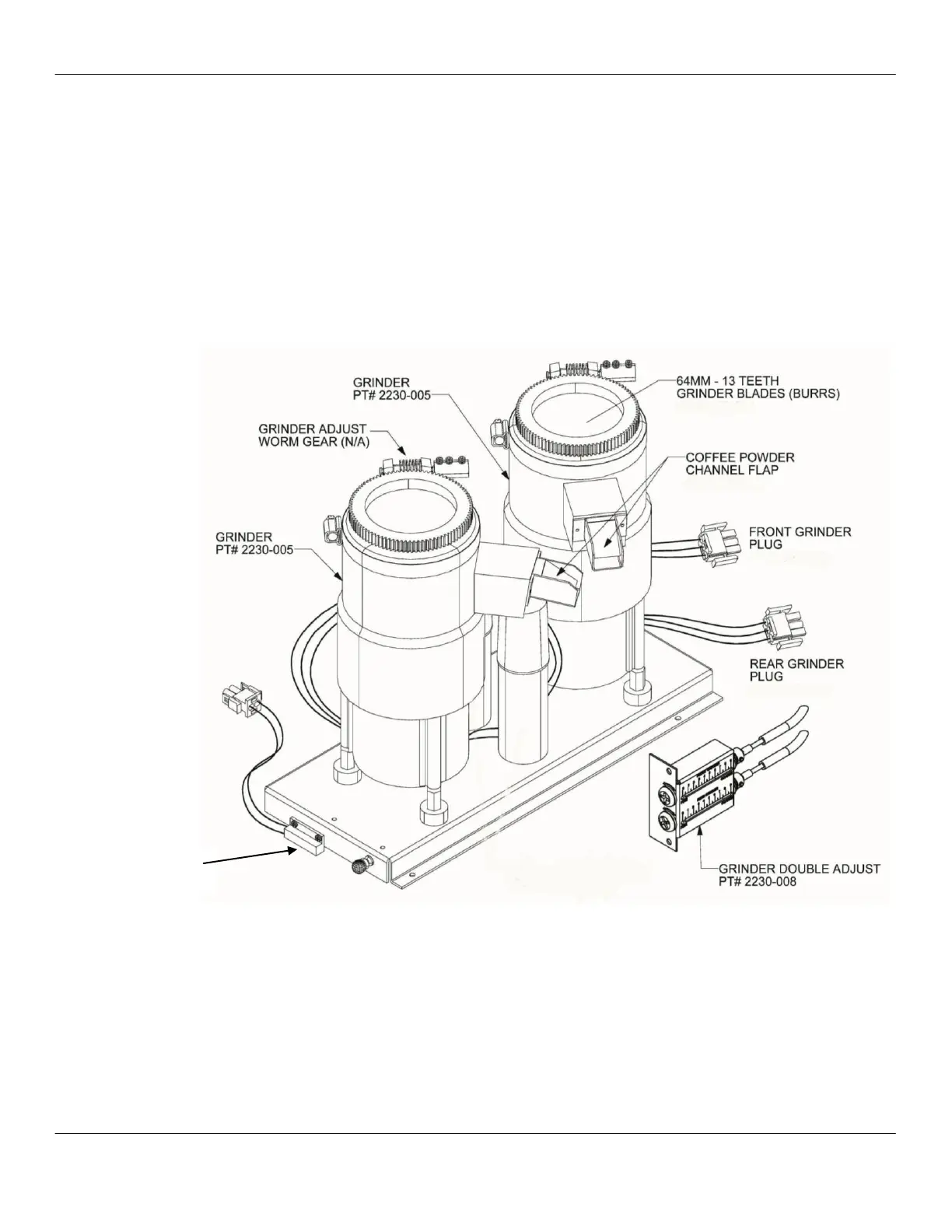

Double Grinder Assembly
ASSY SWITCH –MAG-4
PT#2510-027
