Manual Steam Wand
A knob controls the flow of steam on the manual steam wand.
Replacing a Manual Steam Wand
1. Power the machine down.
2. Disconnect the water supply from the machine.
3. Purge all steam from the steam tank.
4. Remove the black steam wand knob.
5. Remove the nut, using a 7/16” wrench.
6. Remove the steam wand knob bracket, and then discard.
7. Remove the refrigerator door panel by removing the screws. Use
a #1 Phillip’s screwdriver.
IMPORTANT: Remove screws carefully to prevent stripping of
the screw heads.

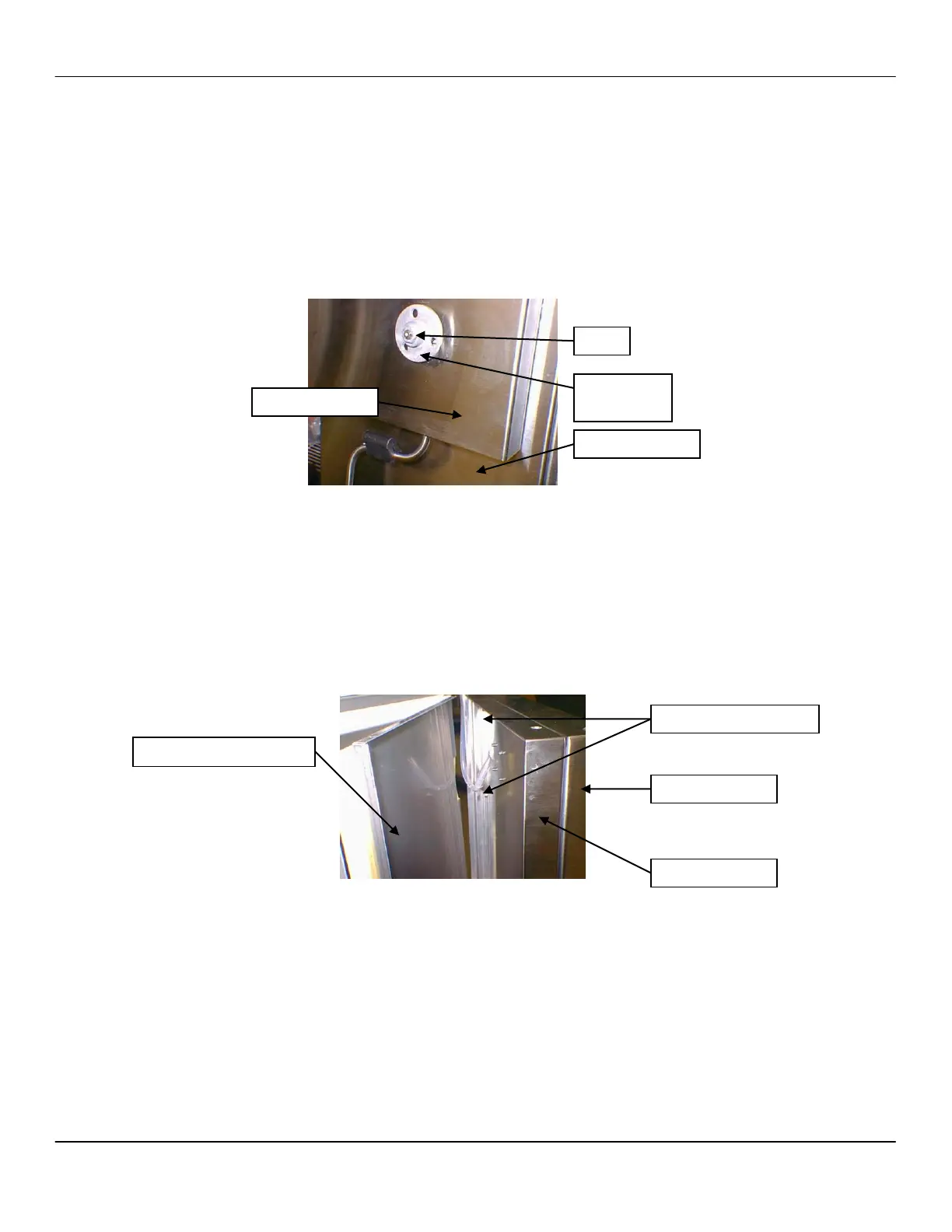

8. Separate the insulation-mounting bracket from the fridge door
panel. See the photo in step 9.
9. Remove the four screws holding the refrigerator door cover. Use
a Philips screwdriver. Remove the cover to gain access to the
steam wand assembly.
10. Unfasten the PFA tubing at the elbow fitting. Use a 1/2" wrench.
11. Remove the four screws attaching the steam wand bracket. Use
a #1 Phillip’s screwdriver.
NOTE: Do not discard these screws.
Insulation mounting bracket
