3033-009B Section 9: Flavor System
Concordia Xpress Technical Support Manual 9-7
2900-300B
Changing Flavor Boxes
Before replacing a flavor box, verify the bag is empty.
For chocolate syrup boxes, the bag inside the box may crease or
partially collapse and block the flow of flavor. It may only be necessary to
manipulate the bag for chocolate sauce to flow properly. For instructions
on how to do this, please call Concordia Beverage Systems for
assistance at 1-800-778-0990.

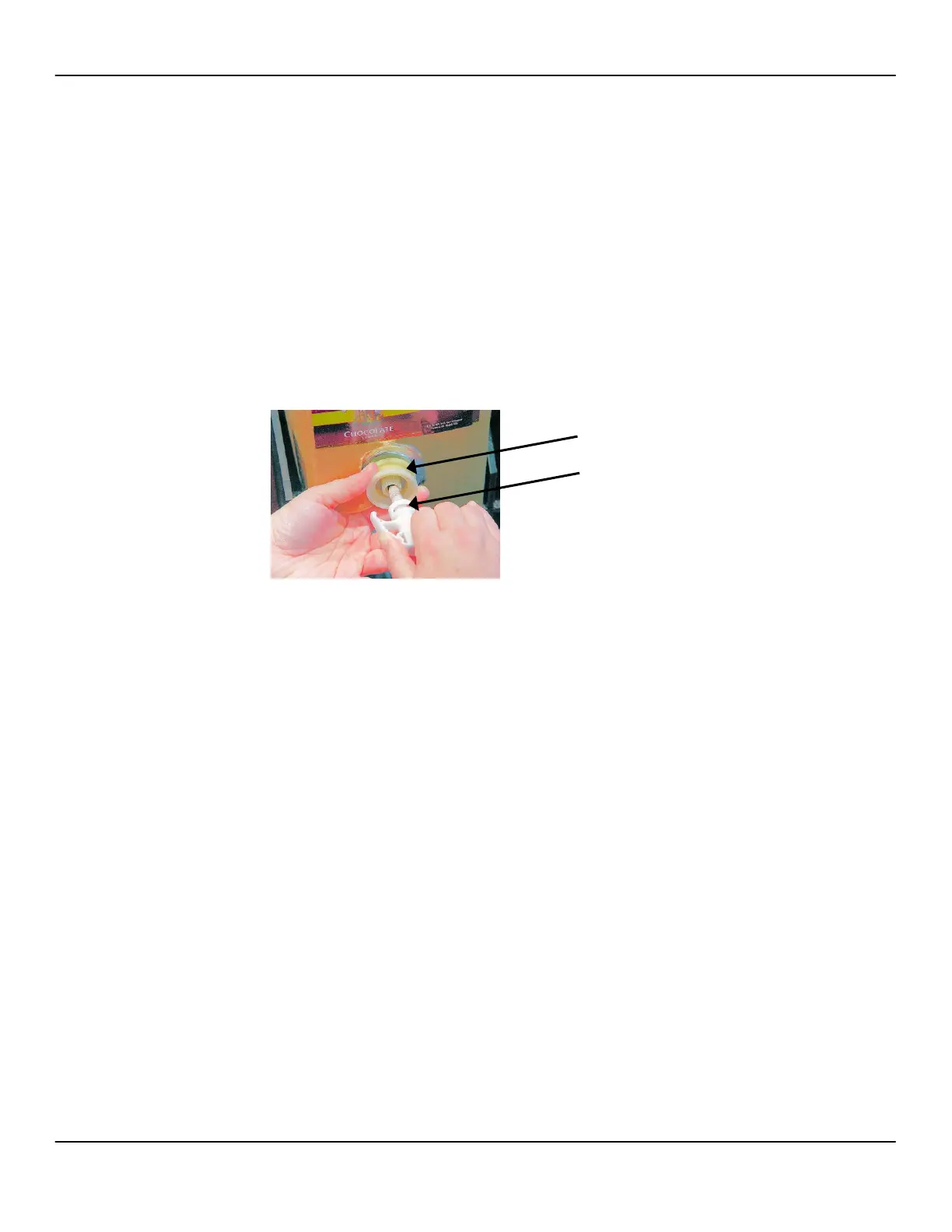

1. Place a cleaning rag under the nozzle, to catch any flavor drips.
2. Hold connector in place with one hand.
3. Grasp nozzle with other hand.
4. Using thumb, push on left side of nozzle handle to release the
nozzle and then pull from connector.
NOTE: When removing an empty flavor box, DO NOT pull by
grabbing the tubing or connector on a flavor box.
Once the nozzle is removed from the connector, remove the empty box
from the flavor storage area. Do NOT place the nozzle on the floor.
NOTE: It is normal that there may still be a small amount of syrup or
sauce in a bag when the bag is empty. A small amount of syrup or sauce
may also drip when the nozzle is removed from the bag.
To replace syrup/sauce box
1. Open box at the “OPEN HERE” location, and extract the
connector.
2. Remove protective seal from the connector.
3. Clean the nozzle and o-ring thoroughly with a wet cloth, to
remove any debris, provide lubrication, and remove syrup or
sauce residue.
NOTE: Re-inserting a dry o-ring may result in leaks.
4. Hold connector firmly with hand.
5. Insert correct color-coded nozzle into connector firmly, until the
nozzle handle clicks into place.
WARNING: Do not try to insert the nozzle without holding the
connector, or the connector may be pushed into the box.
