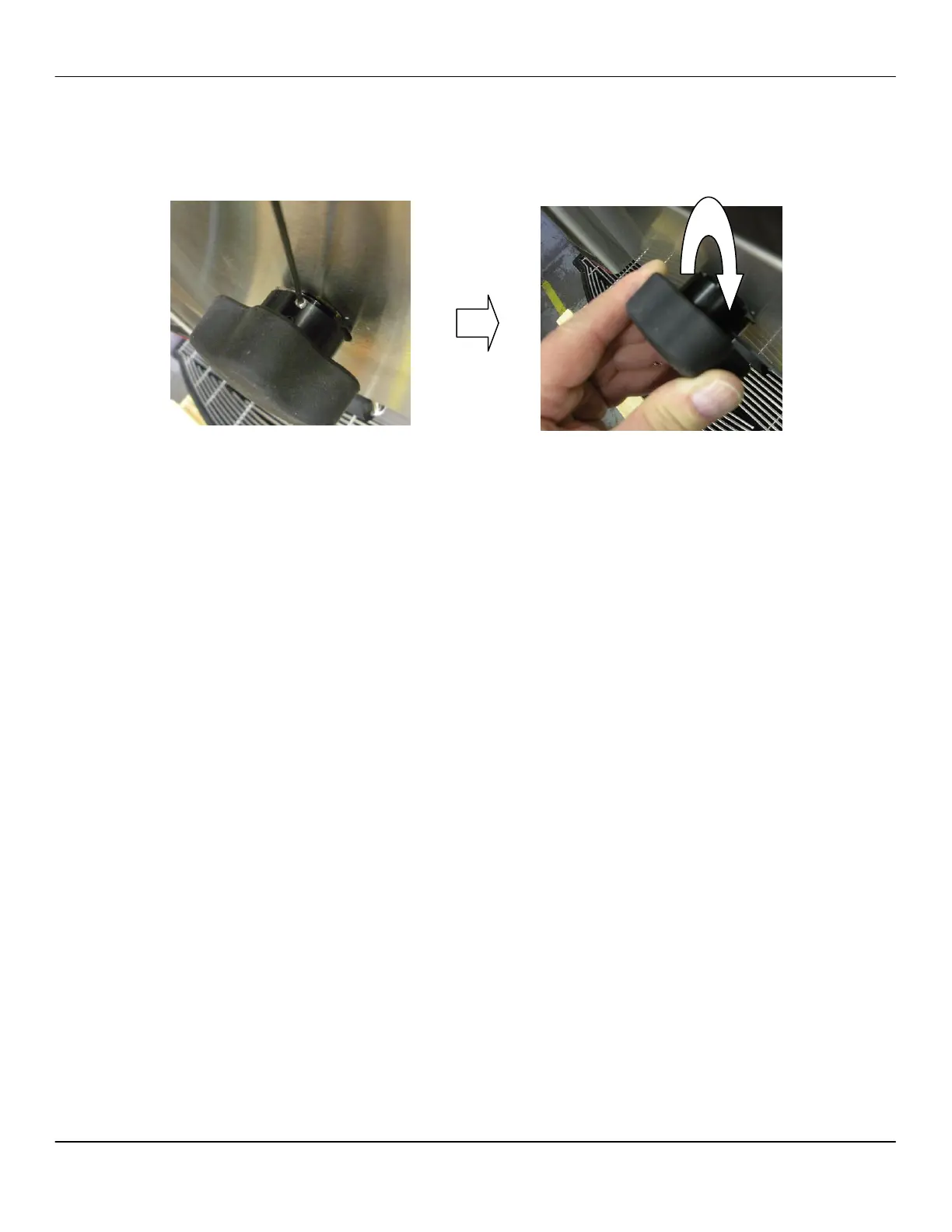

16. Rotate the handle until the inner short setscrew is lined up with
the notched valve section. Once aligned, tighten setscrew (part
of 2790-106) to act as a stop to prevent the handle from being
able to turn completely around. Check for dragging of setscrew
and adjust out if needed. Turn knob to ensure it stops after about
1/4 turn.
17. Turn on the water supply
18. Turn the machine on and allow steam tank to reach operating
pressure.
19. Operate the steam wand to verify operation and check for leaks.
Removing a Steam Wand
Replacing the entire right door is required if a customer requests that the
steam wand be removed from their machine(s). For instructions on
replacing the door, call Concordia Beverage Systems for assistance at 1-
800-778-0990.
Installing a Steam Wand
Both types of steam wands are installed by the Concordia manufacturing
team. Steam wands cannot be installed in the field by a service
technician.
Cleaning a Steam Wand
To clean the automatic steam wand, please see the steam wand
cleaning card (PN 2900-316) that comes with the machine.
To clean the manual steam wand, periodically wipe it down with a damp
cloth to remove milk from the outside of the steam wand. Using a cleaner
such as the Rinzer cleaning tablets (PN 3400-031) is also an option –
just follow the instructions on the Rinzer container.
WARNING: Do not leave a steam wand immersed in liquid when not
being used for steaming. As the pressure inside the steam tank
decreases, liquid will be drawn through the inactive steam wand and into
the steam tank.
