3033-003B Section 3: Electrical
Concordia Xpress Technical Support Manual 3-5
2900-300B

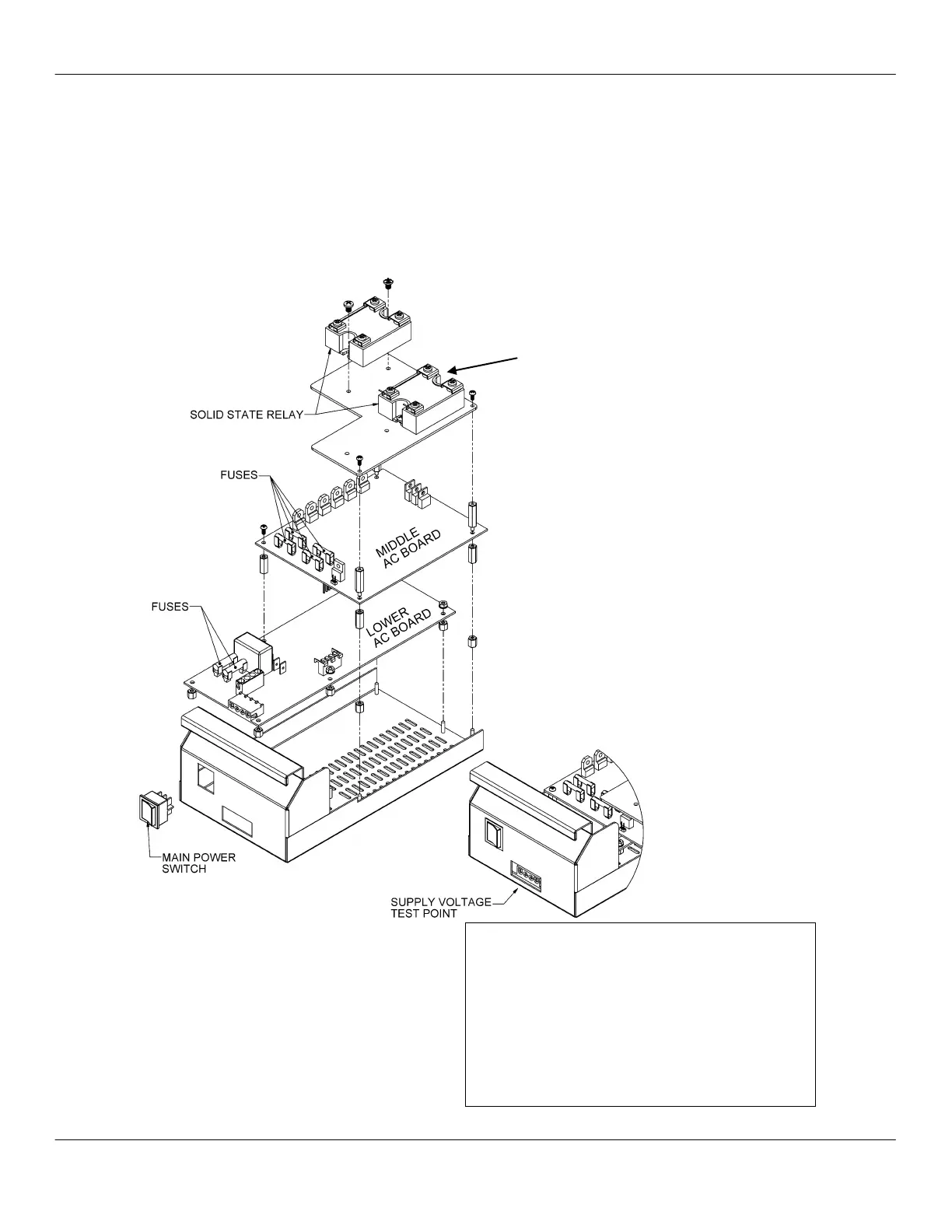

AC Drawer Assembly
Solid state relays located in the AC drawer control AC voltage.
NOTE: Wiring not shown in diagram below.
Solid State Relay Configuration
The Solid State Relay configuration is based
on the wiring configuration:
Single Phase: Two Relays
Triple Phase: Three Relays
High Leg: One Relay
Diagram is single phase configuration.
