Concordia XPRESS - The Steam System

Section 5: Plumbing 3033-005B
5-10 Concordia Xpress Technical Support Manual
2900-300B
The Steam System
The steam system heats the water that is used to froth milk for drinks.
The steam tank is located in the upper right side of the machine and is
accessed by removing the right side panel of the Xpress machine.

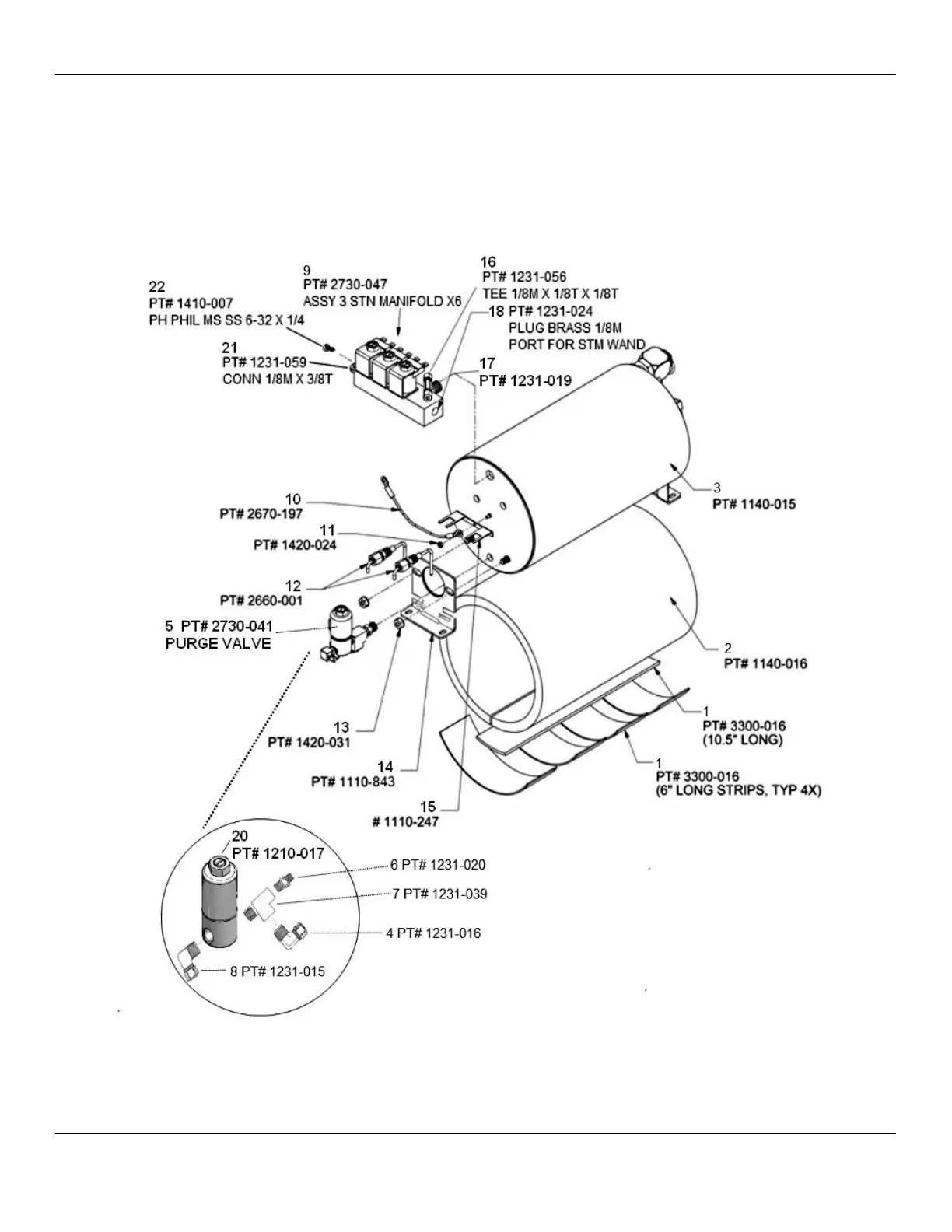

Steam Tank – Front View
