Heating Element Wiring Diagrams
The water and steam tank heating elements must be wired in relation to
the voltage configuration supplied to the machine.

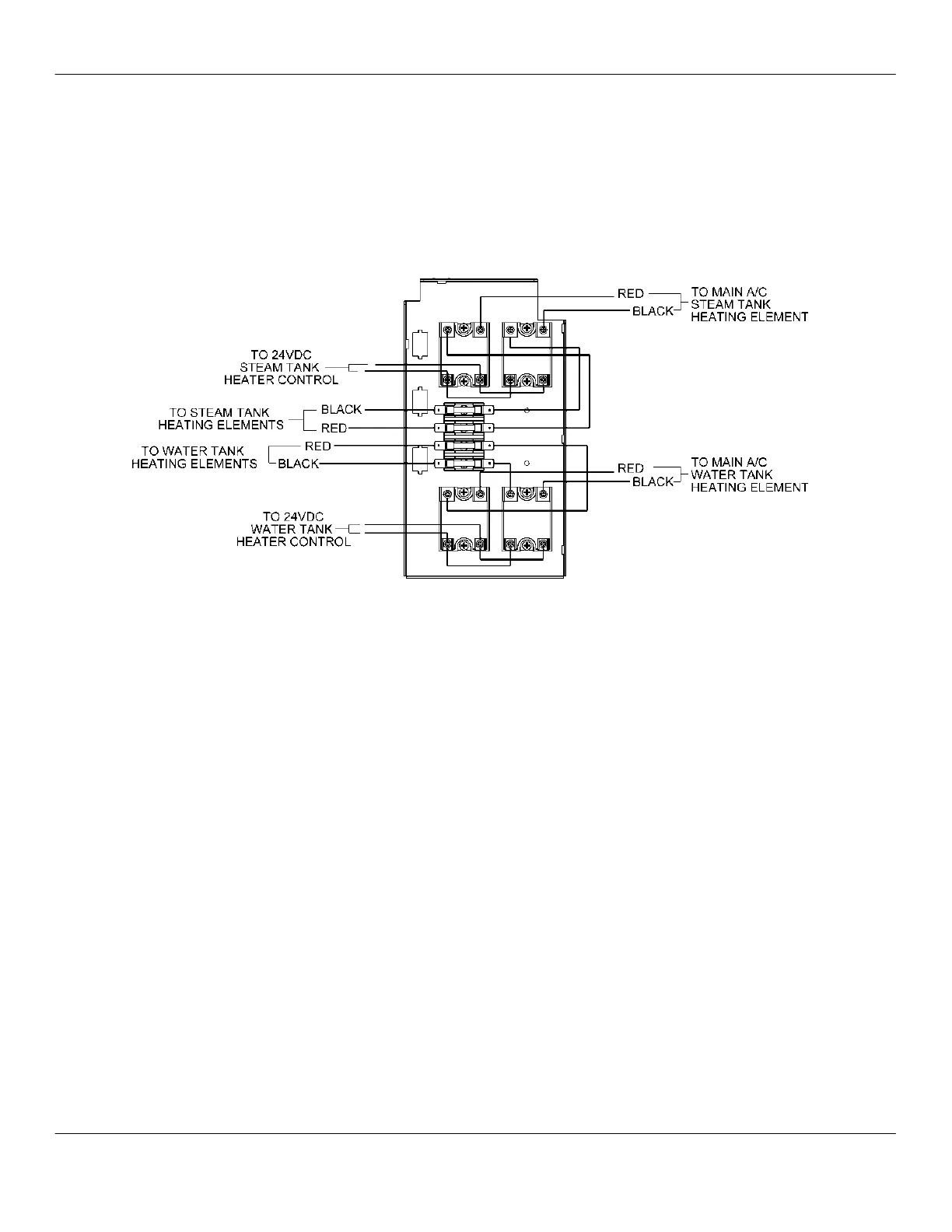

The fuse block shown below is single phase.
