Transformer
The step down transformer uses two lines of AC voltage totaling 200-
240Vac, and steps down that voltage to many separate lines of reduced
AC voltage.
The machine will not operate correctly unless the jumper plug (located
on the DC power supply board) and transformer connectors are set to
line voltage.

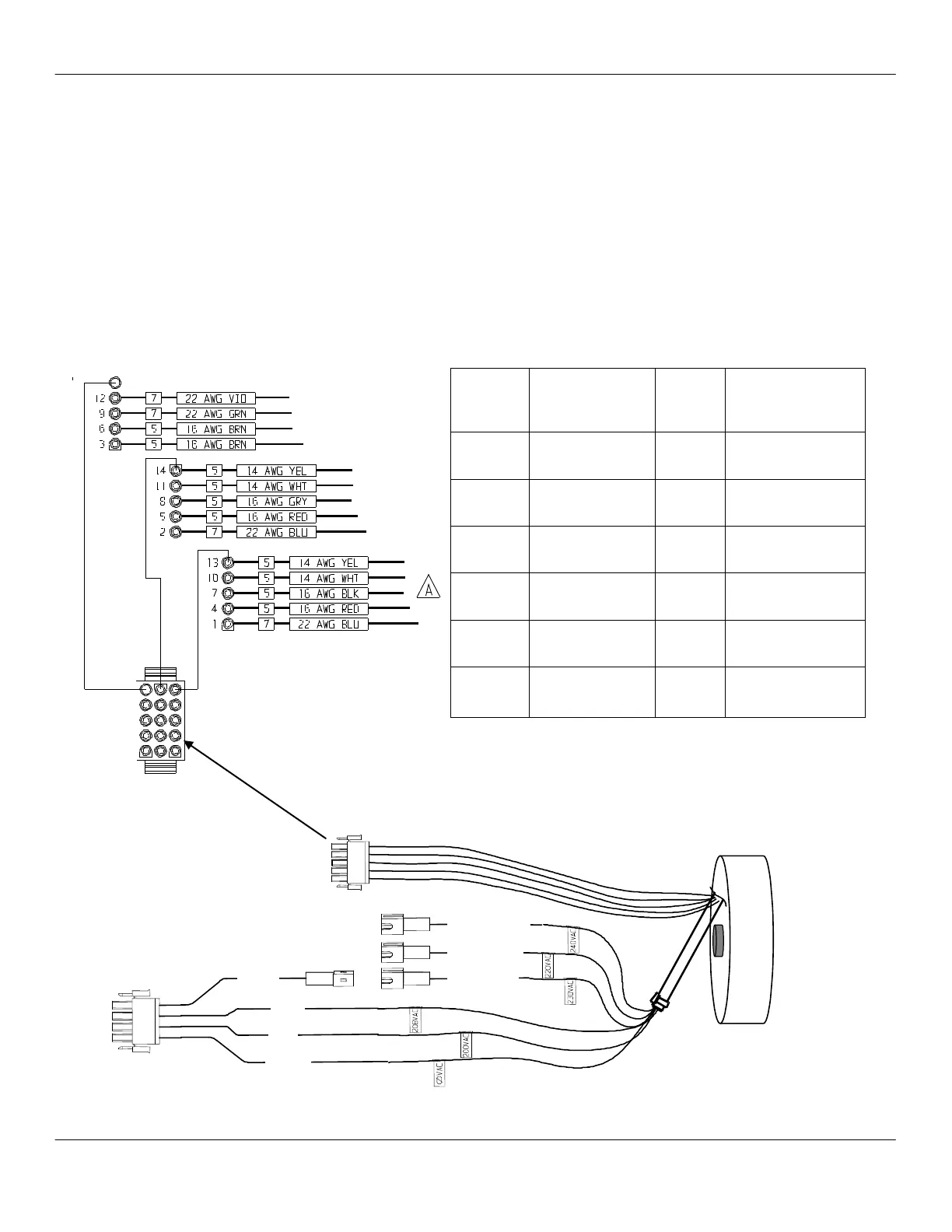

Transformer Diagrams
Secondary Voltage on Transformer Output Plug (15 Pin)
Wire
Color
Transformer
Output
Voltage
Fuse
DC Power
Supply Output
Voltage
Violet
Green
13.4Vac
15
-12Vdc
Blue
Blue
13.4Vac
17
12 and 15Vdc
Brown
Brown
20.6Vac
18
24Vdc
Red
Red
30.0Vac
19
38Vdc
White
Yellow
10.3Vac
No
Fuse
11Vdc
Gray
Black
9.3Vac
16
Ref 5Vdc &
Vcc
TRANSFORMER
BROWN
RED
BLUE
WHITE
WHITE 230V
GREEN 220V
ORANGE
240V
1
2
3
4
15 Pin
Transformer Plug
output to DC Power
Supply Board
4 Pin
Transformer Plug (from JP9)
PRIMARY
INPUT
SECONDARY
OUTPUT
AUXILIARY
CONNECTOR 1
