3033-008B Section 8: Steam Wand
Concordia Xpress Technical Support Manual 8-5
2900-300B

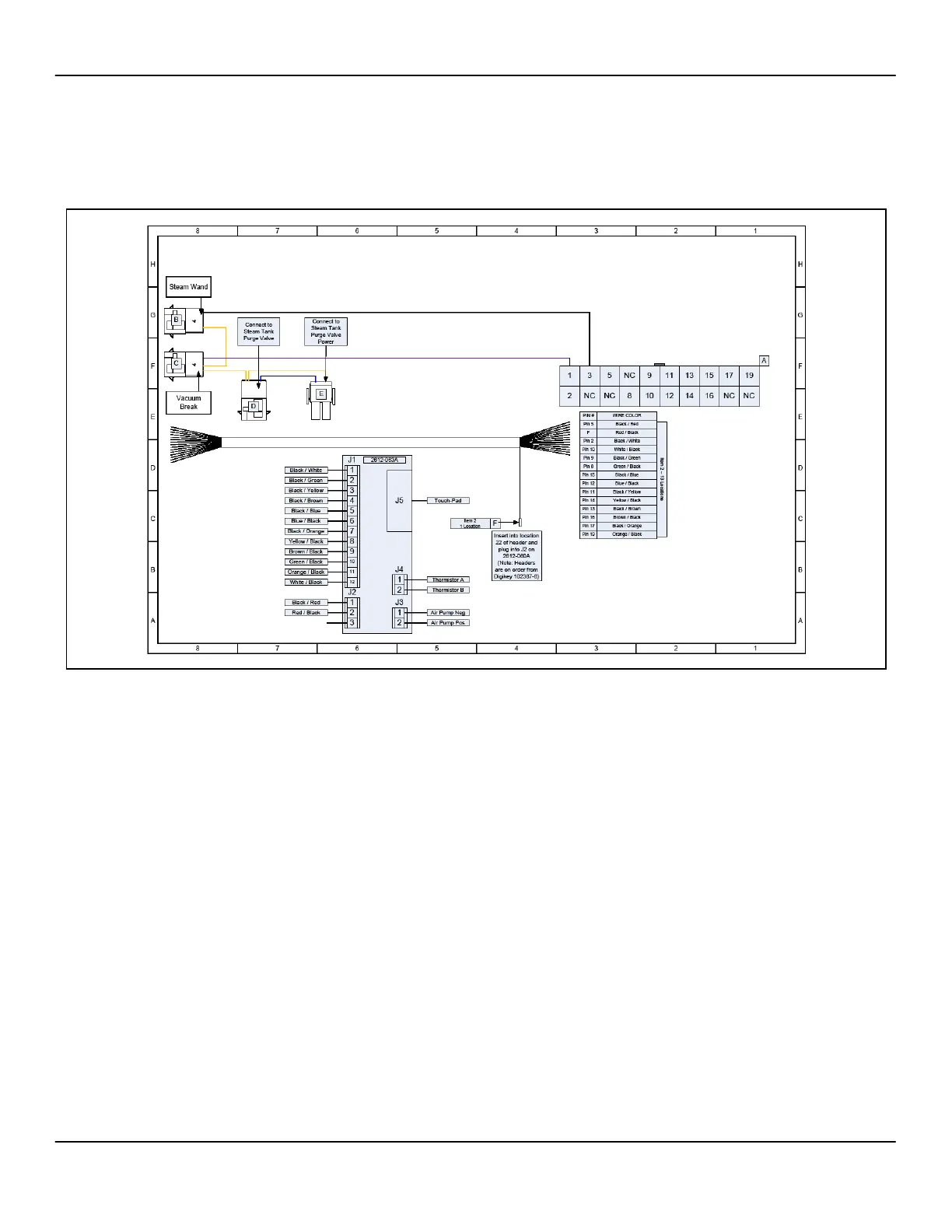

Automatic Steam Wand Wiring
The steam wand wiring is designed to pass through the refrigerator door
hinge to connect the touch-pad, air pump, and LEDs. The harness also
connects the steam and Vacuum break valves to the control system and
to the steam tank purge valve to provide the 24Vdc for the valves.
Replacing an Automatic Steam Wand
Typically, to replace an automatic steam wand, the entire right door of
the machine must be replaced.
Call Concordia Beverage Systems for assistance at 1-800-778-0990.
