Concordia XPRESS - Diagram 2: Grounds Bin Door, Refrigerator Door with Hot Water Button Assembly

Section 16: Parts Lists & Diagrams 3033-016B
16-6 Concordia Xpress Technical Support Manual
2900-300B

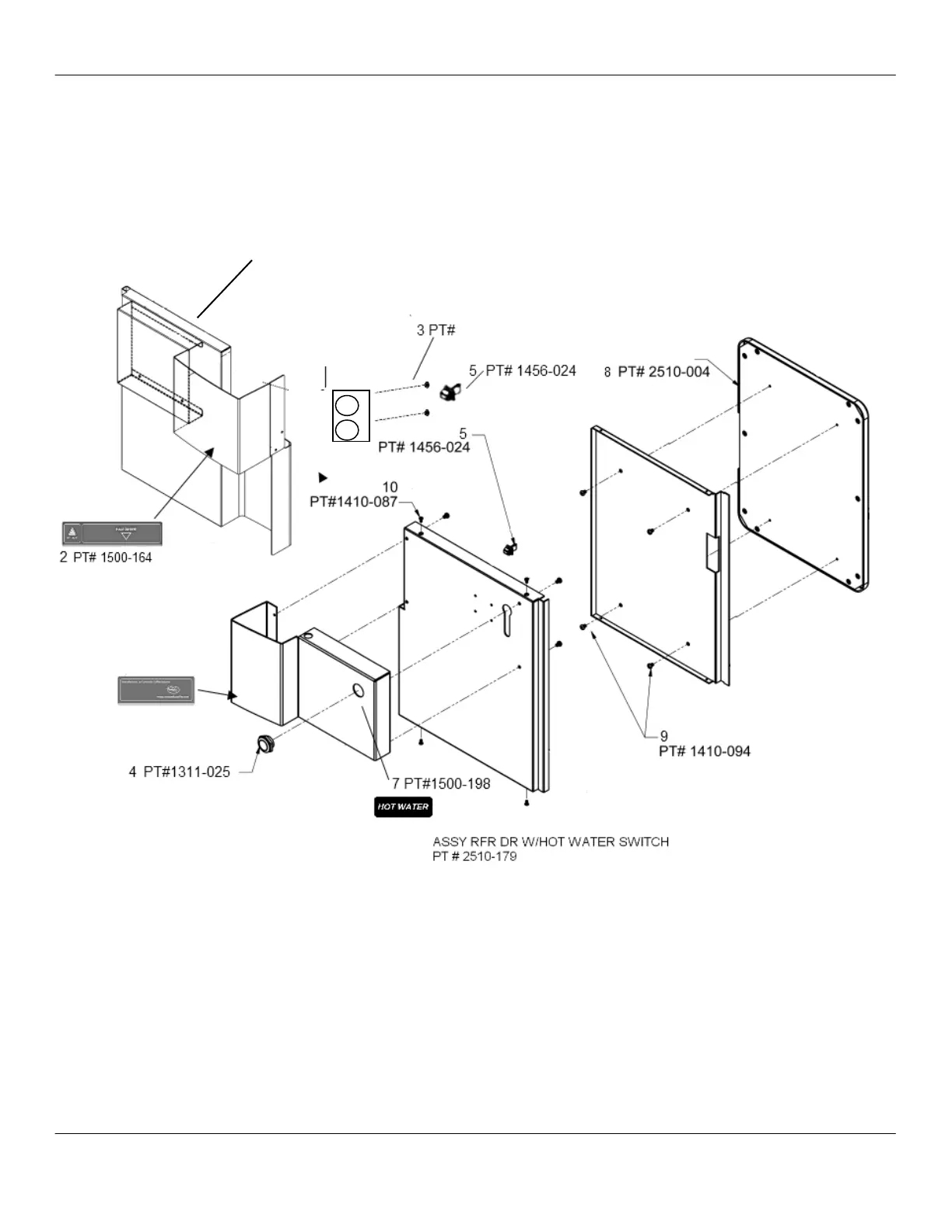

Diagram 2: Grounds Bin Door, Refrigerator
Door with Hot Water Button Assembly
X6 only
ASSY FRG DR W/STM XPRESS
MANUAL STEAM WAND
PT# 2510-194
X0 only
6
PT# 1500-163
X0 only
PT# 1500-309
X6 only
X6 only
X6 only
1410-194
1 PT# 1110-904
11 PT# 1110-905
ASSY FRG DR XPRESS 6
PT# 2510-179
ASSY FRG DR XPRESS 0
PT# 2510-193
