Hot Water Tank
The hot water tank heats the water used for drinks and supplies water to
the steam tank. The water tank is located behind the brew group.

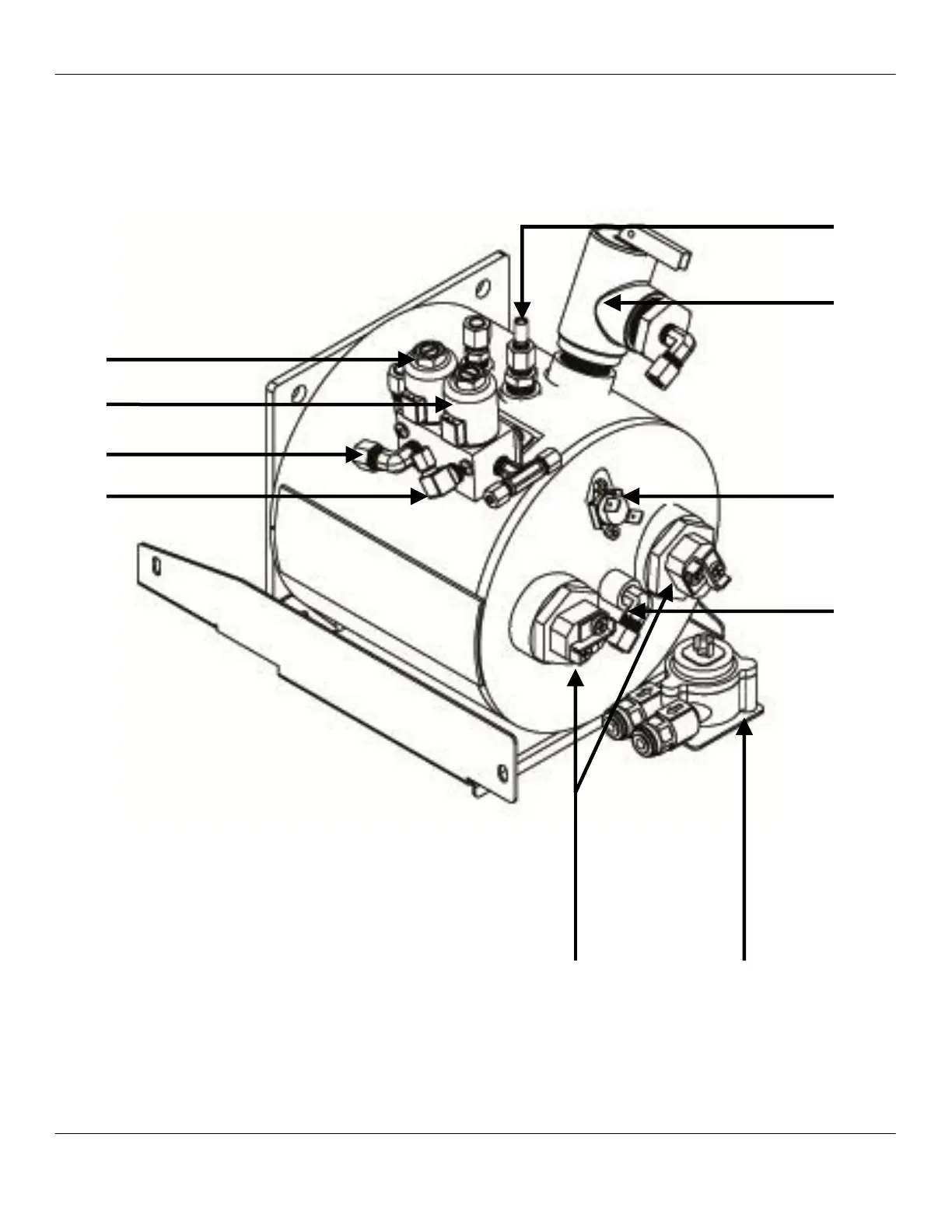

Hot Water Valve
Brew Valve
Hot Water Output
Coffee Output
Heating Elements
Flowmeter
Hi Temp
Limit Switch
Pressure
Relief Valve
Temperature/Level
Probe
Water Inlet
