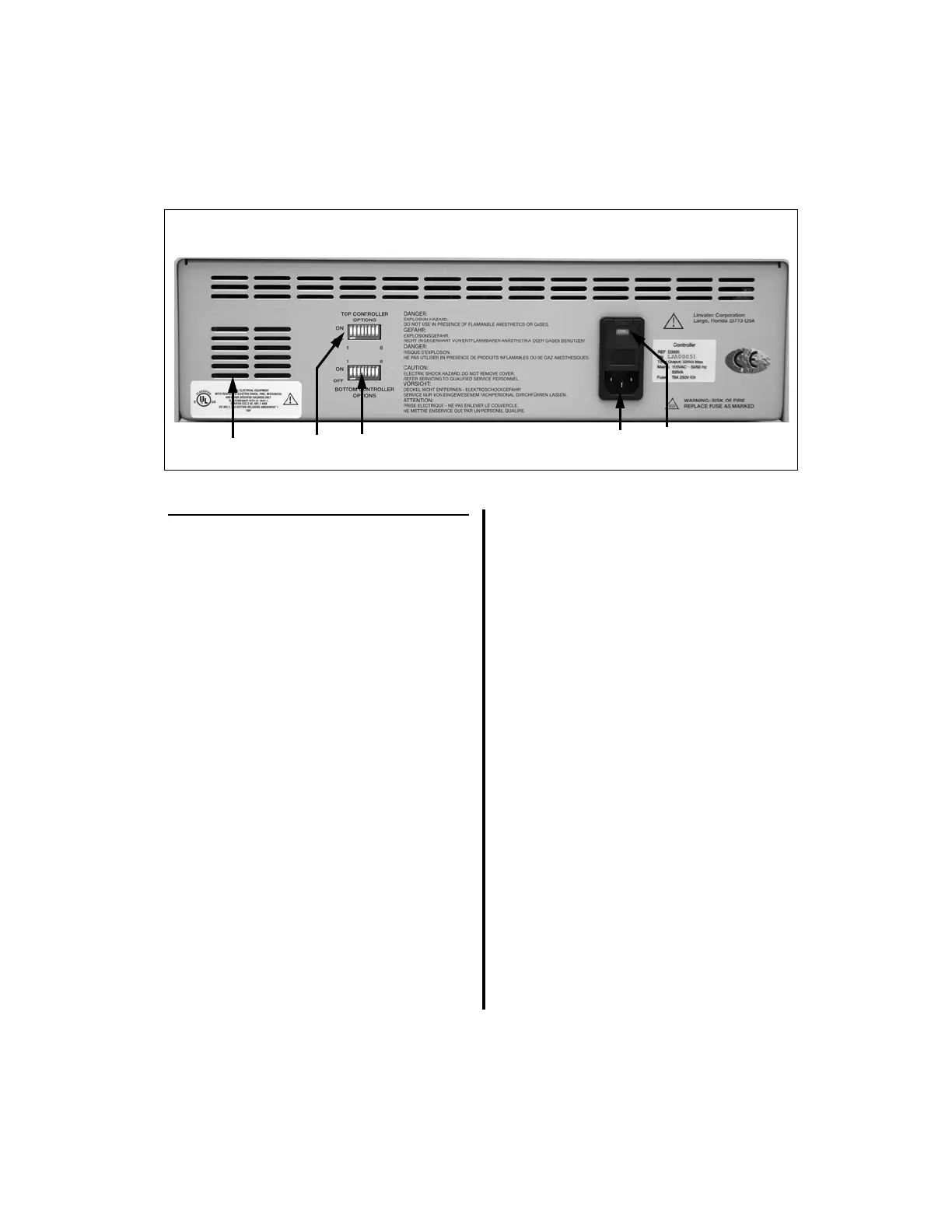

1.6.3 Advantage Controller Back Panel
1. Speaker — Used for the output of audible
information.
2. “TOP CONTROLLER OPTIONS”
Switches — Used to set specific controller
functionality settings for the top portion of
the controller; i.e., Day-to-Day Memory,
Footswitch Operating Mode, Audio Mode,
Handpiece Oscillate Operating Mode,
Window Indexing Mode, Handpiece
Default Setting Mode, and Handpiece
Button Enable/Disable Mode (See “2.1.3
Controller Options/Function Switches
and Settings” on page 36).
3. “BOTTOM CONTROLLER OPTIONS”
Switches — Used to set specific controller
functionality settings for the bottom portion
of the controller; i.e., Day-to-Day Memory,
Handpiece Oscillate Operating Mode,
Default or Swiss Handpiece Operating
Mode, and Display Mode (See “2.1.3
Controller Options/Function Switches
and Settings” on page 36).
4. Mains Receptacle — Accepts the supplied
hospital grade power cable to provide AC
power.
5. Voltage Selection Means — Used to set
the controller to the appropriate voltage
source (See “4.4 Fuse Replacement and
Voltage Selection Means” on page 130 for
more information). NOTE: Does not apply
to the model D3000J controller.
