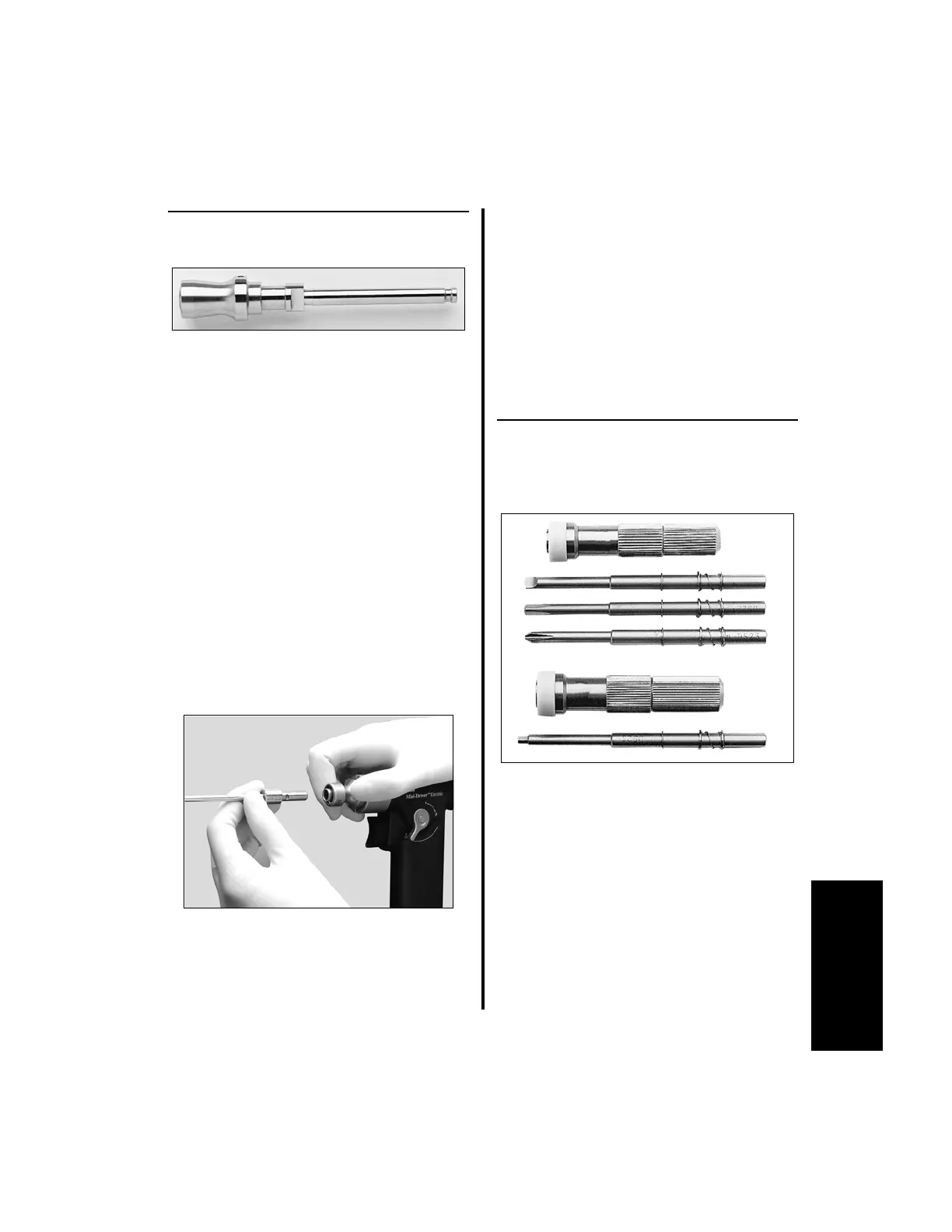

3.10.6 Trinkle Chuck Attachment (K112)
This attachment is designed to drive drill bits,
automatic screwdrivers, and other accessories
with Trinkle fittings.
Specifications:
1. To attach a Trinkle Chuck attachment,
reference “3.10.2 Connecting/Removing
Attachments” on page 102).
2. To insert a Trinkle Shank accessory into the
Trinkle Chuck attachment:
(a) Pull the locking sleeve chuck back.
Insert the accessory and release the
locking sleeve.
(b) Ensure the attachment is secure by
pulling it outward.
(c) Ensure the accessory is securely seated
in the attachment before use by pulling
outward on it.
3. To remove accessory, pull back the locking
sleeve chuck and remove the accessory.
3.10.6.1 Automatic Screwdrivers for
the Trinkle Chuck Attachment
(D520/D524)
1. Screwdriver (D520)
2. Slotted Bit (D521)
3. Cruciate Bit (D522)
4. Phillips Bit (D523)
5. Screwdriver (D524)
6. Hex Bit for AO type screws (D525)
Through Cannulation: 4.0 mm
(0.156 in.)
(5/32 in.)
