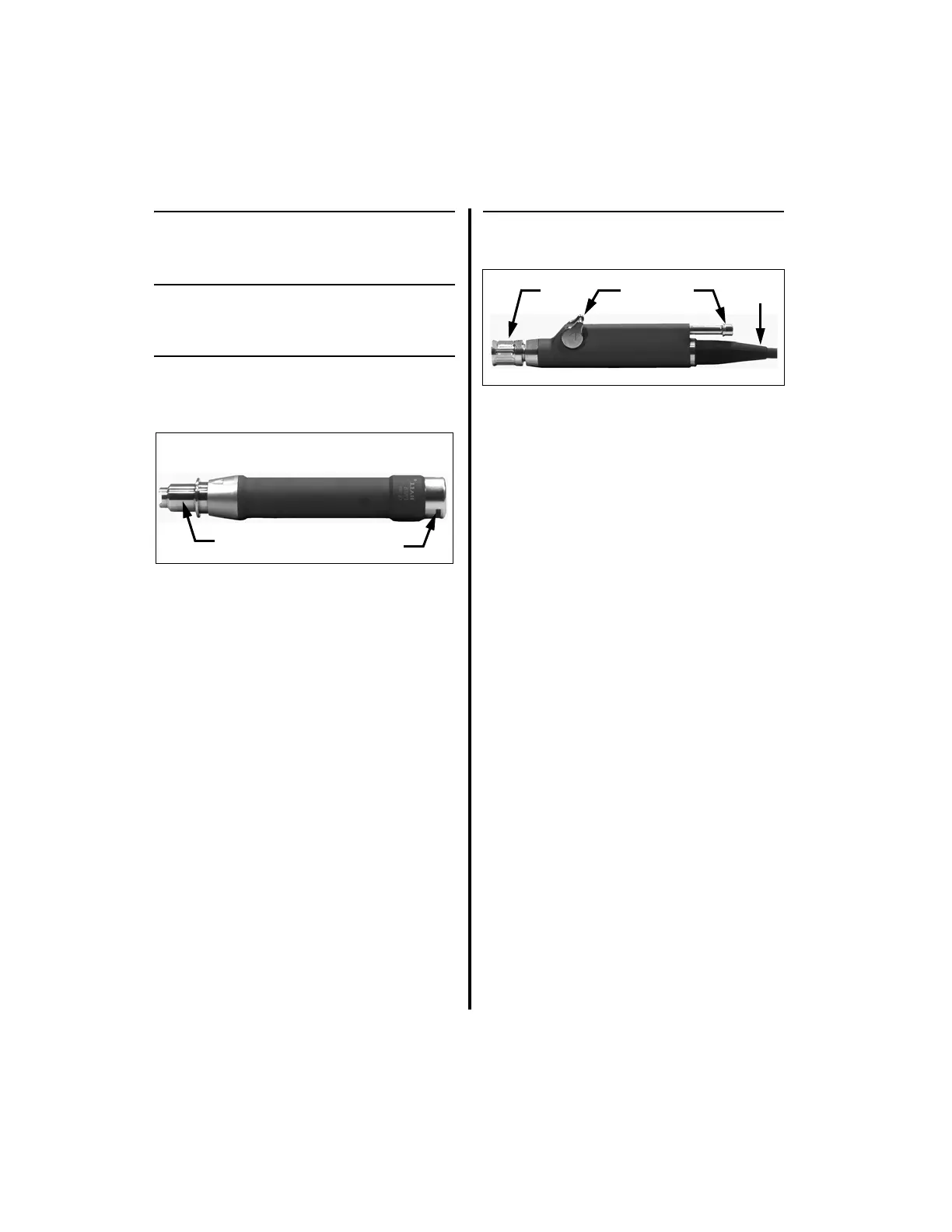

1.7 Handpieces
1.7.1 GROUP 1 HANDPIECES
1.7.1.1 Cranial Perforator Drive
Handpiece (E9015)
The E9015 Cranial Perforator Drive is used to
operate clutch style cranial perforator cutters. It is
equipped with a Hudson shank chuck. This
handpiece can only be operated by the footswitch.
1. Hudson Chuck— Locks a perforator cutter
into place.
2. Handpiece Cord Connector — The
handpiece cord connects here to provide
power to the handpiece. Uses the MC5056
or MC5057 Handpiece Cords.
1.7.1.2 High Speed Shaver (E9005)
The E9005 High Speed Shaver Handpiece is a
balanced, lightweight, sealed assembly designed
to operate shaver blades and burs for resection
of bone and soft tissue (Use only Series A, E, N,
and appropriate C shaver blades and burs).
A maximum operating speed of 10,000 rpm in
forward and reverse and 5,000 rpm in
single-turn and multi-turn oscillate are
attainable [See “2.1.3.6 Switch 4 - Oscillate
Mode Selection (Shaver Handpieces Only)”
on page 42]. This handpiece can only be
operated by the footswitch.
1. Locking Collet — Provides simple and fast
insertion and removal of a shaver blade or
bur. The collet allows the shaver blade to be
inserted in any position.
2. Suction Port Valve — Manually controls
suction flow.
3. Suction Port — Connects to the suction
line for aspiration.
4. Integrated Handpiece Cord — Attaches
the handpiece to the controller.
