1.7.2 GROUP 2 HANDPIECES
1.7.2.1 MicroChoice Drills and Saws
1. Bur Lock Collar — Rotate to lock or
unlock a bur.
2. Blade Collet — Holds the blade in place.
3. Blade Lock Collar — Rotate to open or
lock the blade collet.
4. Collet Lock Mechanism — Locks a blade
into place.
5. Activation Lever — Depress to operate
the handpiece. The activation lever can be
removed for leverless operation (Reference
“3.5.4 Leverless Handpiece Operation”
on page 87).
6. Safe/Run Slide — Place in the “SAFE”
position prior to inserting or removing
attachments and/or accessories (blades,
bits, burs) and when the handpiece is not in
use. Place in the “RUN” position to activate
the handpiece.
7. Handpiece Cord Connector — The
handpiece cord connects here to provide
power to the handpiece. Uses the MC5056
or MC5057 Handpiece Cords.
NOTE: The Low Speed Drill can only be
operated by the footswitch and will not
operate on the bottom portion of the
Advantage Controller.

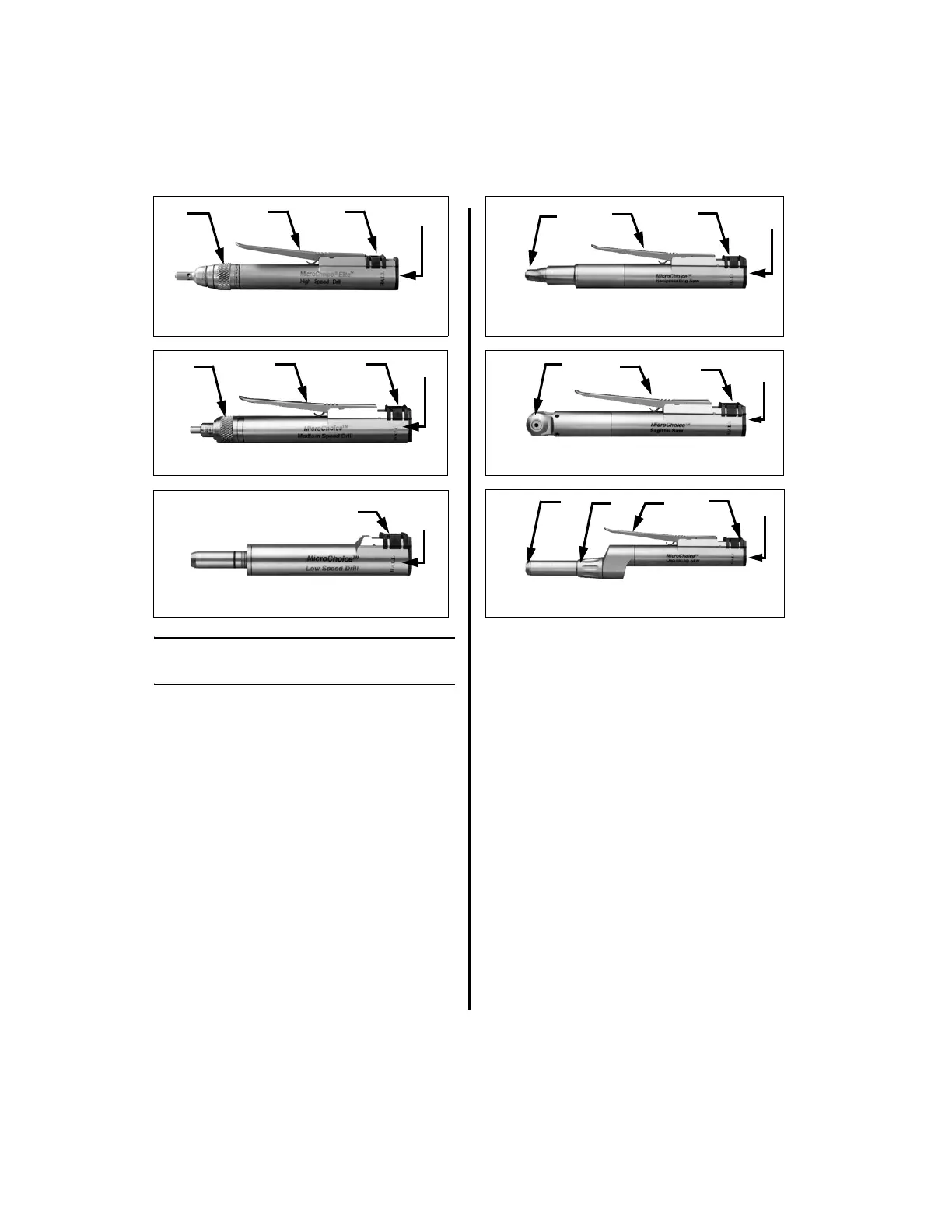

❶❺❻
Elite High Speed Drill (5020-025)
❼
❺ ❻
❸
Reciprocating Saw (5020-023)
❼
❶❺ ❻
Medium Speed Drill (5020-021)
❼
❺
❻
❹
Sagittal Saw (5020-022)
❼
❻
Low Speed Drill (5020-026)
❼
Oscillating Saw (5020-024)
❷
❺ ❻ ❼❸
