1.7.2.2 MicroChoice Modular
Handpiece (5020-027)
The MicroChoice Modular Handpiece is
designed to be used as an all-purpose driver for
reaming, drilling, wire and pin driving, and,
with proper attachments will perform sawing
applications. This handpiece is designed to
accept all the attachments starting on page 88.

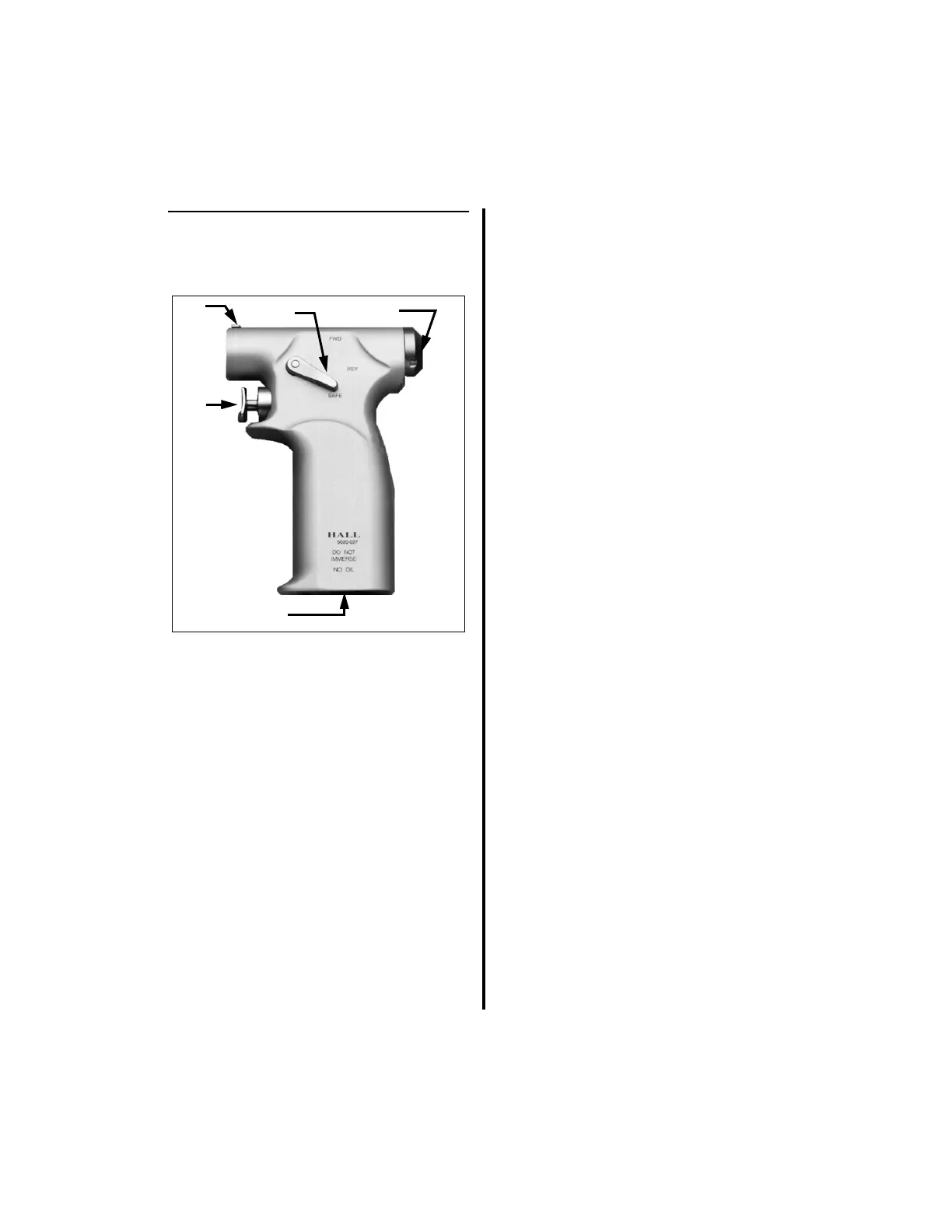

1. Attachment Slide-Lock — Locks
attachments in place. Slide in the direction
of the arrow to remove attachment.
2. Thumb Lever — Used to place the
handpiece in the safe mode or an operating
mode. Place in the “SAFE” position prior to
connecting or removing any attachment or
accessory and during non-use of the
handpiece. Place in the “FWD” position to
operate in the forward direction. Place in
the “REV” position to operate in the reverse
direction.
3. Wireguard Receptacle — Insert a wire
through this receptacle. Will also accept a
wire guard accessory (5053-123) to prevent
long wires from bending.
4. Activation Trigger — Used to activate the
handpiece. Depress when the thumb lever is
in the “FWD” or “REV” position.
5. Handpiece Cord Connector — The
handpiece cord connects here to provide
power to the handpiece. Uses the MC5056
or MC5057 Handpiece Cords.
NOTE: The Modular Handpiece does not
operate with the footswitch.
