1.7.1.3 CoolFlex High Speed Drill
(E9010)
The CoolFlex High Speed Drill is designed for
resection of bone. It incorporates an integral
angling capability that allows the surgeon to
change the angle between the main handpiece
body and the bur guard from 0° to 20° without
the use of a separate angle attachment.
This drill is used in conjunction with the E9414
or E9415A Tubing Sets to provide cooling for
the handpiece body. The E9415A Tubing Set
also provides irrigation to the surgical site. This
handpiece can only be operated by the
footswitch.
PRECAUTION: Cooling for the
handpiece body is recommended at
all times. When using the E9414
Tubing Set, the tubing line MUST be fully
primed or the handpiece will overheat, which
will cause damage to the handpiece (see
“ E9414 Tubing Set with Recirculation only:”
on page 69 for information on priming the
tubing set).

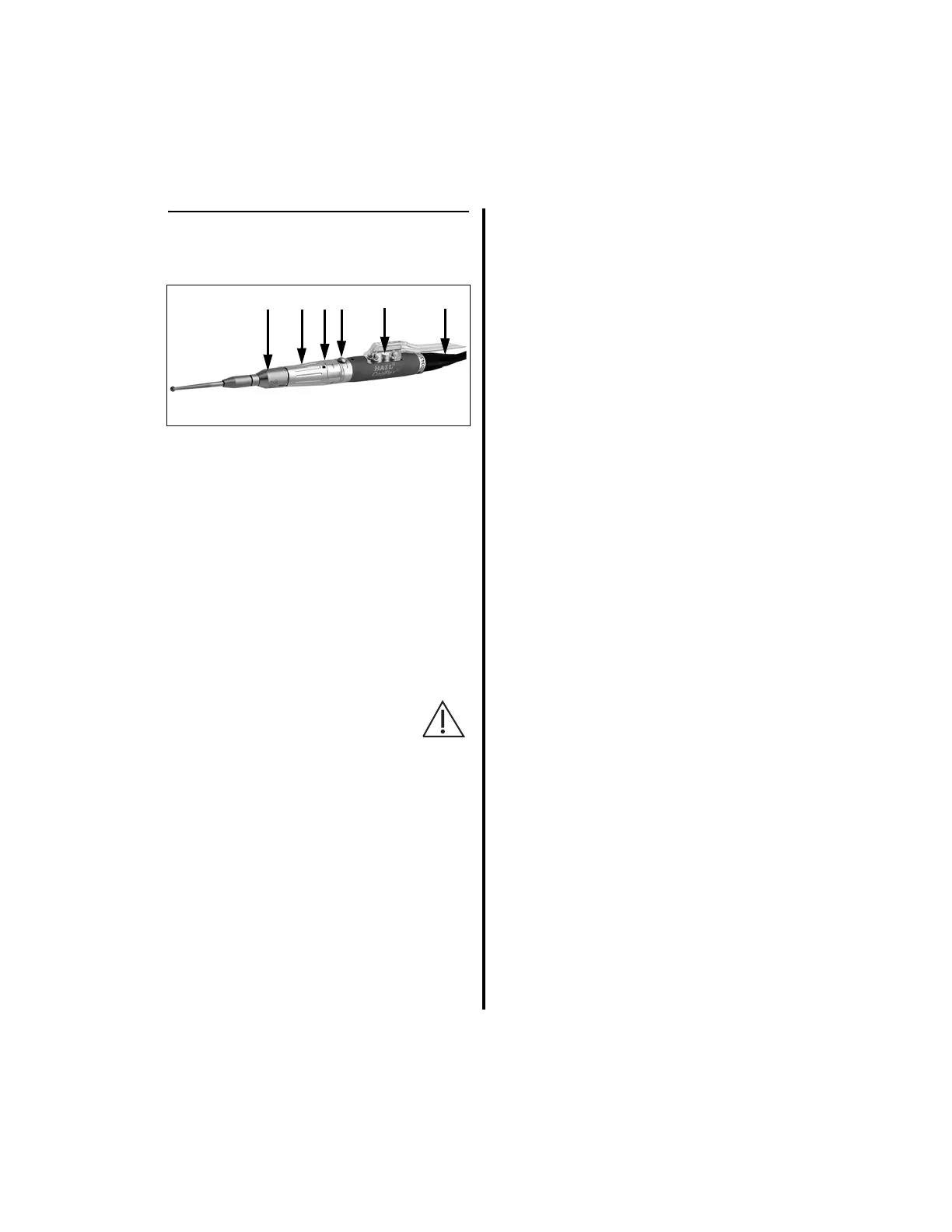

1. Guard Collet — Accepts bur guards and
neuro guards for various burs.
2. Bur Lock Collar — Twist the bur lock
collar counterclockwise to open the collet
to insert a bur. Twist clockwise to lock the
bur in place.
3. Swivel Sleeve — Twist to change the angle
of the main handpiece body and the bur
from 0° to 20°.
4. Angle Locking Button — Locks the
swivel sleeve in position. Slide the button to
unlock the swivel sleeve and rotate it to the
0° or 20° position. Once completely in
position the locking button will snap into
place and lock the swivel sleeve in the
desired angle.
5. Tubing Set Cassette Holder — Accepts
the handpiece cassette of the tubing set.
6. Integrated Handpiece Cord — Attaches
the handpiece to the controller.
