75
MICROCHOICE
HANDPIECES
C
3.4.3.1 Medium (5020-060), Long
(5020-061) and Extra-Long
(5020-062) Bur Guards
NOTE: Use only Hall Medium 5091 Series
Burs with the Medium Bur Guard, Long
5092 Series Burs with the Long Bur Guard,
and Extra-Long 5093 Series Burs with the
Extra-Long Bur Guard.

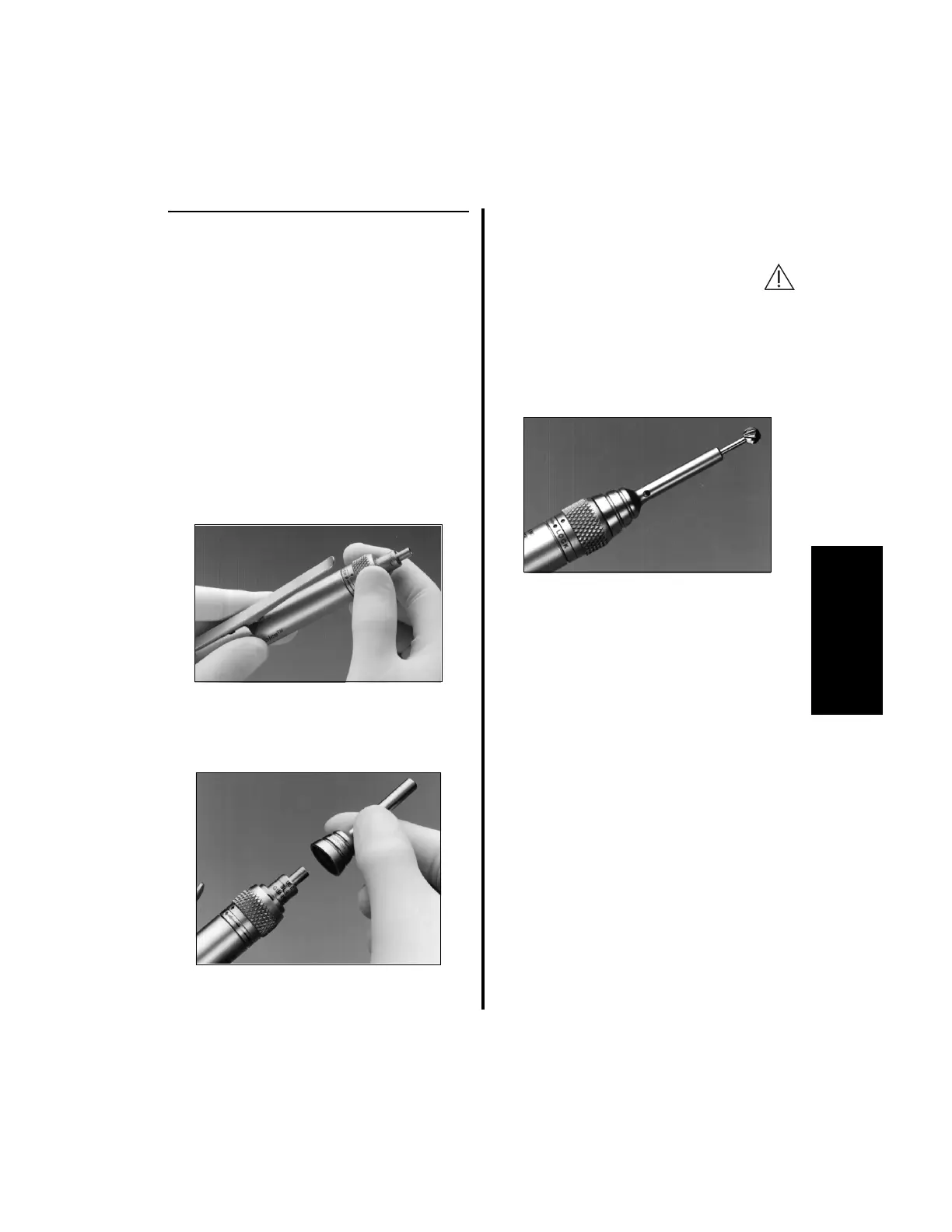

1. To fasten a bur guard and bur to the
handpiece:
(a) Rotate the handpiece bur lock collar
counterclockwise to the “OPEN”
position.
(b) Slide the appropriate bur guard over
the end of the drill. Ensure it is
completely seated.
(c) Insert the bur to the safe-line or until
the bur seats completely.
Warning: Ensure the safe-line mark
on the bur is not showing. Damage or
injury may result.
(d) Rotate the handpiece bur lock collar
clockwise until the indicator dots are
aligned in the “LOCK” position to lock
the bur into place.
(e) Pull on the bur to ensure it is locked in
place.
2. To remove the bur and guard:
(a) Twist the bur lock collar
counterclockwise to the “OPEN”
position and remove the bur and guard.
