Protocol-Based VLAN Summary
Use the Protocol-based VLAN Summary page to view information about protocol-based VLAN groups
configured on the system.
To access the Protocol-based VLAN Summary page, click LAN > Monitoring> VLAN Summary > Protocol-based
VLAN Port Summary in the navigation tree.

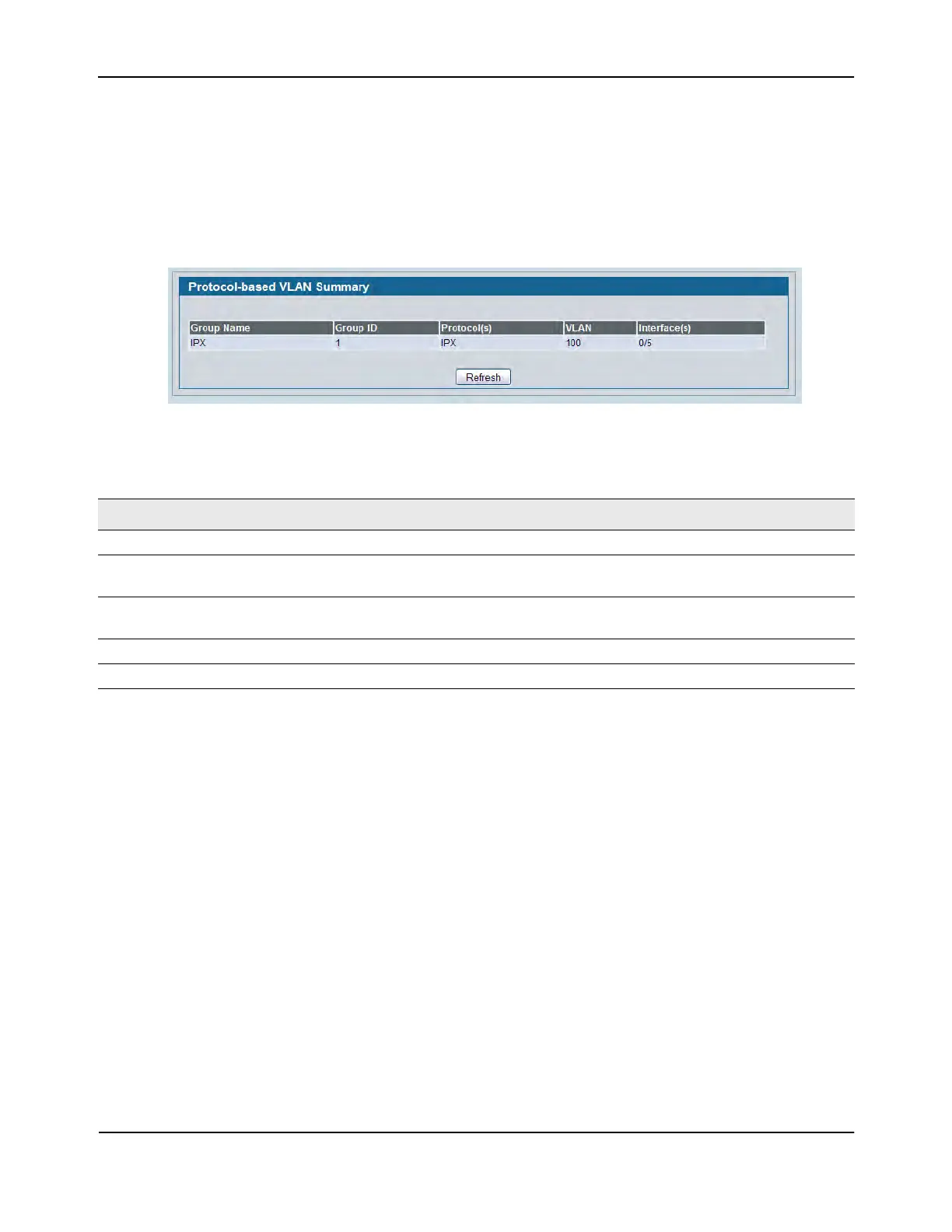

Figure 101: Protocol-based VLAN Summary
• Click Refresh to reload the page and display the most current information.
Table 87: Protocol-based VLAN Summary Fields
Field Description
Group Name Shows the user-defined name associated with protocol group.
Group ID Shows the number that identifies the group you create. Group IDs are
automatically assigned when you create a group.
Protocols Shows the protocol keyword or protocol value (hex or decimal numbers) to
associate with this group, which can be one or more of the following:
VLAN Specifies the VLAN ID associated with this group.
Interface Shows the interfaces participating in this group.
