Configuring Differentiated Services
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 351
D-Link UWS User Manual
DiffServ Service Summary
The DiffServ Service Summary page provides an overview of the policies-port associations. To display the page,
click LAN > Monitoring > Differentiated Services > Service Summary in the navigation menu.

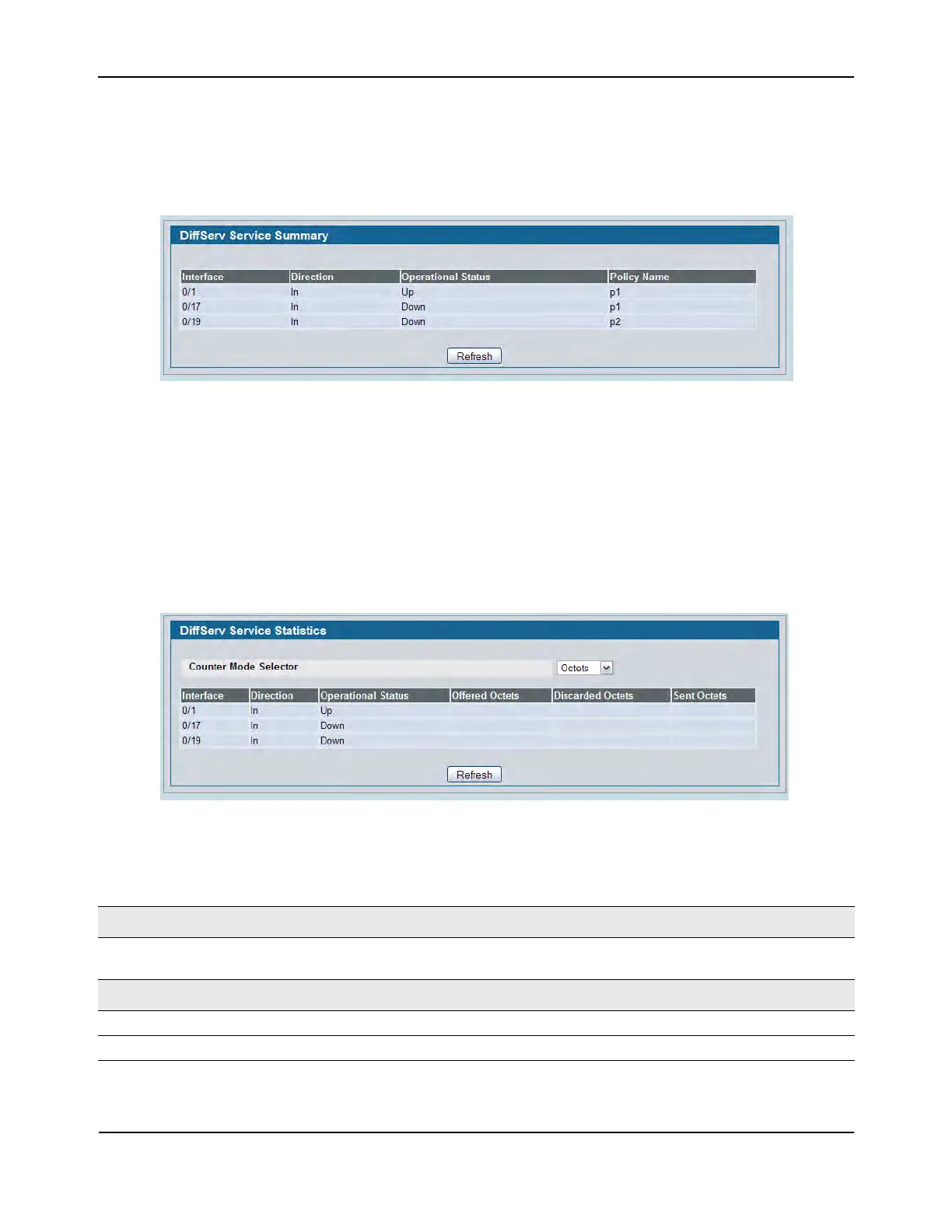

Figure 234: Service Summary
Service Statistics
Use the Service Statistics page to display service-level statistical information about all interfaces that have
DiffServ policies attached.
To display the page, click LAN > Monitoring > Differentiated Services > Service Statistics in the navigation
menu.
Figure 235: Service Statistics
Table 209: Service Statistics Fields
Field Description
Counter Mode Selector Use the menu to determine the format of the displayed counter values, which
must be either Octets or Packets. The default is Octets.
Service Statistics
Interface Shows the interface for which service statistics are to display.
Direction Shows the direction of packets for which service statistics display.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
