D-Link DWL-6600AP User Manual

Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 538
D-Link UWS User Manual
WDS Group Link Statistics Summary
The WDS Group Link Statistics Summary page displays summary information about the packets sent and
received on the WDS links.

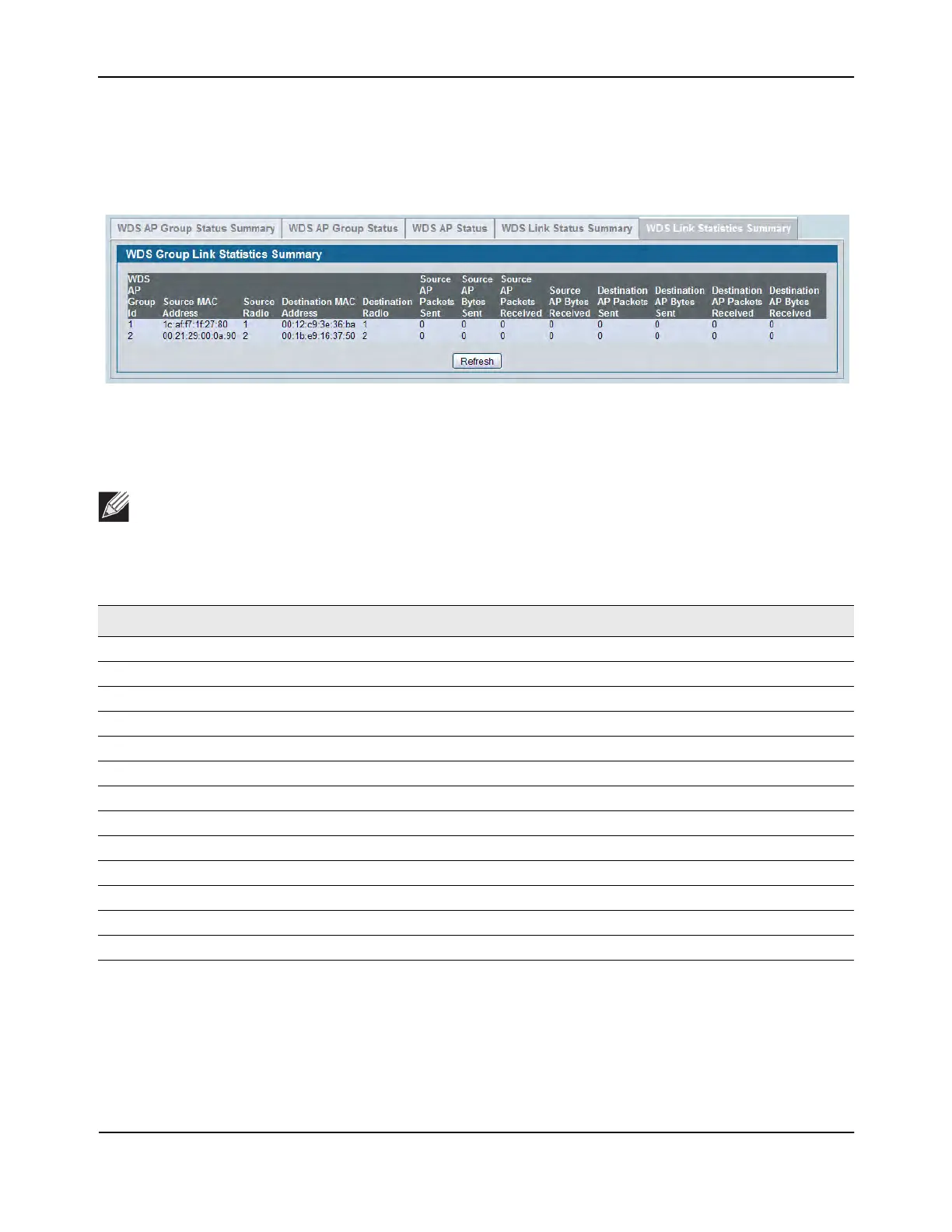

Figure 355: WDS Group Link Statistics Summary
The following table describes the fields on the WDS AP Link Status Summary page.
Command Buttons
The page includes the following button:
• Refresh — Updates the page with the latest information.
Note: The WDS links are bidirectional. The terms Source and Destination simply reflect the WDS link
endpoints specified in the WDS group configuration.
Table 323: WDS Group Link Statistics Summary
Field Description
WDS AP Group ID The group number that identifies the configured WDS AP group.
Source MAC Address The MAC address of one end-point of the WDS link
Radio Source The radio number of the WDS link endpoint on the source AP.
Destination MAC Address The MAC address of the Source AP in the group.
Destination Radio The radio number of the WDS link endpoint on the destination AP.
Source AP Packets Sent Number of packets sent by the source AP.
Source AP Bytes Sent Number of bytes sent by the source AP.
Source AP Packets Received Number of packets received by the source AP.
Source AP Bytes Received Number of bytes received by the source AP.
Destination AP Packets Sent Number of packets sent by the destination AP.
Destination AP Bytes Sent Number of bytes sent by the destination AP.
Destination AP Packets Received Number of packets received by the destination AP.
Destination AP Bytes Received Number of bytes received by the destination AP.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
