Card Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 68
D-Link UWS User Manual
Slot Summary
The Slot Summary page displays information about the slots present in the switch.
To access the Slot Summary page, click LAN > Monitoring > Slot Summary in the navigation tree.

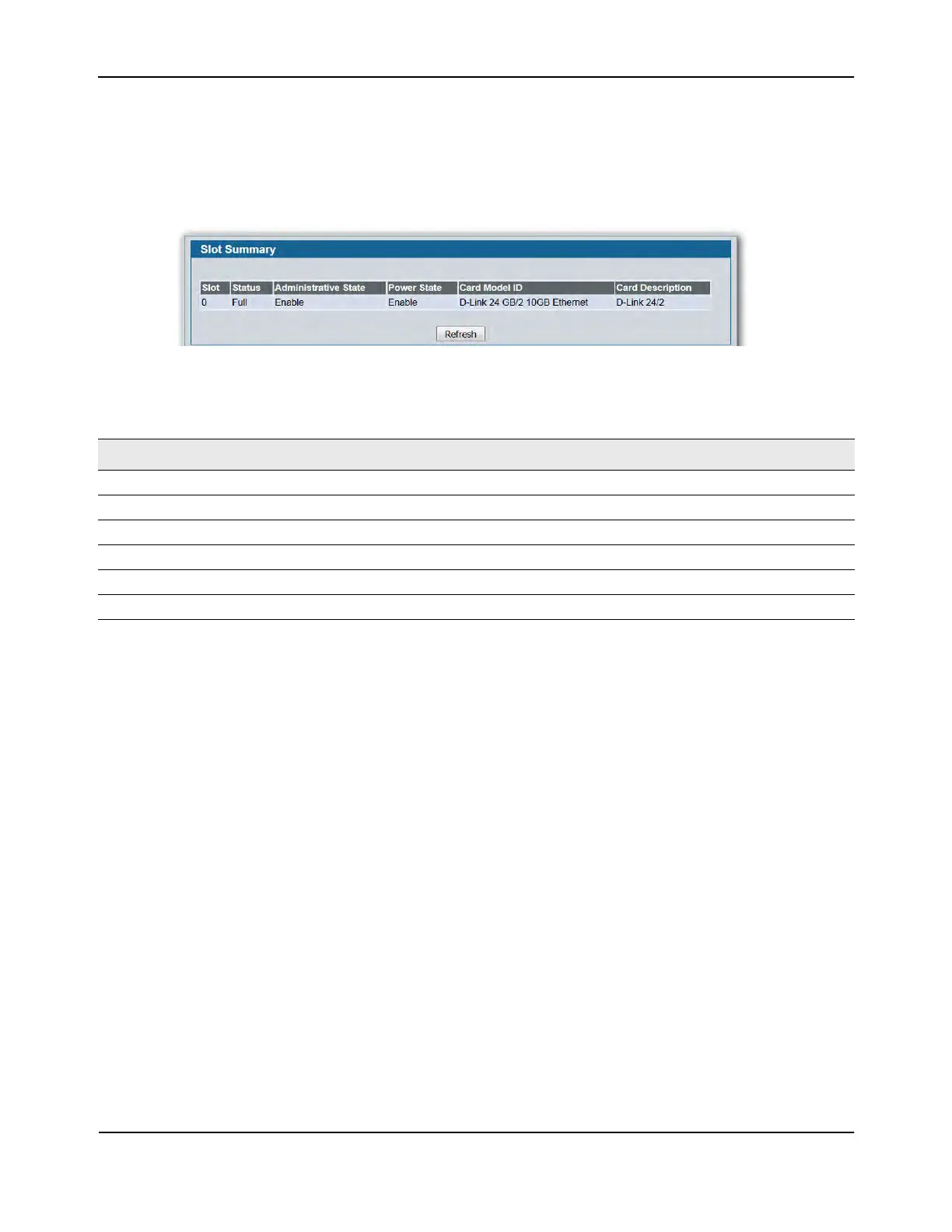

Figure 11: Slot Summary
• Click Refresh to display the most current information from the router.
Table 6: Slot Summary Fields
Field Description
Slot Identifies the slot using the format unit/slot.
Status Displays whether the slot is empty or full.
Administrative State Displays whether the slot is administratively enabled or disabled
Power State Displays whether the slot is powered on of off.
Card Model ID Displays the model ID of the card configured for the slot.
Card Description Displays the description of the card configured for the slot.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
