Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Viewing AP Triangulation Information
Triangulation information is provided to help locate the rogue client by showing which managed APs detect
the each device discovered through the RF Scan. Up to six triangulation entries are reported for each AP
detected through the RF Scan: three entries by non-sentry APs and three entries by sentry APs. Since an AP
may have one radio configured in sentry mode and another radio configured in non-sentry mode, the same AP
can appear in both lists. If the AP has not been detected by three APs, then the list may contain zero, one or
two entries.
To view information about another AP detected through the RF Scan, return to the main Rogue/RF Scan page
and click the MAC address of the AP with the information to view.

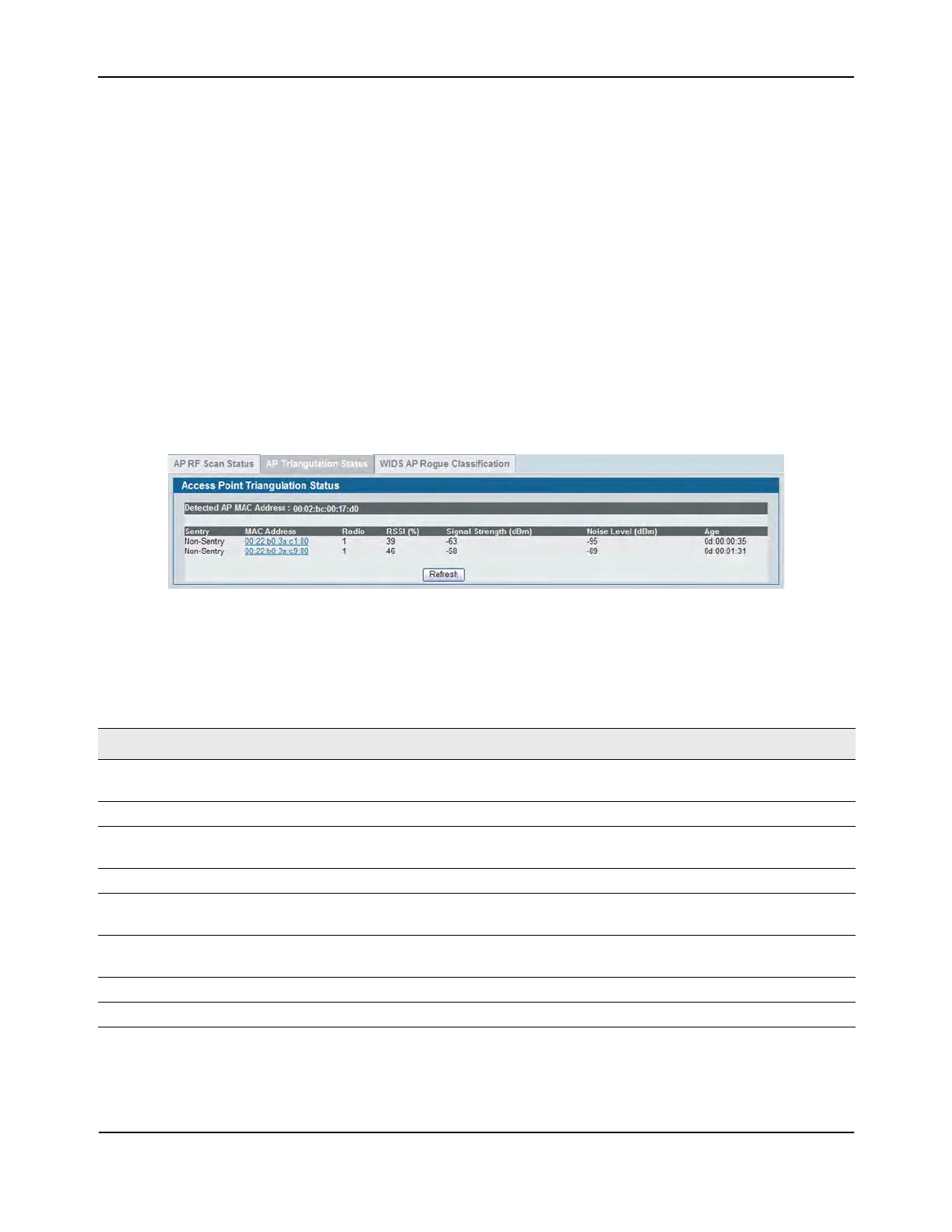

Figure 320: AP Triangulation Status
Table 289 shows the information the Access Point Triangulation Status page shows for an individual access
point.
Table 289: Access Point Triangulation Status
Field Description
Detected AP MAC
Address
The Ethernet MAC address of the detected AP. This could be a physical radio
interface or VAP MAC. For D-Link APs this is always a VAP MAC address.
Sentry Identifies whether the AP that detected the entry is in sentry or non-sentry mode.
MAC Address Shows the MAC address of the AP that detected the RF Scan entry. The address links
to the Valid AP database.
Radio Identifies the radio on the AP that detected the RF Scan entry.
RSSI Shows the received signal strength indicator in terms of percentage for the non-
sentry AP. The range is 0—100%. A value of 0 indicates the AP is not detected.
Signal Strength Received signal strength for the non-sentry AP. The range is –127 dBm to 127 dBm,
but most values are expected to range from –95 dBm to –10 dBm.
Noise Level Noise reported on the channel by the non-sentry AP.
Age Time since this AP was last detected in an RF scan.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
