Managing LLDP
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 263
D-Link UWS User Manual
• Click Refresh to update the page with the most current information.
• Click Clear to clear the LLDP statistics of all the interfaces.
Local Device Information
Use the LLDP Local Device Information page to view the data that each port advertises through LLDP.
To display the LLDP Local Device Information page, click LAN > Monitoring > LLDP Status > Local Device
Information in the navigation tree.

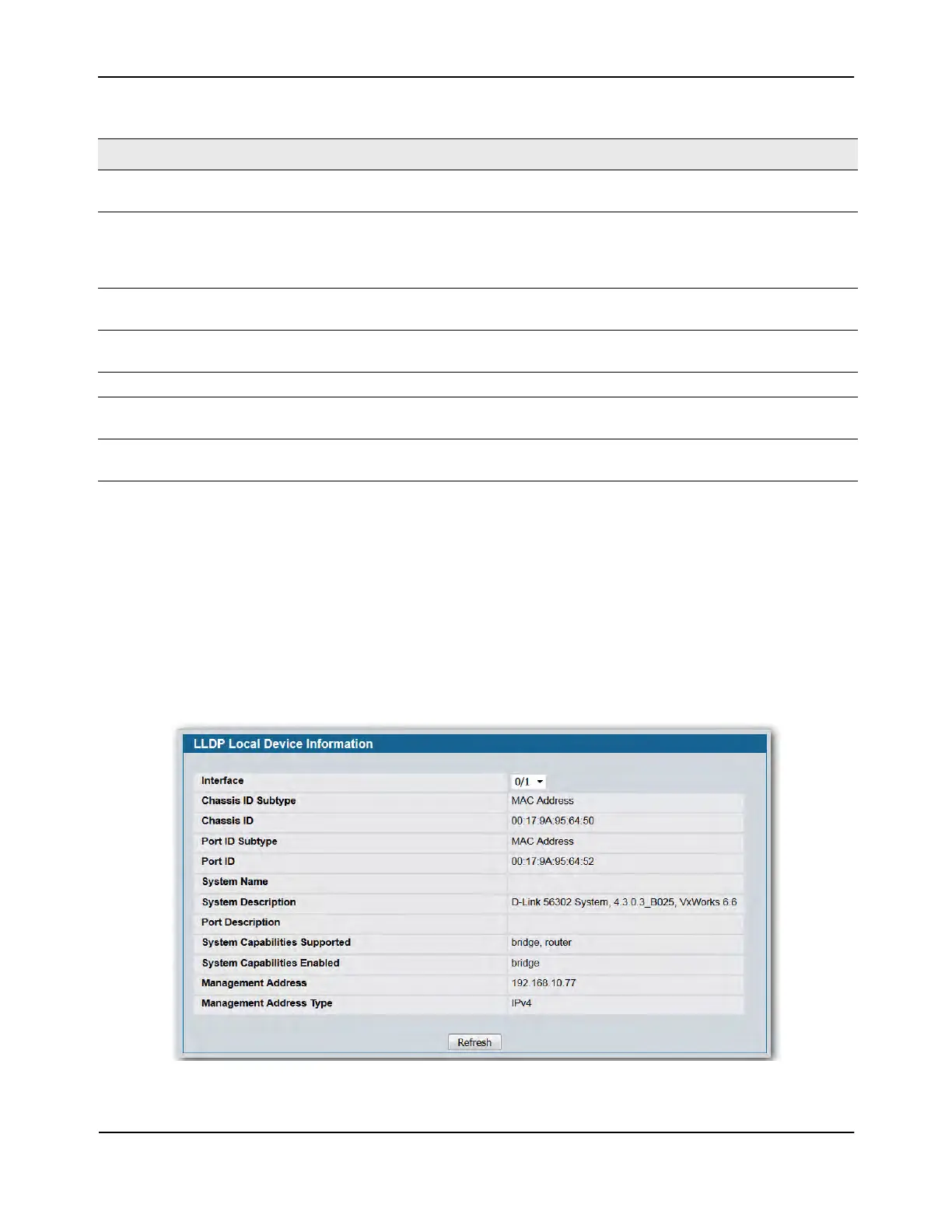

Figure 162: LLDP Local Device Information
Errors Displays the number of invalid LLDP frames received by the LLDP agent on the
corresponding port, while the LLDP agent is enabled.
Ageouts Displays the number of age-outs that occurred on a given port. An age-out is the number
of times the complete set of information advertised by a particular MAC Service Access
Point (MSAP) has been deleted from tables associated with remote entries because the
information timeliness interval had expired.
TLV Discards Displays the number of LLDP TLVs (Type, Length, Value sets) discarded for any reason by
the LLDP agent on the corresponding port.
TLV Unknowns Displays the number of LLDP TLVs received on the local ports which were not recognized
by the LLDP agent on the corresponding port.
TLV MED Displays the total number of LLDP-MED TLVs received on the local ports.
TLV 802.1 Displays the total number of LLDP TLVs received on the local ports which are of type
802.1.
TLV 802.3 Displays the total number of LLDP TLVs received on the local ports which are of type
802.3.
Table 144: LLDP Statistics Fields (Cont.)
Field Description

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
