D-Link DWL-6600AP User Manual

Multiple Port Mirroring
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 91
D-Link UWS User Manual
Adding a Port Mirroring Session
1. From the LAN > Administration > Multiple Port Mirroring page, click Add Source Port to display the Add
Source Port page.

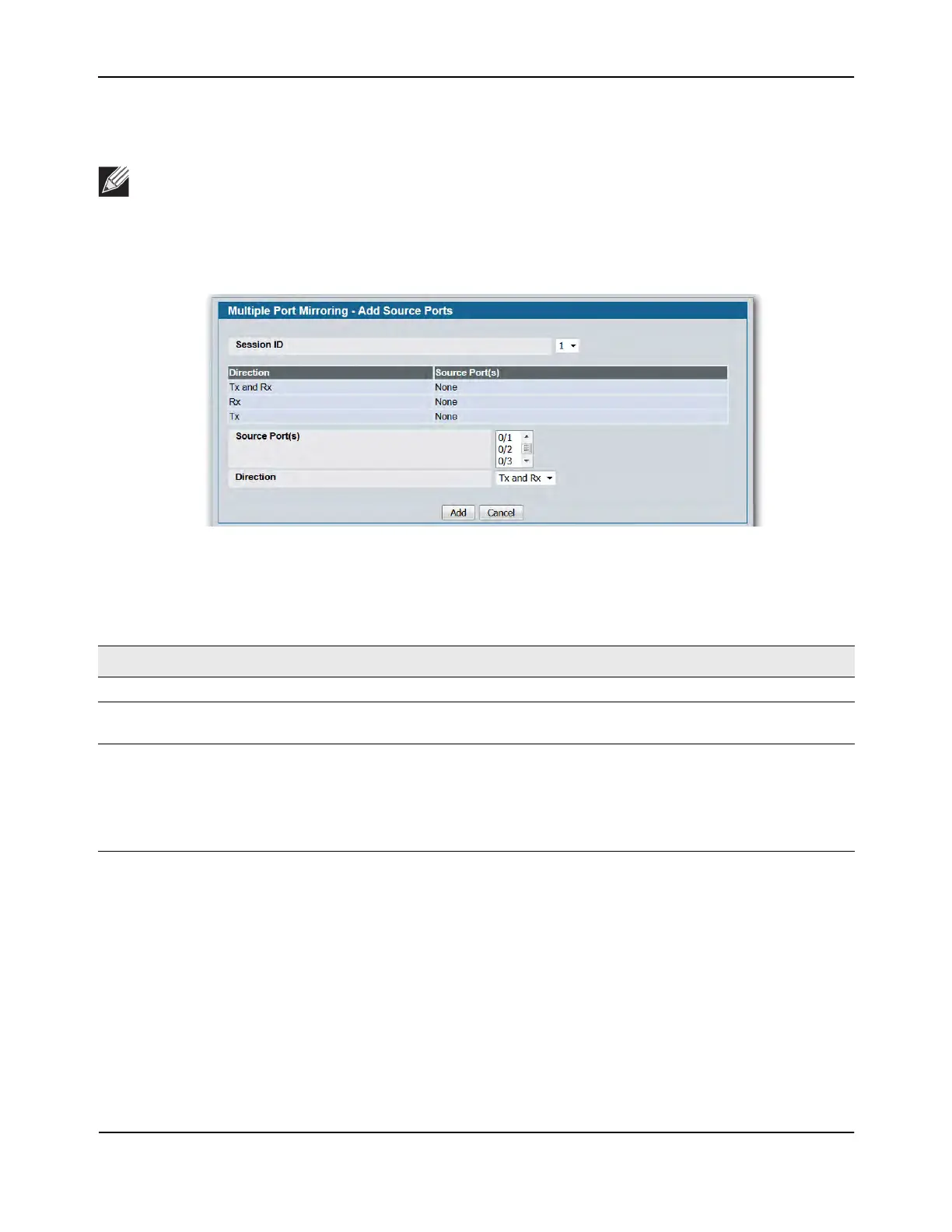

Figure 25: Multiple Port Mirroring—Add Source Ports
2. Configure the following fields:
3. Click Add to apply the changes to the system.
The new port mirroring session is enabled for the unit and port, and the device is updated. The source port
appears in the Source Port list on the Multiple Port Mirroring page.
Note: A Port will be removed from a VLAN or LAG when it becomes a destination mirror.
Table 20: Multiple Port Mirroring—Add Source Fields
Field Description
Session ID Specifies the monitoring session.
Source Port(s) Select the unit and port from which traffic is mirrored. Up to eight source
ports can be mirrored to a destination port.
Direction Select the type traffic monitored on the source port, which can be one of the
following:
• Tx: Monitors transmitted packets only.
• Rx: Monitors received packets only.
• Tx and Rx: Monitors transmitted and received packets.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
