Monitoring Status and Statistics
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 461
D-Link UWS User Manual
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Viewing Peer Switch Managed AP Status
The Peer Switch Managed AP Status page displays information about the APs that each peer switch in the
cluster manages. Use the menu above the table to select the peer switch with the AP information to display.
Each peer switch is identified by its IP address.

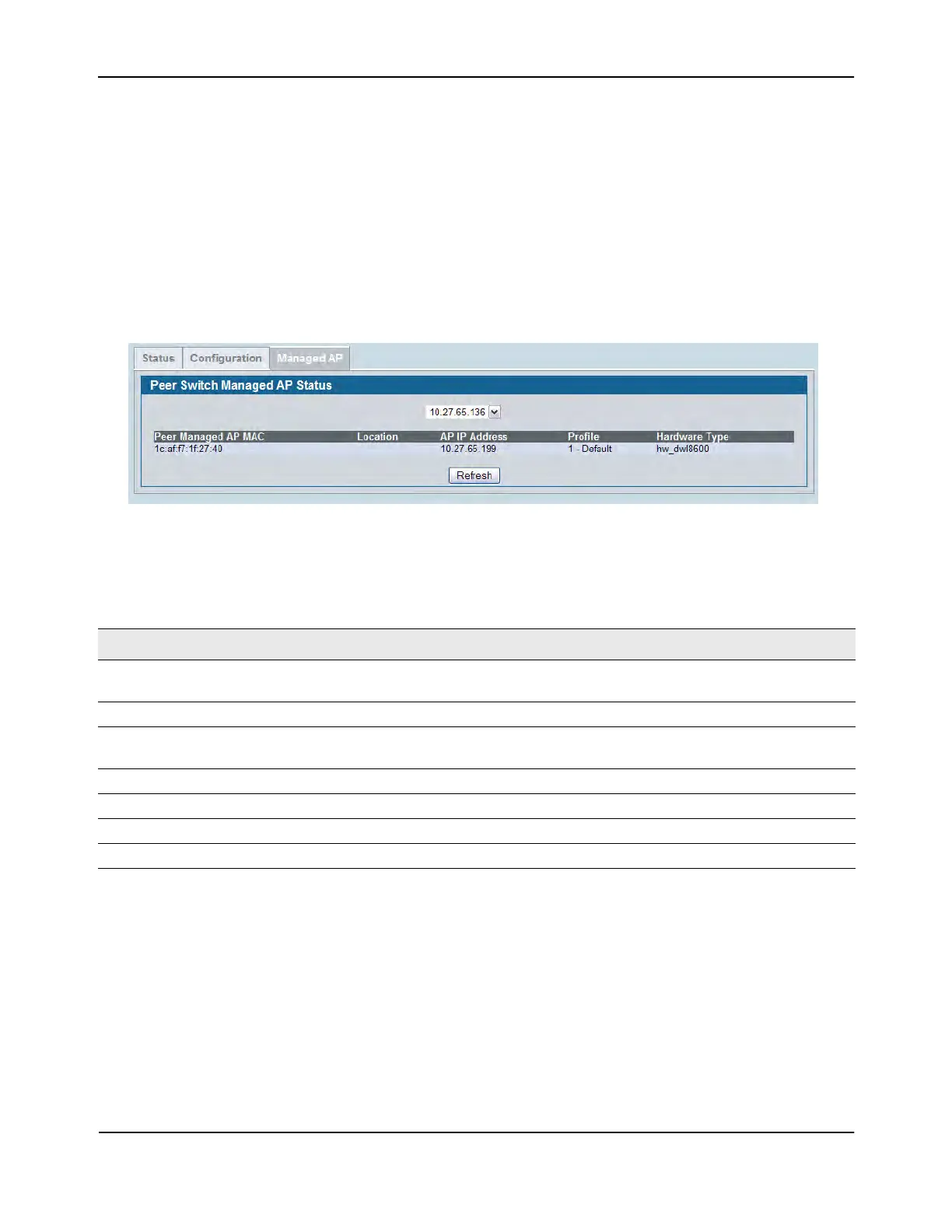

Figure 312: Peer Switch Managed AP Status
Table 267 describes the fields available on the Peer Switch Managed AP Status page.
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Table 267: Peer Switch Managed AP Status
Field Description
Switch Selector Select the IP address of the peer switch with the information to view or select All to
view information about all APs managed by peer switches in the cluster.
Peer Managed AP MAC Shows the MAC address of each AP managed by the peer switch.
Peer Switch IP Address Shows the IP address of the peer switch that manages the AP. This field displays
when All is selected from the drop-down menu.
Location The descriptive location configured for the managed AP.
AP IP Address The IP address of the AP.
Profile The AP profile applied to the AP by the switch.
Hardware Type The Hardware ID associated with the AP hardware platform.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
