D-Link DWL-6600AP User Manual

RADIUS Settings
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 416
D-Link UWS User Manual
RADIUS Server Statistics
To access the RADIUS Server Statistics page, click LAN > Monitoring > RADIUS Statistics > Server Statistics in
the navigation menu.

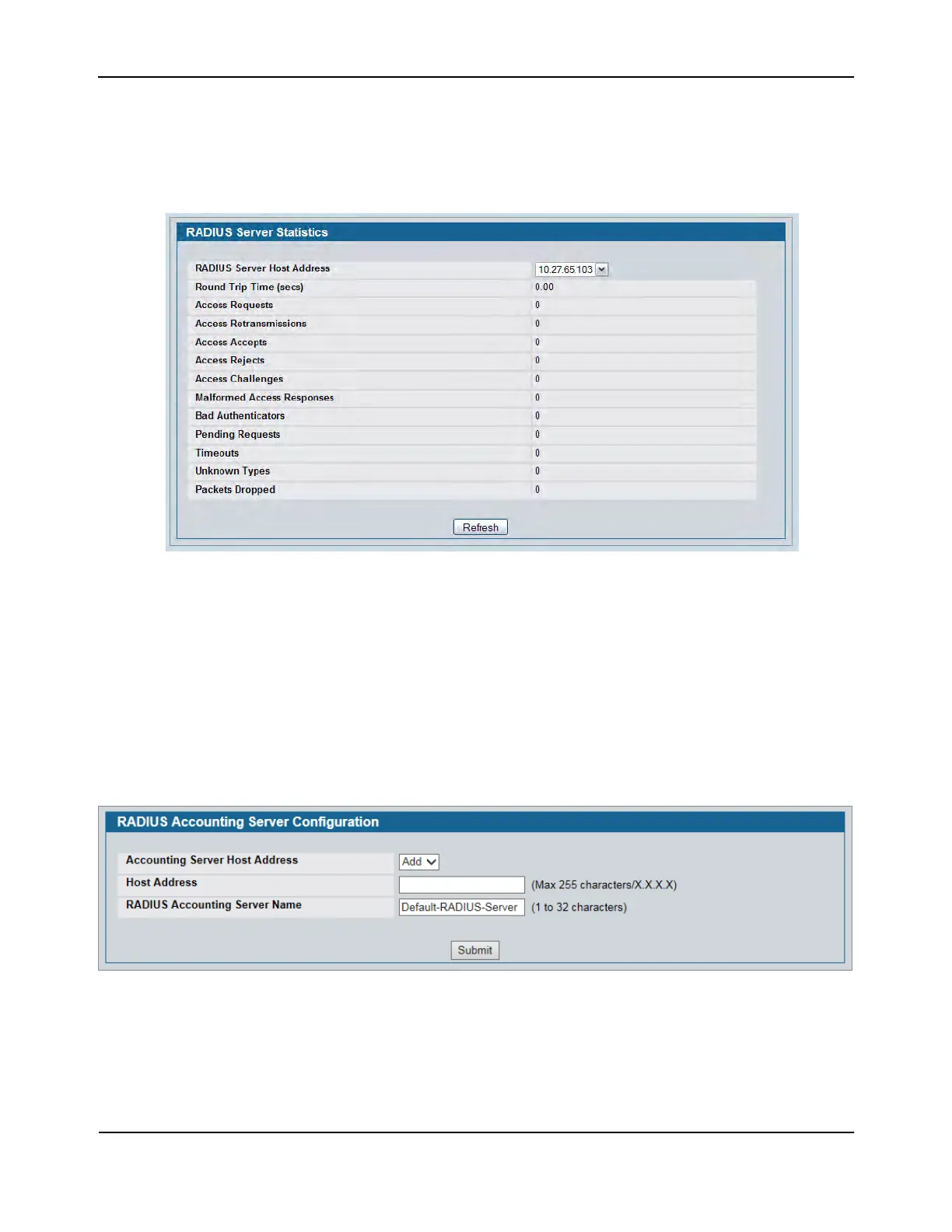

Figure 285: RADIUS Server Statistics
RADIUS Accounting Server Configuration
From the RADIUS Accounting Server Configuration page, you can add a new RADIUS accounting server,
configure settings for a new or existing RADIUS accounting server, and view RADIUS accounting server status
information. The RADIUS client on the switch supports up to 32 named authentication and accounting servers.
If there are no RADIUS accounting servers configured on the system or if you select Add from the Accounting
Server Host Address menu, a subset of the fields described in the following table are available.
Figure 286: Add RADIUS Accounting Server
After you enter the Accounting server host address and click Submit, the additional configuration fields
appear.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
