D-Link UWS User Manual
RADIUS Server Configuration
From the RADIUS Authentication Server Configuration page, you can add a new RADIUS server, configure
settings for a new or existing RADIUS server, and view RADIUS server status information. The RADIUS client on
the switch supports up to 32 named authentication and accounting servers.
To access the RADIUS Server Configuration page, click LAN > Security > RADIUS > RADIUS Authentication
Server Configuration in the navigation menu.
If there are no RADIUS servers configured on the system, or if you select Add from the RADIUS Server Host
Address menu, a subset of the fields described in the following table are available. After you enter the RADIUS
host address and click Submit, the additional configuration fields appear.

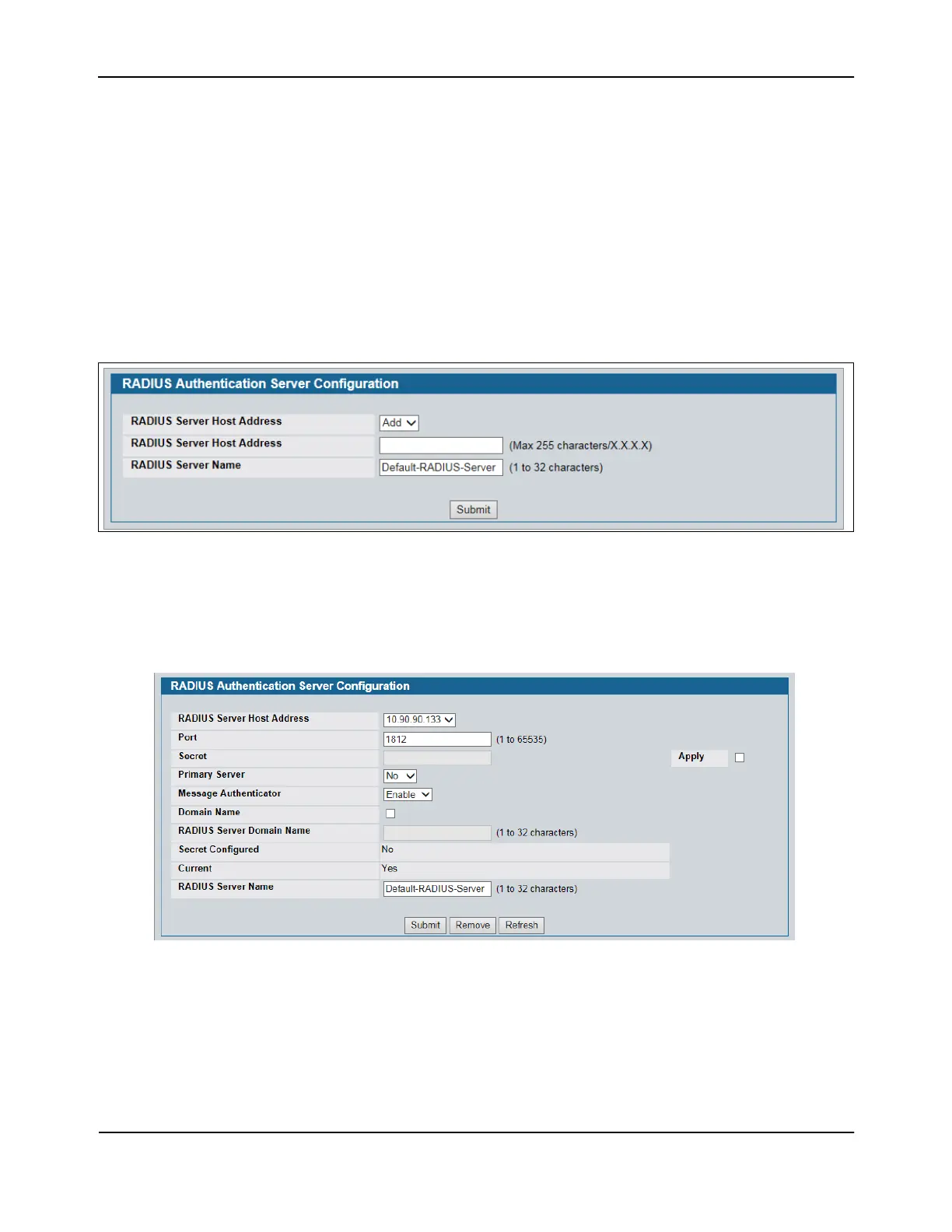

Figure 282: RADIUS Server Configuration—Add Server
If at least one RADIUS server is configured on the switch, and a host address is selected in the RADIUS Server
Host Address field, then additional fields are available on the RADIUS Server Configuration page.
Figure 283: RADIUS Server Configuration—Server Added

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
