Detecting and Preventing Wireless Intrusion
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 728
D-Link UWS User Manual

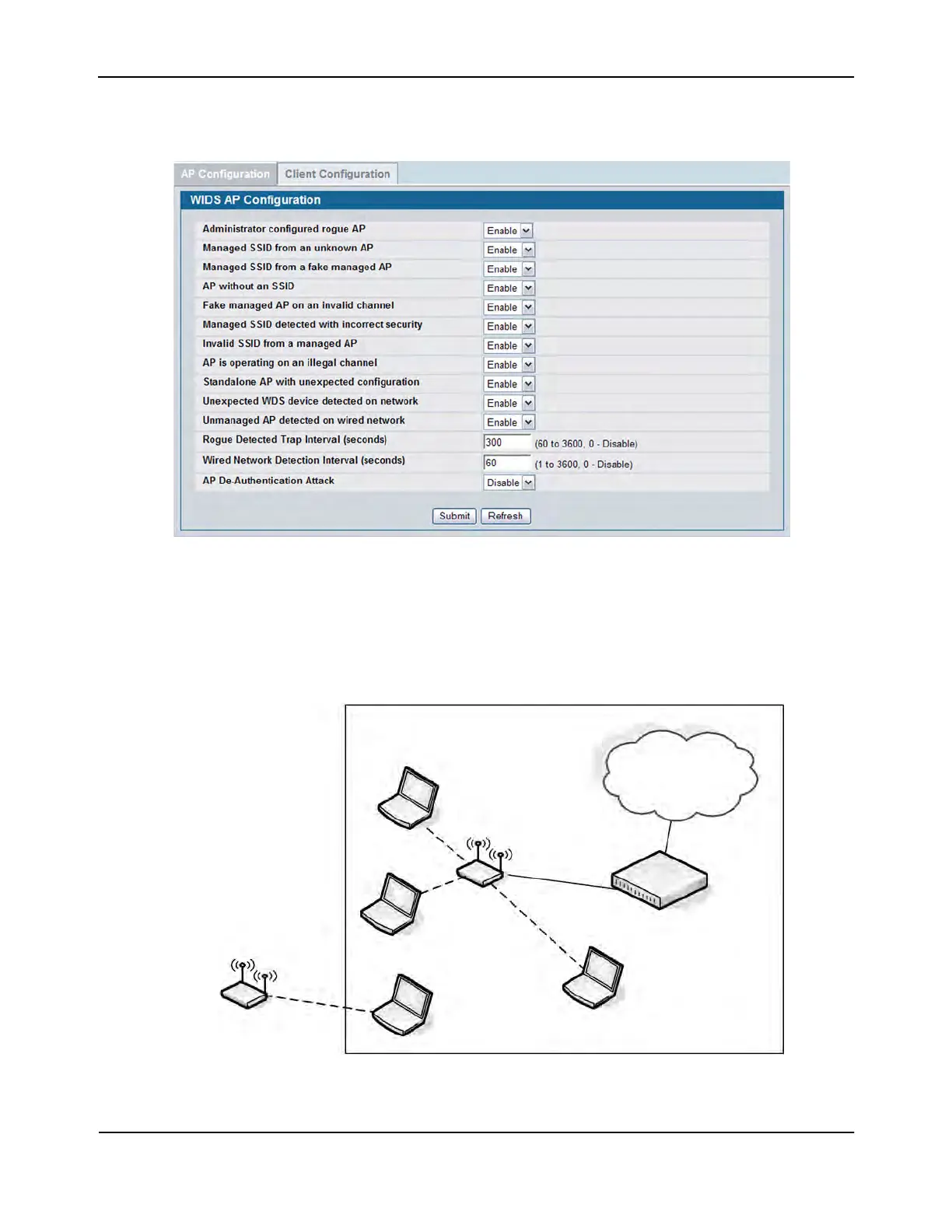

Figure 442 shows the default values on the WIDS configuration page for the AP.
Figure 442: WIDS AP Configuration
To demonstrate the WIDS and WIPS capabilities of the DWS-4000 Series switch, in this scenario a hacker has
set up a Honeypot AP in the parking lot of the company's building. This AP is configured with the SSID Corporate
to try to get valid clients from inside the company to associate to it in an attempt to gather passwords and
other confidential information that will allow the hacker to gain further access to the company's resources.
Figure 443: Honeypot AP
Honeypot AP
SSID: Corporate
Company Parking
Lot
Inside Company
LAN
Legitimate AP
SSID: Corporate

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
