D-Link DWL-6600AP User Manual

Captive Portal Configuration
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 404
D-Link UWS User Manual
Interface Status
The pages available from the Interface Status link provide information about the captive portal interfaces and
their capabilities.
Viewing Interface Activation Status
The Interface Activation Status page shows information for every interface assigned to a captive portal
instance. Use the drop-down menus to select the portal or interface for which you want to view information.

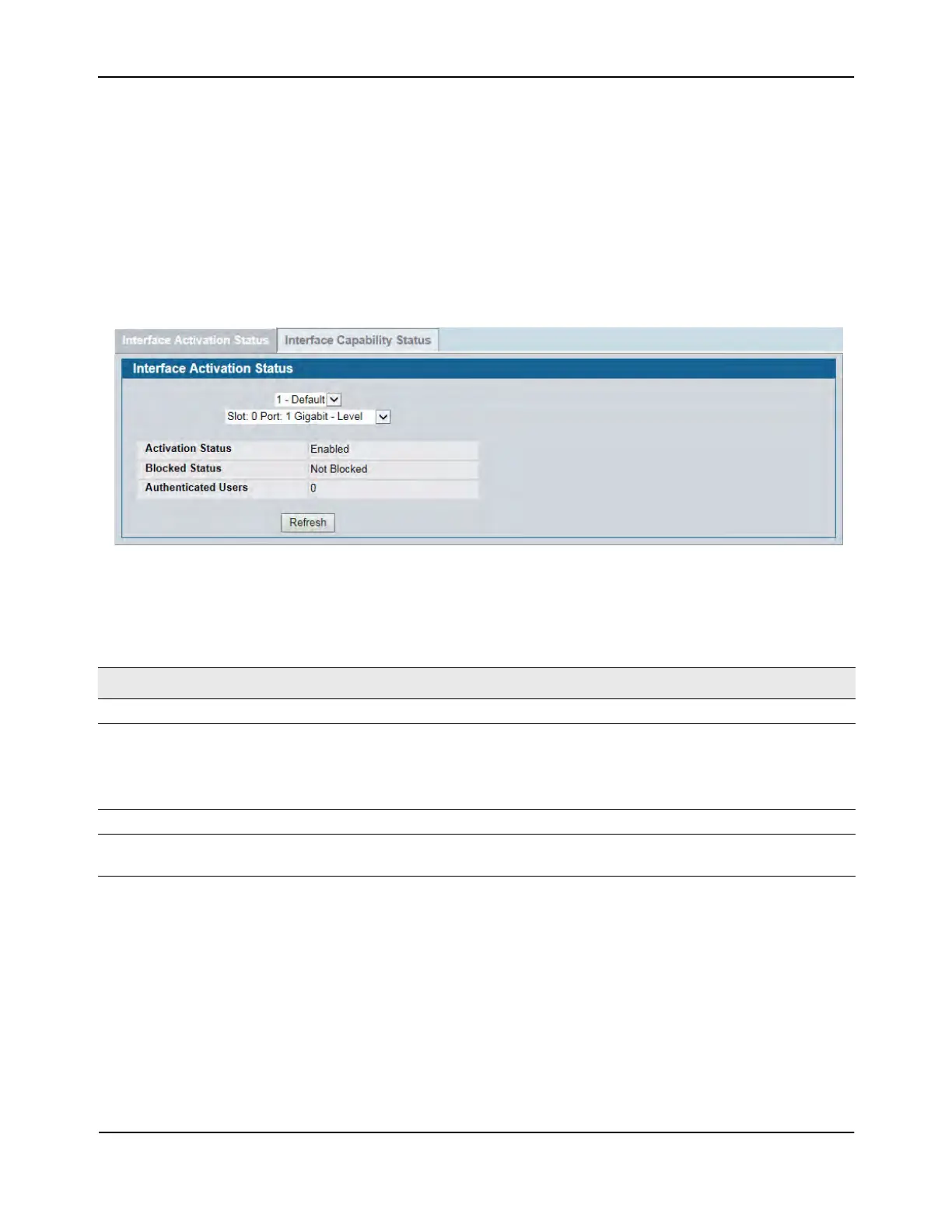

Figure 273: Interface Activation Status
The following table describes the fields on the Interface Activation Status page.
Table 234: Interface Activation Status
Field Description
Operational Status Shows whether the portal is active on the specified interface.
Disable Reason If the selected CP is disabled on this interface, this field indicates the reason, which can
be one of the following:
• Interface Not Attached
• Disabled by Administrator
Blocked Status Indicates whether the captive portal is temporarily blocked for authentications.
Authenticated
Users
Displays the number of authenticated users using the captive portal instance on this
interface.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
