Locating WLAN Devices
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 654
D-Link UWS User Manual
Managed AP Location Summary
Use the Managed AP Location Summary page to view summary information about the location of the APs in
the wireless network. The page displays the APs with a location that has been manually configured or imported
from the WLAN Visualization tool.

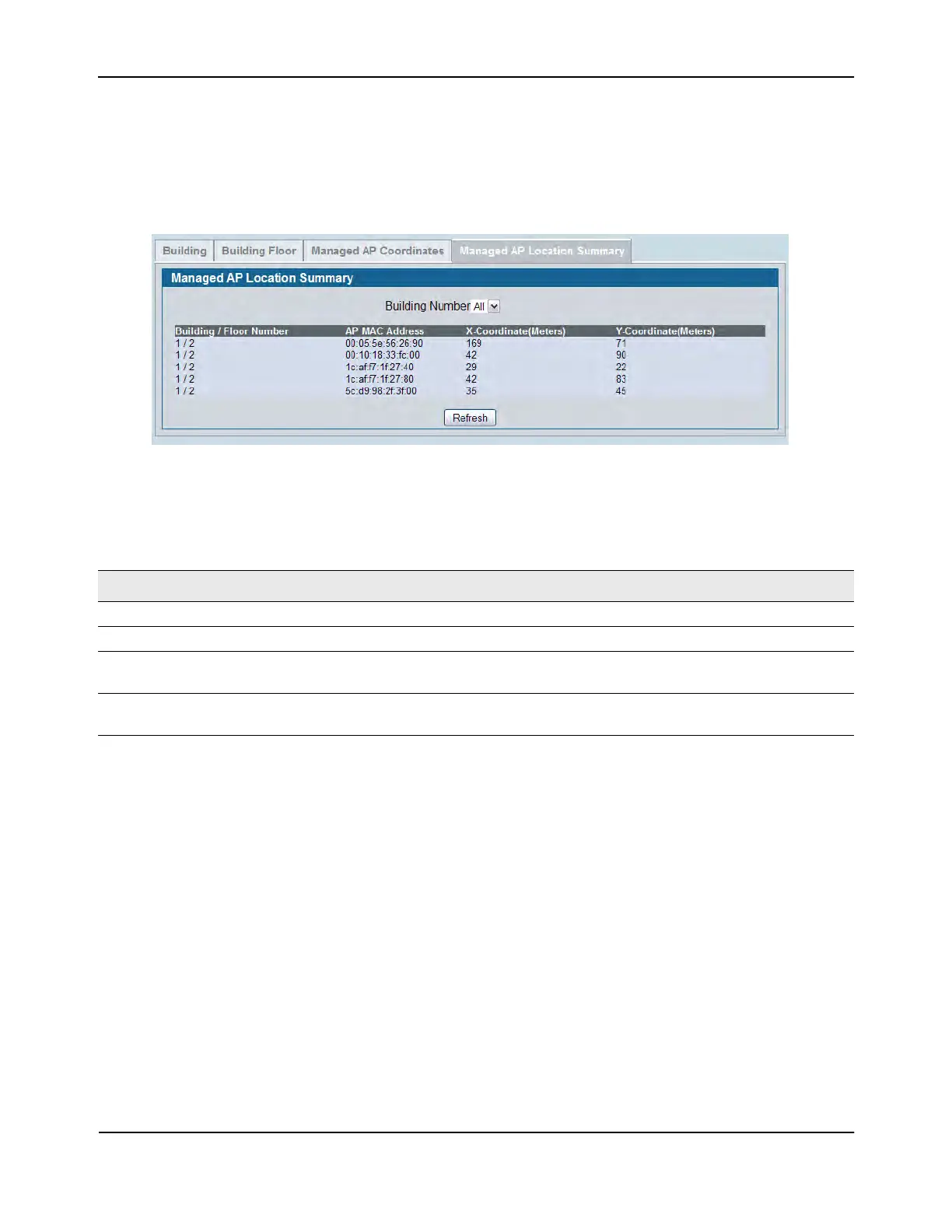

Figure 411: Managed AP Location Summary
The following table shows the fields available on the Managed AP Location Summary page.
Command Buttons
The page includes the following button:
• Refresh—Updates the page with the latest information.
Table 377: Managed AP Location Summary
Field Description
Building/Floor Number Identifies the building and floor where the AP is located.
AP MAC Address Identifies the MAC address of the AP
X-Coordinate Identifies the X axis offset of the managed AP from some arbitrary 0,0 point on
the building floor.
Y-Coordinate Identifies the Y axis offset of the managed AP from some arbitrary 0,0 point on
the building floor.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
