D-Link DWL-6600AP User Manual

Optimizing WLAN Traffic
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 722
D-Link UWS User Manual

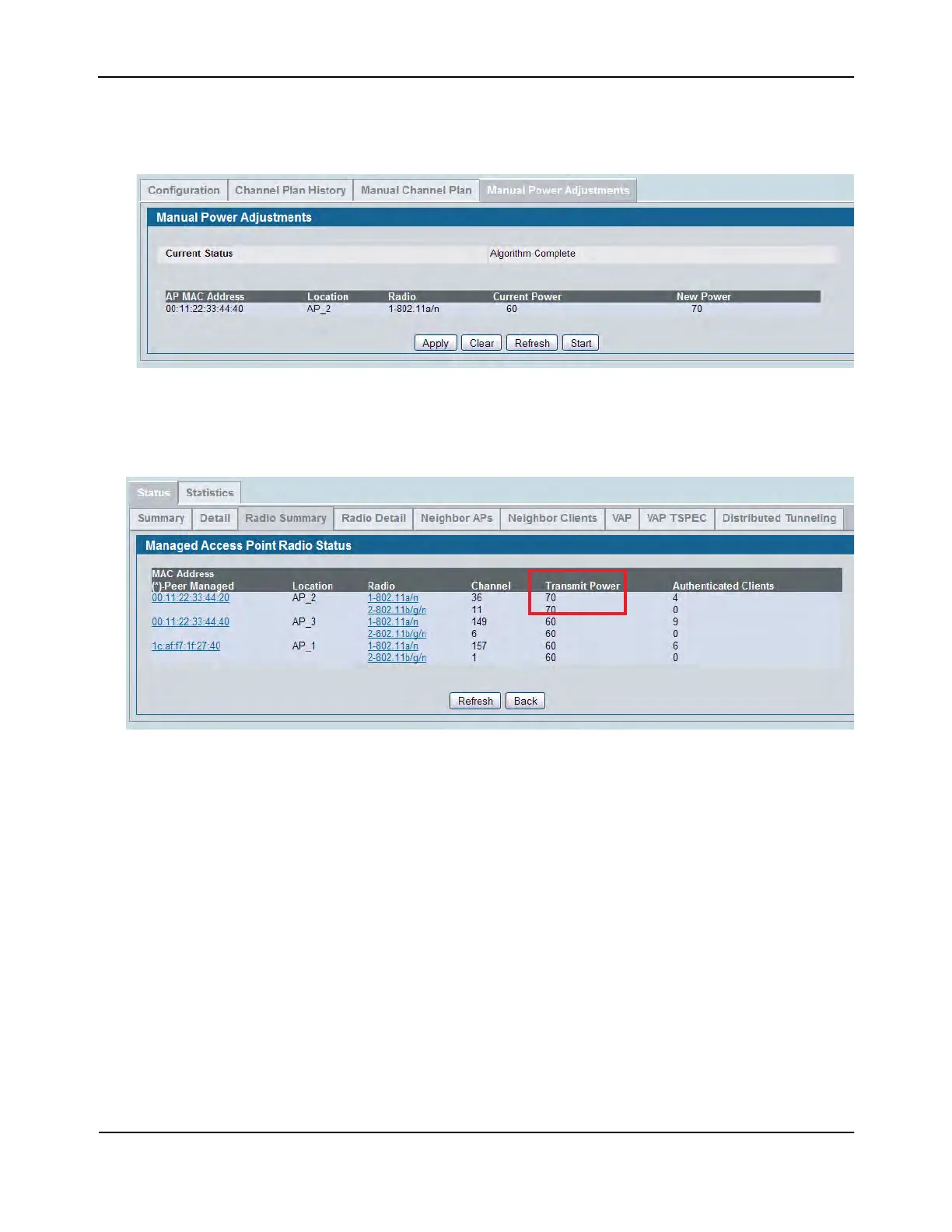

The following figure shows that the APA algorithm detected a high number of transmission errors on AP_2,
and that the power level should be increased by 10% to increase the transmission area.
10. To apply the recommendation and allow the AP to adjust its transmission power level, click Apply.
11. Verify that the power level has been adjusted by viewing the WLAN > Monitoring > Access Points >
Managed AP Status > Radio Summary page.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
