D-Link DWL-6600AP User Manual

Optimizing WLAN Traffic
D-Link Unified Wired and Wireless Access System
Oct. 2015 Page 724
D-Link UWS User Manual

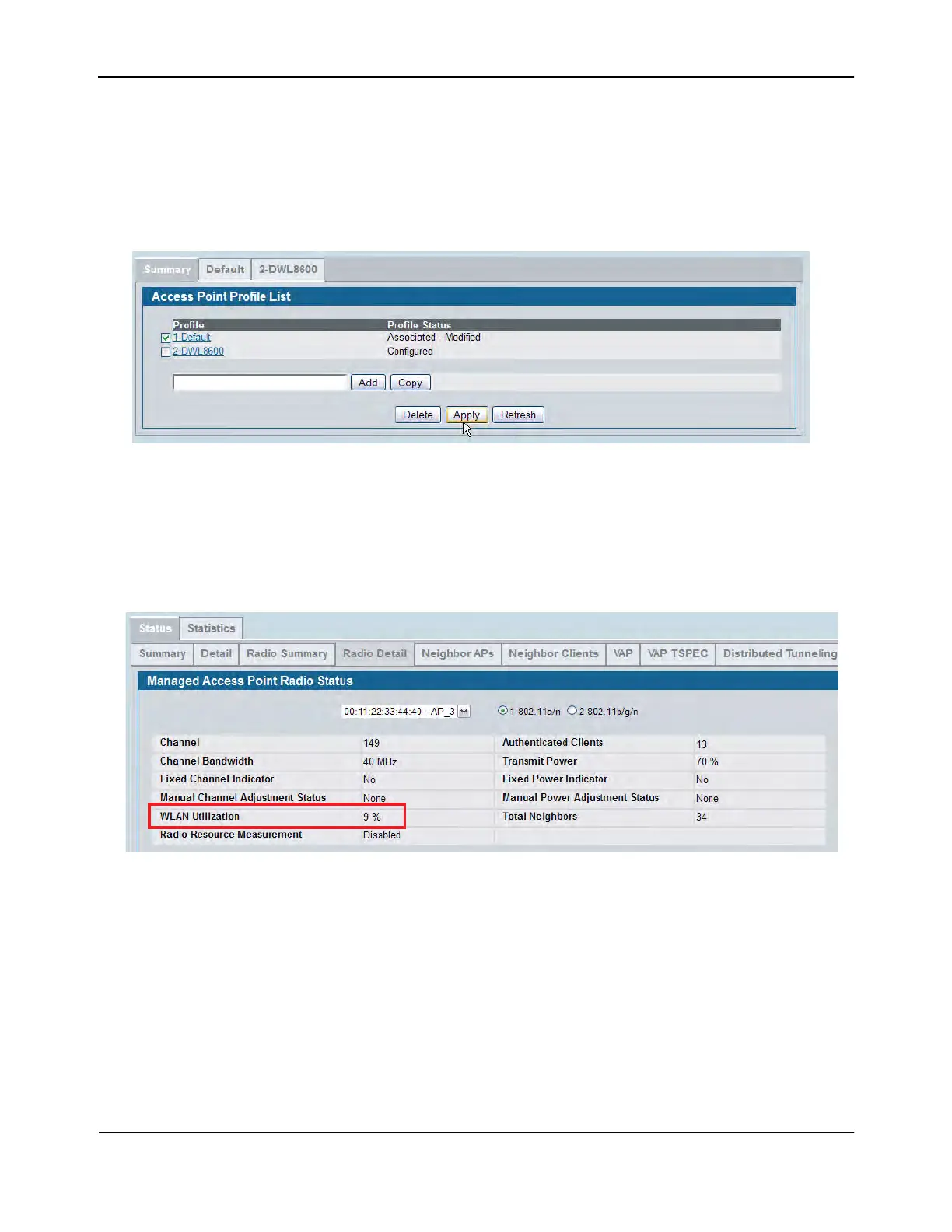

5. If the APs are already managed, use the following steps to reapply the profile so the new settings take
effect:
a. Go to the WLAN > Administration > Advanced Configuration > AP Profiles page.
b. Select the check box next to the profile you modified.
c. Click Apply.
A message appears and indicates that the AP radios will be reset, which will disassociate any associated
wireless clients. Click OK to continue.
6. To monitor the current WLAN utilization rate for a radio, go to the WLAN > Monitoring > Access Point >
Managed AP Status > Radio Detail page and select the AP (listed by MAC address) and its radio.
The WLAN Utilization field displays the current traffic load that the radio is bearing based on the total
possible percentage of traffic that the radio can handle.

D-Link DWL-6600AP Specifications

General

2.4 GHz	Yes
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	450 Mbit/s
Power consumption (typical)	9.6 W
Internal	No
Placement	Ceiling, Wall
Certification	FCC Class B, CE Class B, C-Tick
Product color	Gray
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	2
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA2

Weight and Dimensions

Depth	77.5 mm
Width	156 mm
Height	- mm
Weight	500 g
