RS20i Installation & Operating Guide Document # 9301H52900 Ver. 1.02

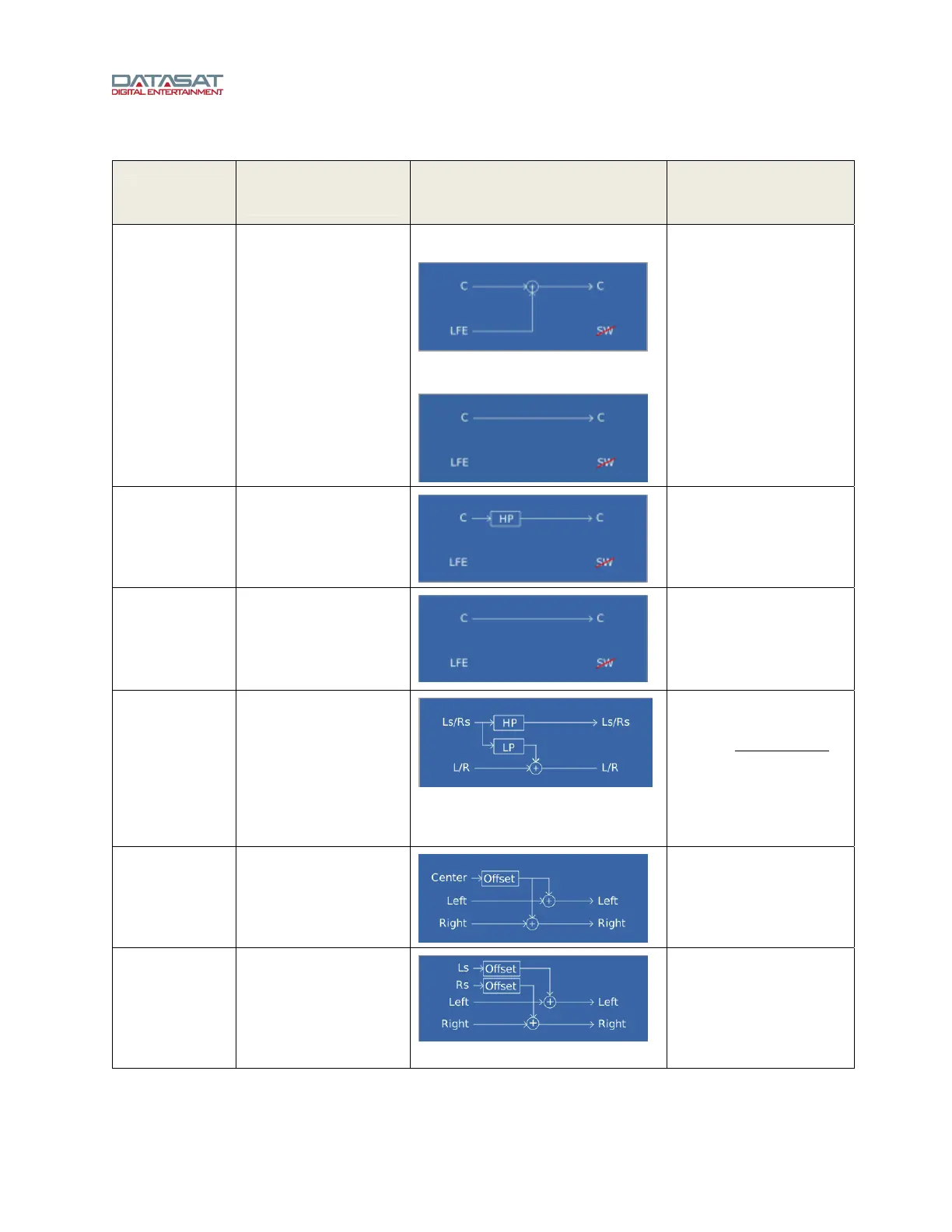

Table 29. Speaker Options with No Subwoofers
Controls
Applicable
Channels
Diagram
(replace center with applicable
channel)
Description
Large All For L/R and Ls/Rs:
For other speakers:
For L/R and/or Ls/Rs:
the LFE signal will be
added to those
speakers.
Small,
Enable High
Pass
All
No LFE added to audio
channel
High pass on channel
Small,
High Pass Not
Enabled
Center, Left/Right
.
No LFE added to
channel
Small, cross
to (other
speaker)
Depends on speaker:
C cross to L/R
Ls/Rs cross to L/R
Lb/Rb cross to L/R
HL/HR cross to L/R
HC cross to C
HLs/HRs cross to Ls/Rs
T cross to L/R/LS/RS
When this option is
used, the "other"
speaker must be large
.
If it is not, there will be
an error message in
red text displayed
below the diagram on
the screen.
Phantom
Center
Center
Center channel offset
and mixed with Left
and Right channels.
Phantom
Surround
Left Surround/
Right Surround
Left Surround offset
and mixed with Left
channel, Right
Surround offset and
mixed with the Right
channel.
